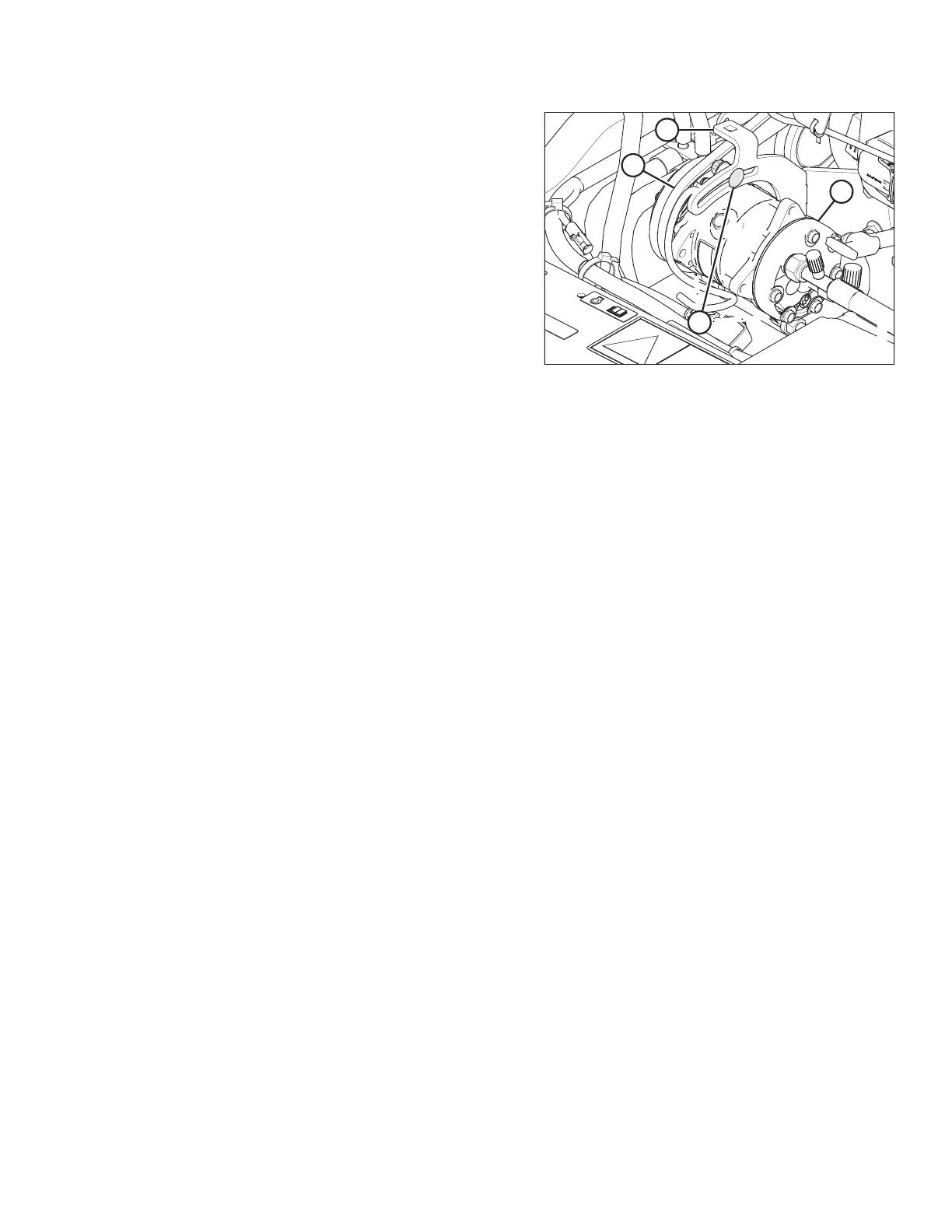

Figure 5.162: Air Conditioning (A/C) Compressor
11. Install compressor belts (C).
12. Pry compressor (B) away from engine so that a force of
45 N (10 lbf) deflects the belts (C) 5 mm (3/16 in.) at
mid-span.
NOTE:
The tab (D) on bracket can be used as support for prying.
13. Tighten compressor mounting hardware (A).
14. Recheck tension and readjust as required.
15. Close the hood. Refer to 5.3.2 Closing Hood, page 257.
