Installing Forked Caster Wheel
1019261
A
B
C

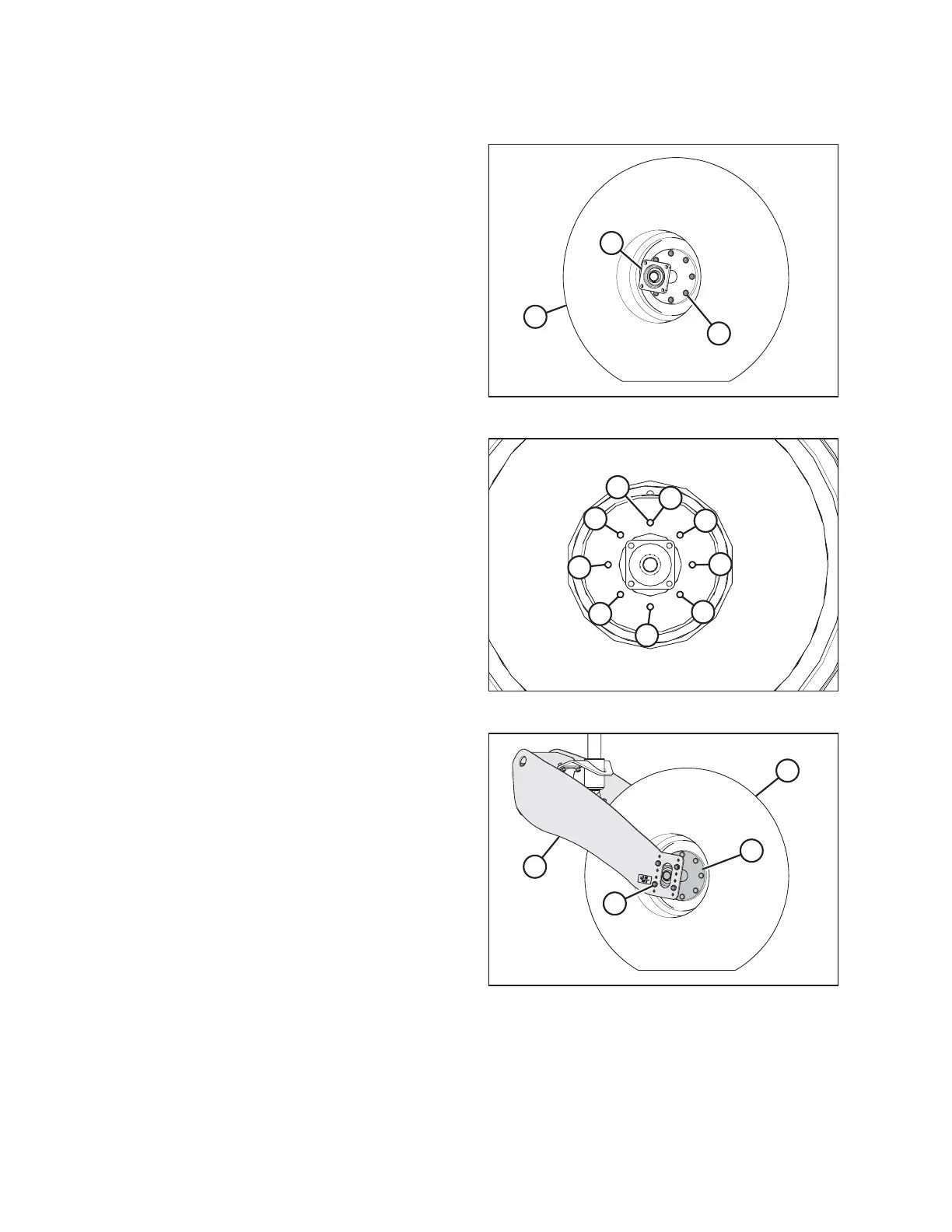

Figure 5.225: Caster Wheel Assembly
1. Position axle assembly (B) into wheel (C) and secure with
wheel nuts (A).
1000549
A
1
2
3
4
5
6
7
8
Figure 5.226: Caster Wheel Tightening Sequence
2. Tighten wheel nuts (A) to 163 Nm (120 lbf·ft) using the
tightening sequence shown at right. Repeat the tightening
sequence three times.
1019260
A
B
C
D
Figure 5.227: Caster Wheel Assembly
3. Position wheel assembly (D) in forked caster (C).
4. Install eight bolts (A) and nuts (four on each side of caster)
to secure axle (B) to caster (C). Torque nuts to 97–107 Nm
(75–79 lbf∙ft).
5. Lower caster wheel. Refer to Lowering Caster Wheel, page
393.
