214733 79 Revision A

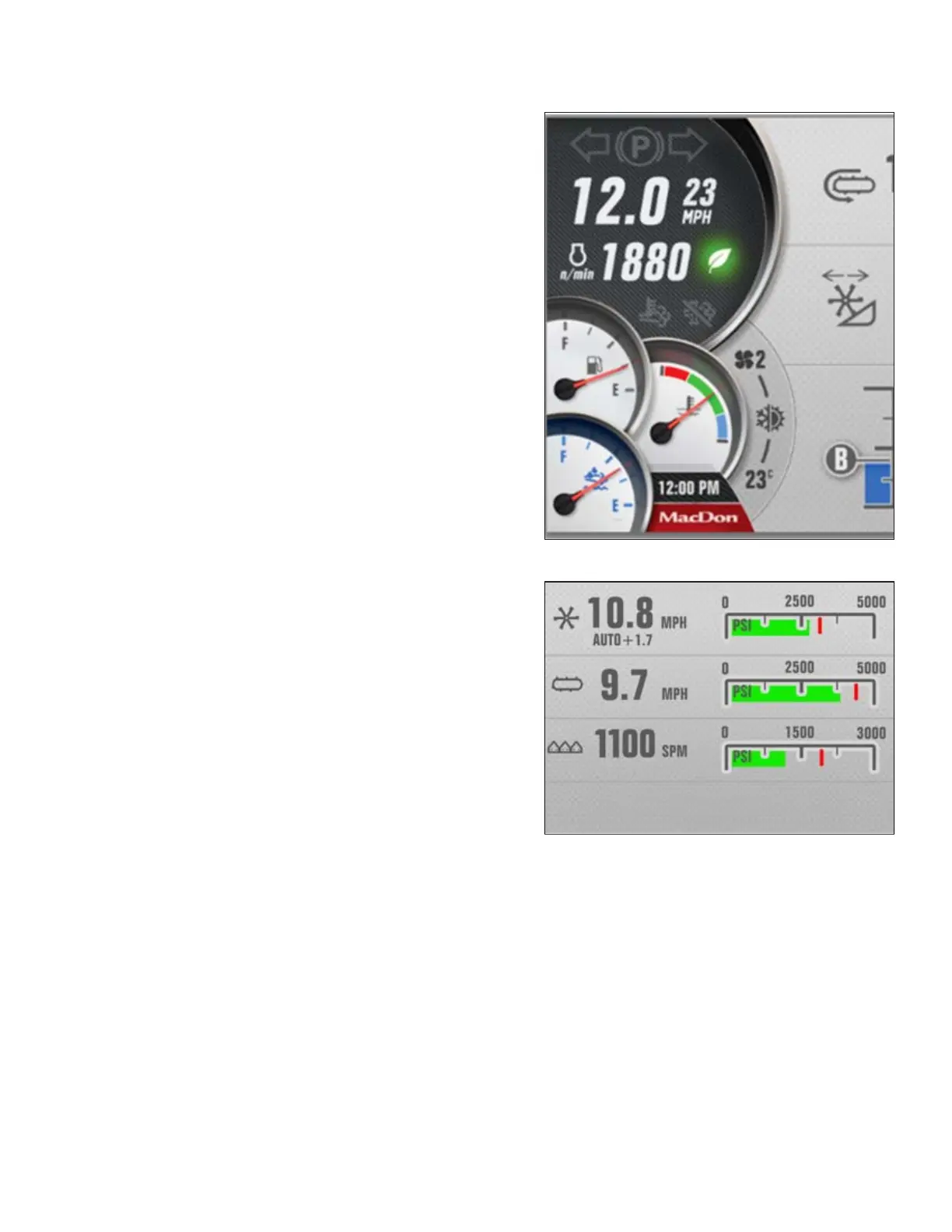

Figure 3.70: Gauge Cluster
The HPT display is separated into the following zones:
Left gauge cluster:
• Ground speed
• Maximum ground speed
• Engine rpm
• Eco engine control (EEC) active/inactive
• High exhaust system temperature (HEST) light
• Inhibit status
• Park and turn signal status
• Level gauges for fuel and DEF
• Coolant temperature gauge
• Climate control temperature and blower speed
• Current time
Figure 3.71: Draper Header Information
Header information:
The information displayed depends on the type of header
attached to the windrower and which run screen is active.
• Run screen #1: Displays reel, draper, knife, disc, or auger
speed and pressure; alarm point; and indexing (factory-set
according to header)
• Run screen #2: Displays draper, knife, or disc speed and
pressure; reel height and fore-aft position; hydraulic
pressure; and load bar
• Run screen #3: Displays fuel per hour/acre, acres per hour,
and sub acres per hour (resettable)
• Run screen #4: Displays cooling fan speed, engine air intake
temperature, hydraulic oil temperature, and engine coolant
temperature
OPERATOR’S STATION
