3.19.4 Cab Dis
play Module (CDM) Warning/Alarms
The CDM displays warnings and sounds alarms to notify of abnormal windrower status at startup when the ignition
is turned ON, and at engine operating s peeds above 500 rpm.
Engine Warning Lights

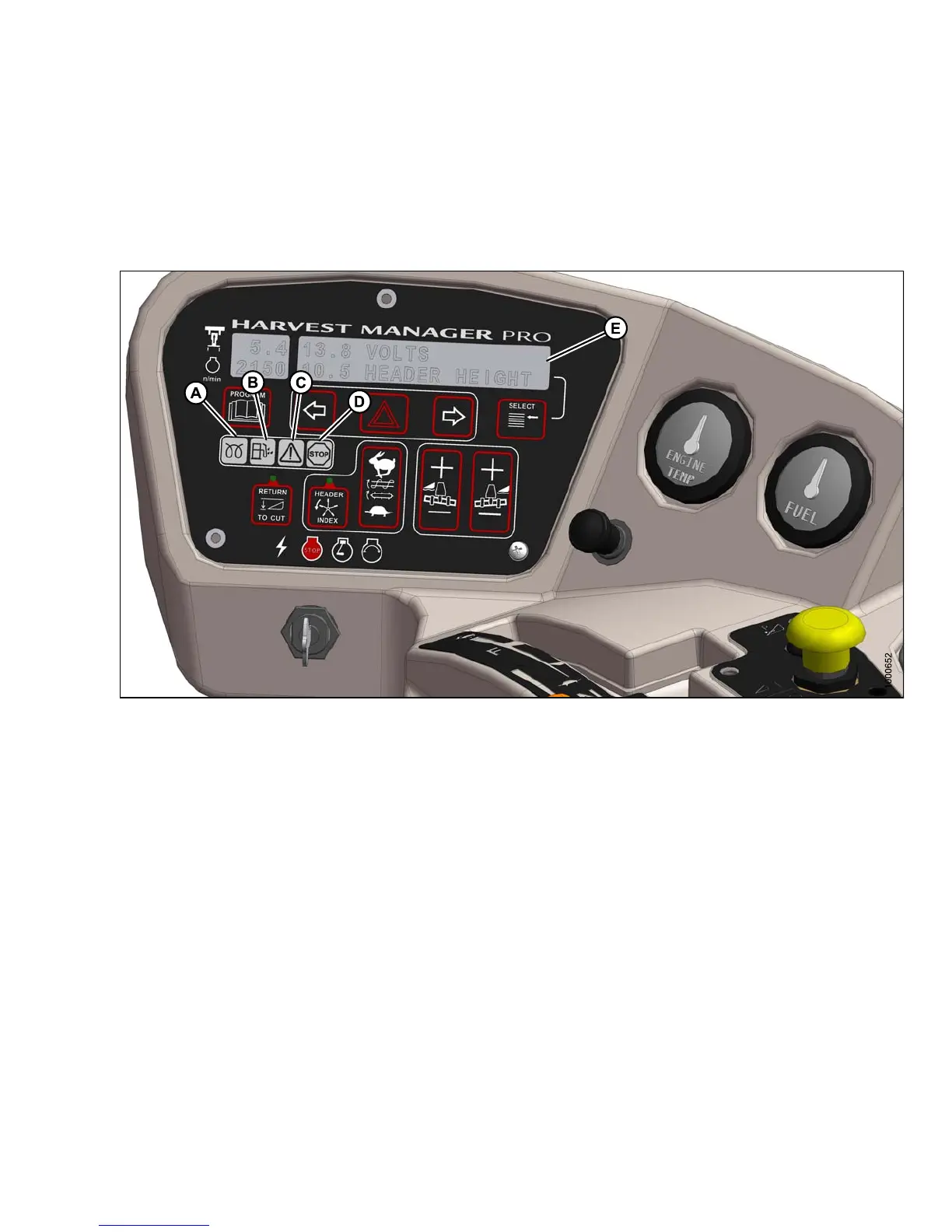

Figure 3.67: CDM Engine Warning Lights
A - Engi
ne Pre-Heat
B-Wate
r in Fuel
C-Caution
D-Stop
E-Display
• ENGINE PRE-HEAT: Illuminates yellow. Wait to start engine.
• WATER IN FUEL: Illuminates yellow. Service recommended.
• CAUTION: Illuminates yellow. Prompt attention is required. Refer to display code.
• STOP: Illuminates red. Stop engine immediately. Refer to display code.
• DISPLAY: Displays malfunction code. Refer to 8.4 Engine Error Codes, page 469 or your Dealer.
