Forcing a Header ID
The header must be attached to the windrower to troubleshoot certain issues. If damage has occurred to the
header wiring or no header is available, you can force the windrower control module (WCM) to read a header ID.
TheWCMrevertstoreadingNOHEADEReachtimetheengineignitioniscycled.
IMPORTANT:
Forcing a Hea
der ID that is different from the attached header can damage the w indrower and header.
Doingsocanl
ead to vibration, belt failures, and other over-speeding related problems.
1. Turn ignition key to RUN, or start the engine.
2. Press PROGRAM (A) and SELECT (C) on cab display
module (CDM) to enter Programming Mode.
• WINDROWER SETUP? is displayed on the
upper line.

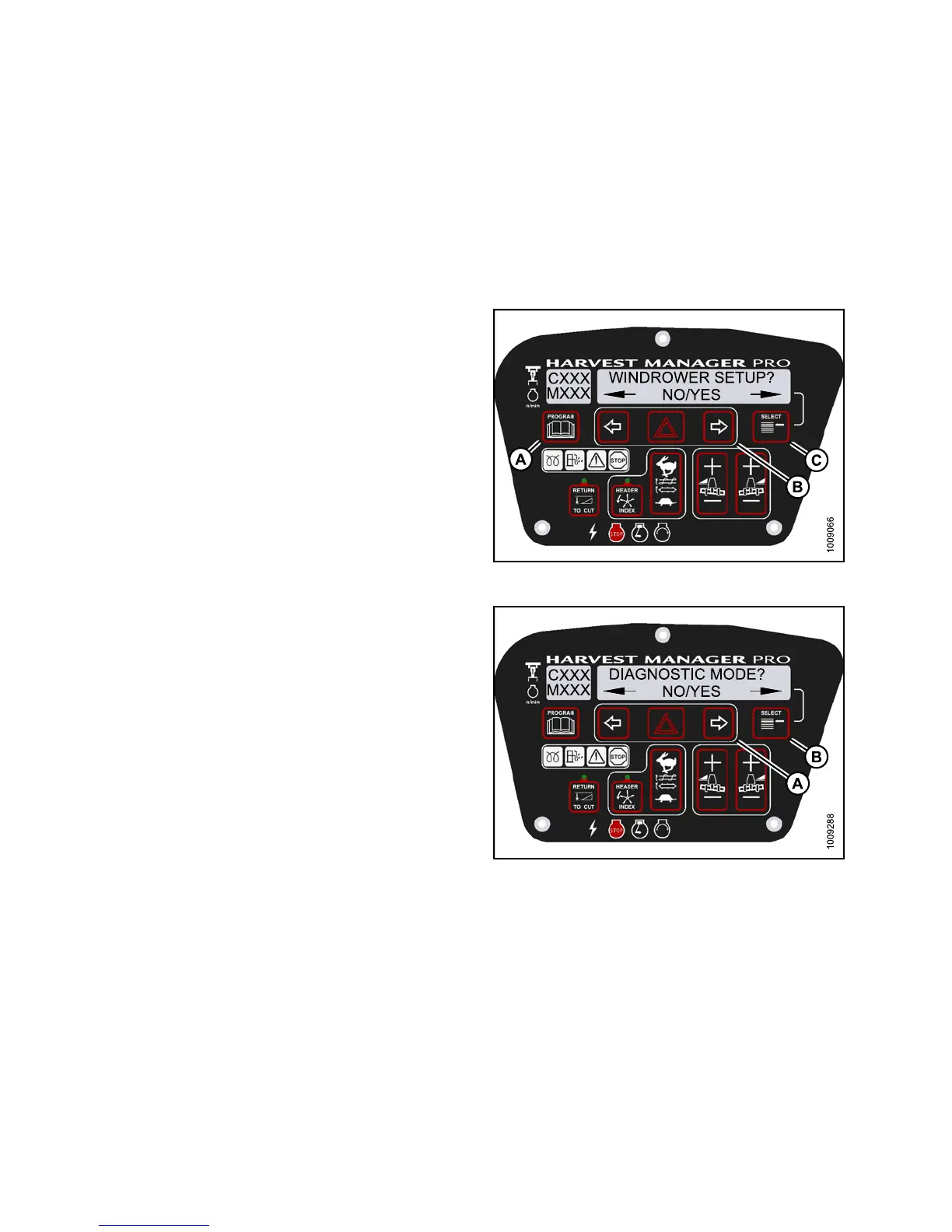

Figure 3.168: M155 CDM Programming Buttons
3. Press SELECT (B) until DIAGNOSTIC MODE? is
displayed in upper line.
• NO/YES is displayed on the lower line.
4. Press right (A) arrow to select Yes. Press SELECT (B).
Figur
e 3.169: M155 Diagnostic Functions
