MAINTENANCE AND S ERVICING
5.3 Maintenance Platforms
Swingaway platform/stair units are provided on both sides of the windrower for access to the operator’s station and
engine bay.
The platforms can be swung away from the windrower to allow access to the hydraulics plumbing or battery.
The m aintenance platforms have three positions:
• Closed position
• Open standard position
• Open major servicing position
5.3.1 O pening Platforms (Standard Position)
CAUTION
Do NOT stand on an unlocked side platform. It is unstable and may cause you to fall.
NOTE:
This procedure describes how to open the cab-forward
left platform (A). Use the same procedure for the right
platform (B).

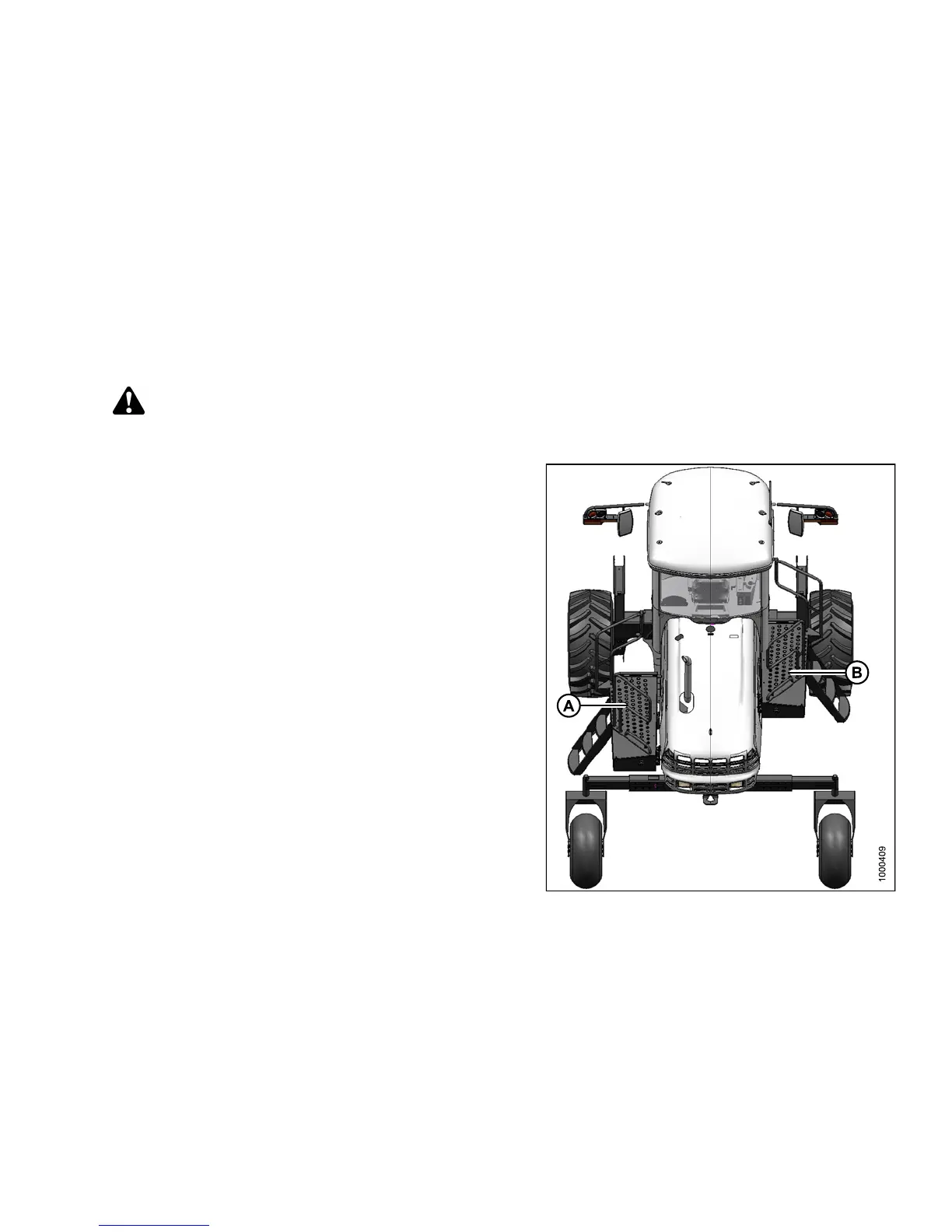

Figure 5.5: Platforms
