OPERATION
Towing Header with Windrower
The windrower can be used to tow a MacDon draper header that has the slow speed transport option installed.
Ensure the optional weight bo x or a n a pproved header trans po rter is insta lled on the wind ro w er to transf er weight
to the lift arms.
WARNING
• A windrower without a header or weight box must
NOT be used to tow headers due to reduced
traction and possible loss of control.
• For towed equipment without brakes, do NOT
exceed 20 mph (32 km/h).

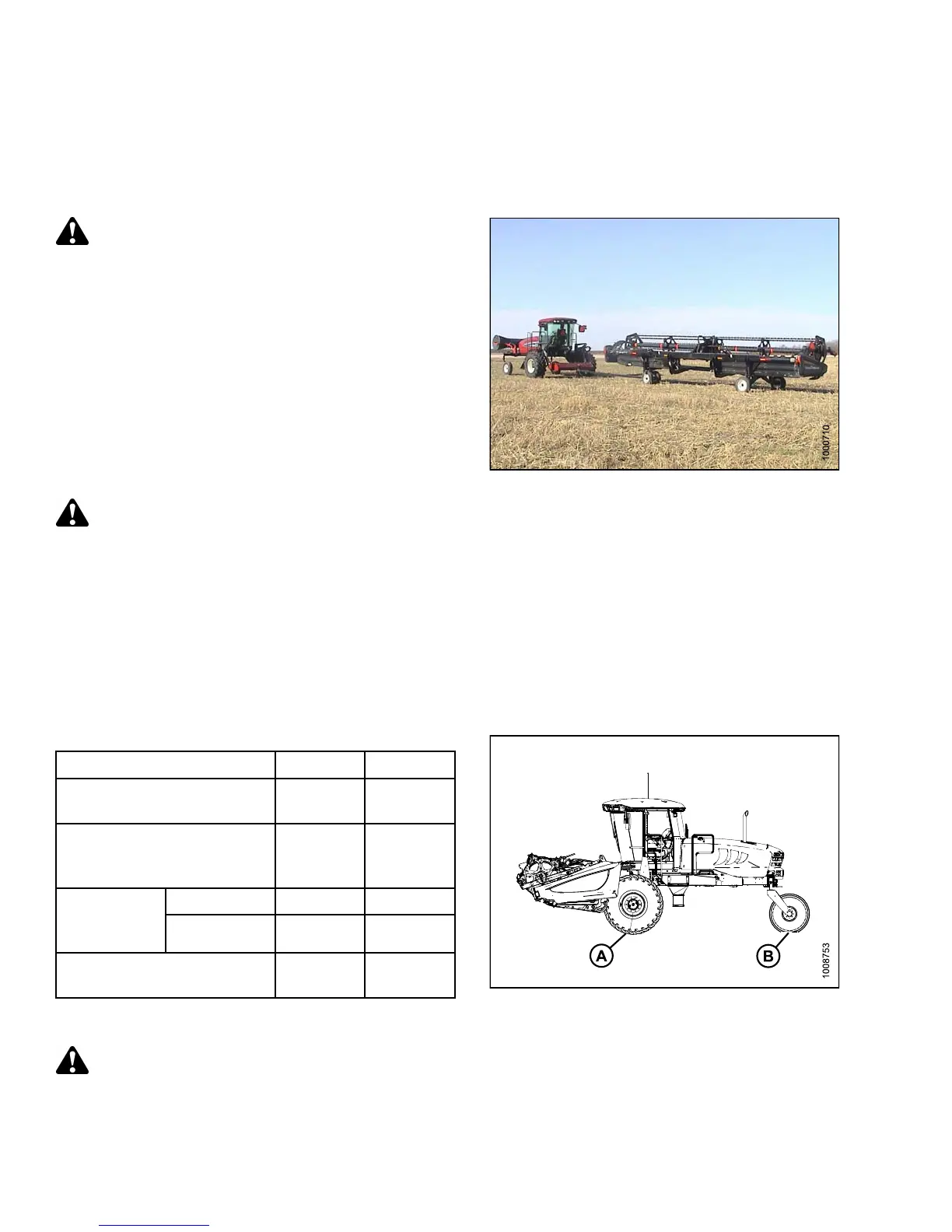

Figure 4.36: Towing a Header
CAUTION
• To tow a header with an M155 Self-Propelled Windrower, the header must be equipped with the
appropriate equipment to comply with local regulations.
• Before towing, conduct a pre-trip inspection to verify signal lighting and safety equipment is installed
and functioning properly.
• Do NOT exceed the Combined Gross Vehicle Weight (CGVW) specified in table 4.1 Maximum Weight,
page 178.
• To prevent damage and/or loss of control, ensure the machine and attached equipment are within the
following weight limits:
Table 4.1 Maximum Weight
lb kg
Maximum GVW (includes
mounted implements)
21,500 9750
Maximum CGVW (includes
towed and mounted
implements)
23,100 10,480
Maximum 18,750 8500
Weight (A)
on both
drive wheels
Mini
mum
10,0
70
4570
Maximum weight (B) on
both caster tires
605
0
275
0
Figure 4.37: Maximum Weight
Converting from Field to Transport Mode
DANGER
To avoid bodily injury or death from unexpected startup of the machine, always stop the engine and remove
the key from the ignition before leaving the operator’s seat for any reason.
147649 178 Revision A
