MacDon M155 - Lubrication Points

MAINTENANCE AND S ERVICING
5.4.2 L ub rication Points

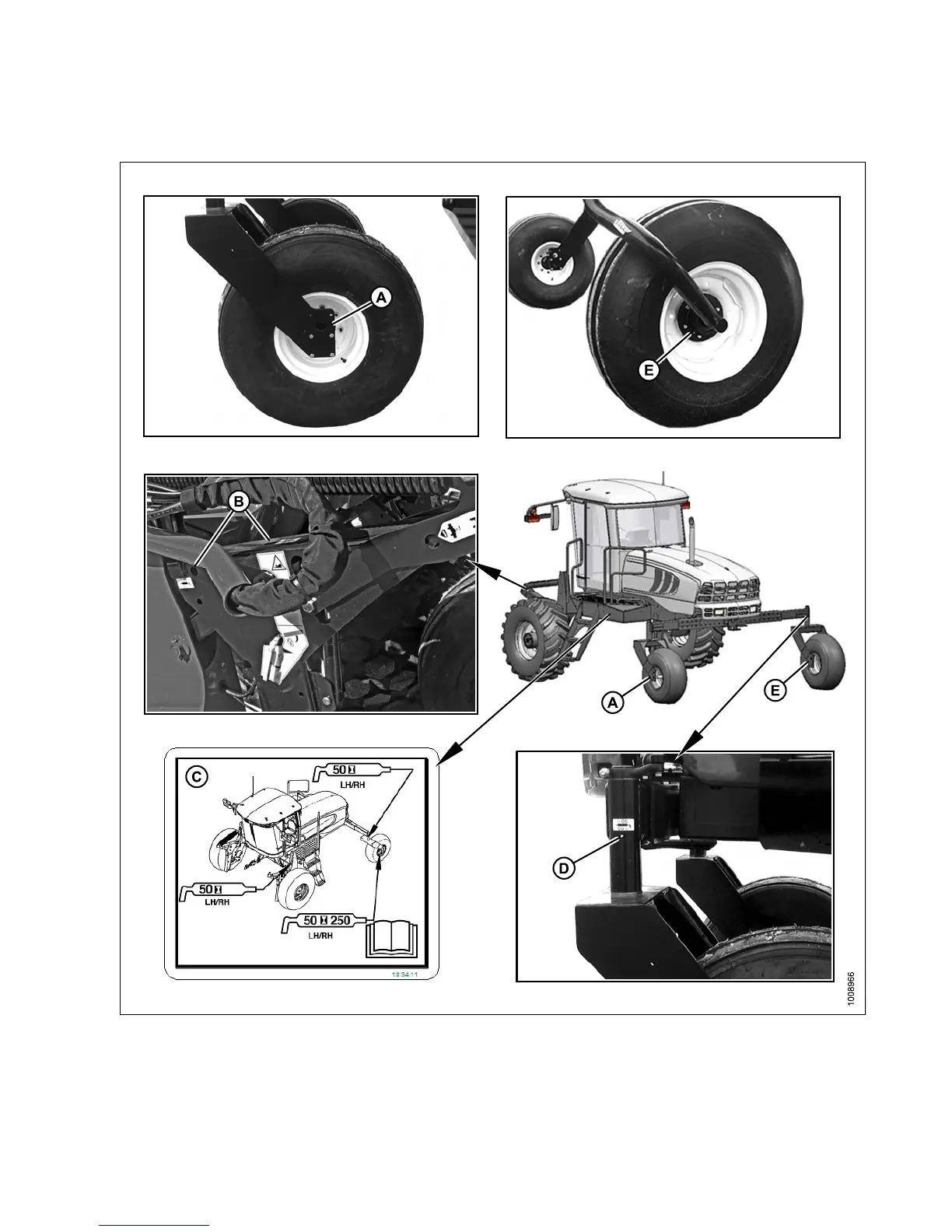

Fig
ure 5.15: Lubrication Points
A - Forked Caster Wheel Bearing (2 Places) (Outer – Both Wheels) B - Top Link (2 Places) (Both Sides)
C - Lubrication Decal (MD #183411) D - Caster Pivot (Both Sides)
E-
Forked/Formed Caster Wheel Bearing (2 Places) (Inner – Both Wheels) (50 Hrs/250 Hrs)
147649 315 Revision A
