OPERATOR’S STATION
Double Windrow Attachment (DWA) / Swath Roller Switch (if installed)
With Double Windrow attachment
• If switch (A) is installed in the console, the DWA deck
is raised with switch in position (C) or lowered in
position (B). The cab display module (CDM) must be
programmed for this configuration, refer to Activating
the Double Windrower Attachment (DWA), page 110.
Switch (A) may be used in lieu of the DWA switches on
the ground speed lever (GSL).
With Swath Roller attachment
• The roller is r aised by pressing switch (A) to position (C)
or low ered with switch in po sitio n (B).
NOTE:
You may swap controls to the rocker switch or to the GSL
handle, by changing the programming in the CDM. R efer
to 3.19.5 Cab Display M odule (CDM) Progra mming,
page 89.

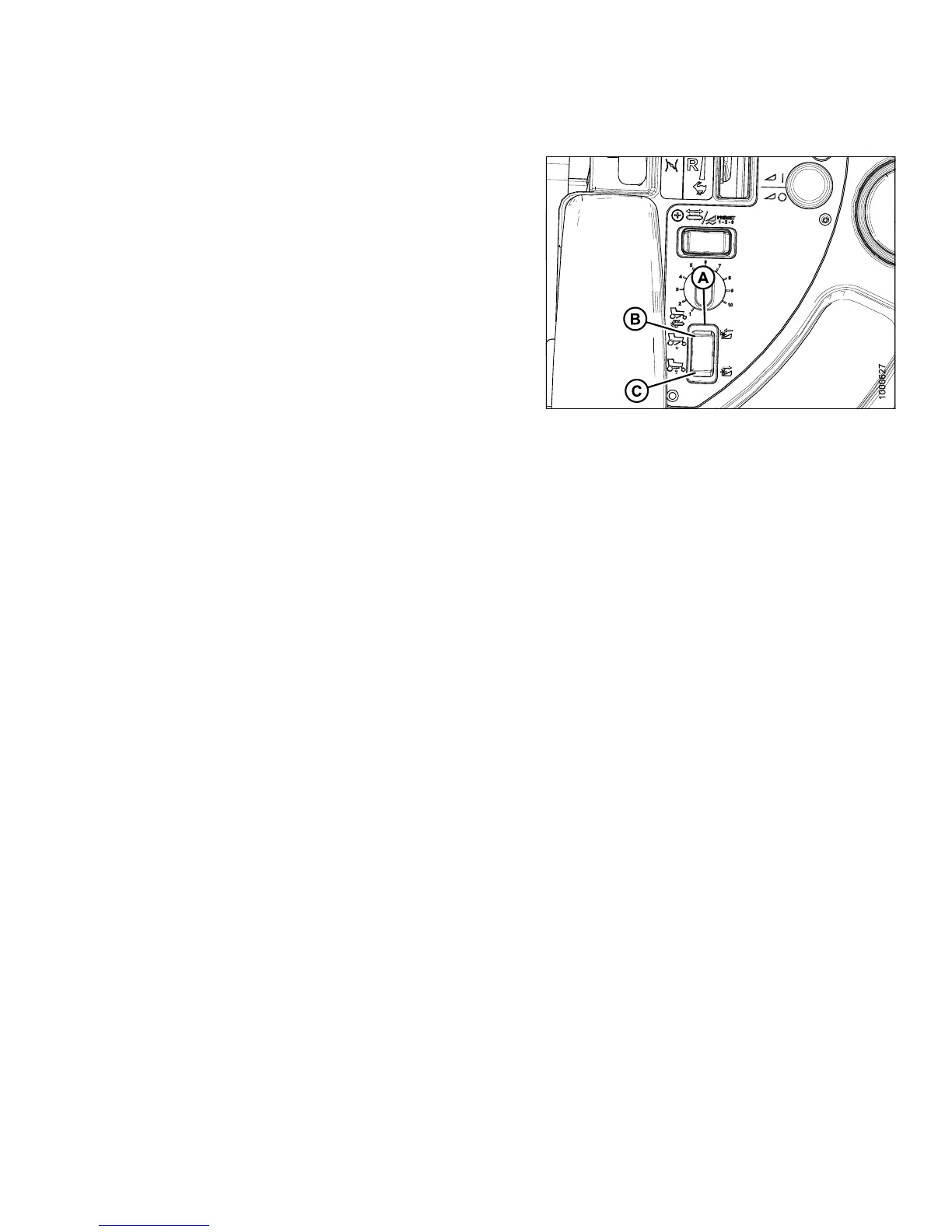

Figure 3.63: Console Switches
147649 73 Revision A
