OPERATION
Detaching a D-Series Header: Hydraulic Center-Link
DANGER
To avoid bodily injury or death from unexpected
startup of the machine, always stop the engine and
remove the key from the ignition before leaving the
operator’s seat for any reason.
1. Start engine and press header up (A) switch to raise
header to maximum height.
2. Rephase cylinders if one end of the header does not
raise fully. If rephasing is required, proceed as follows:
a. Press and hold the header up (A) switch until both
cylinders stop moving.
b. Continu e to hold the switch for 3–4 seconds.
Cylinders are now phased.
3. Stop engine and remove key.

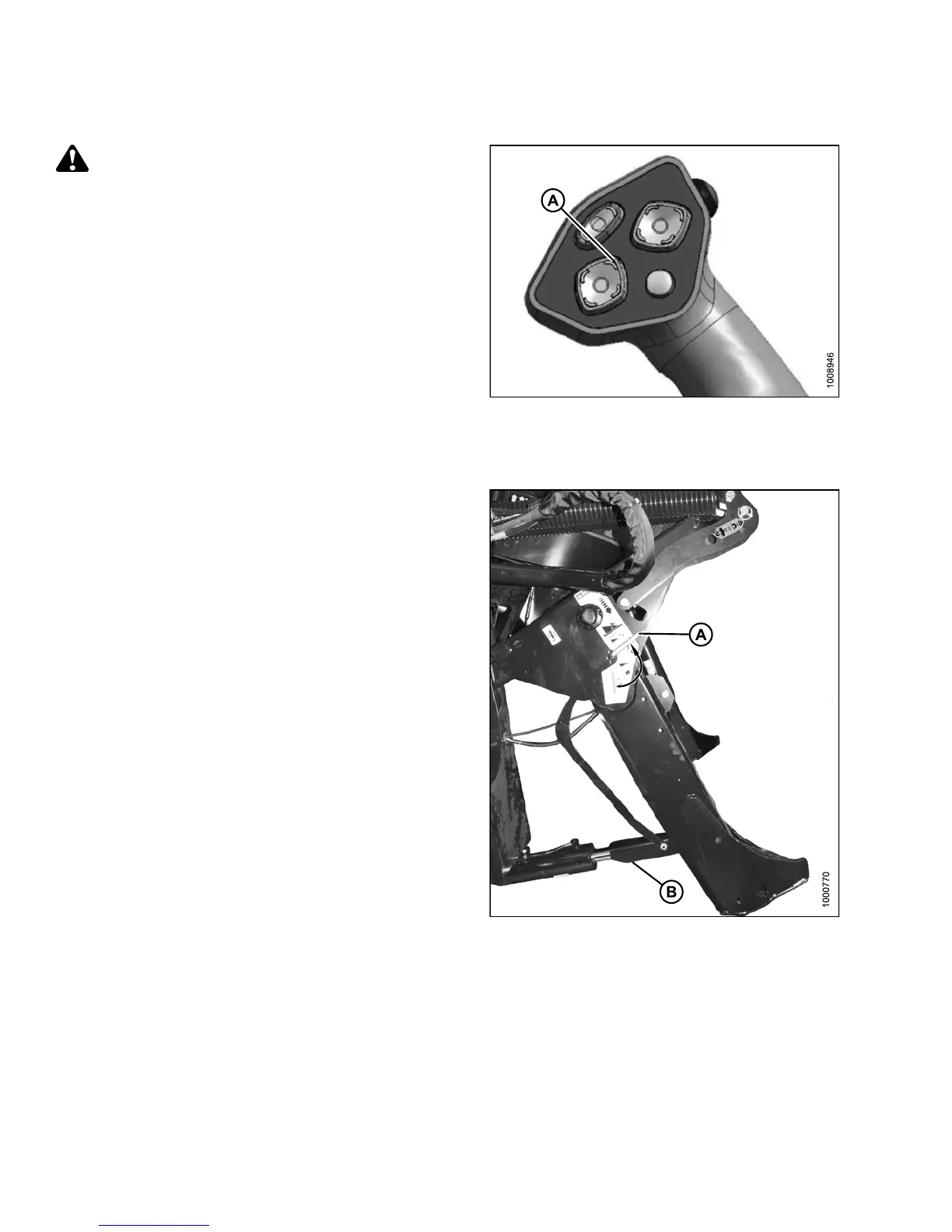

Figure 4.1
51: GSL
4. Pull lever (A) and rotate toward header to lower safety
prop (B) onto cylinder. Repeat for opposite cylinder.
Figure 4.152: Safety Prop
147649 230 Revision A
