OPERATOR’S STATION
3.9 Rear View Mirrors
Two outside mounted, adjustable mirrors (A) provide a rear
view when the windrower is in cab-forward mode.
A single interior mounted mirror (B) provides a rear view in
the engine-forward mode.
The mirror/light assembly (A) is designed to fold b ack if
accidentally struck. A detent-type lock keeps it in place.

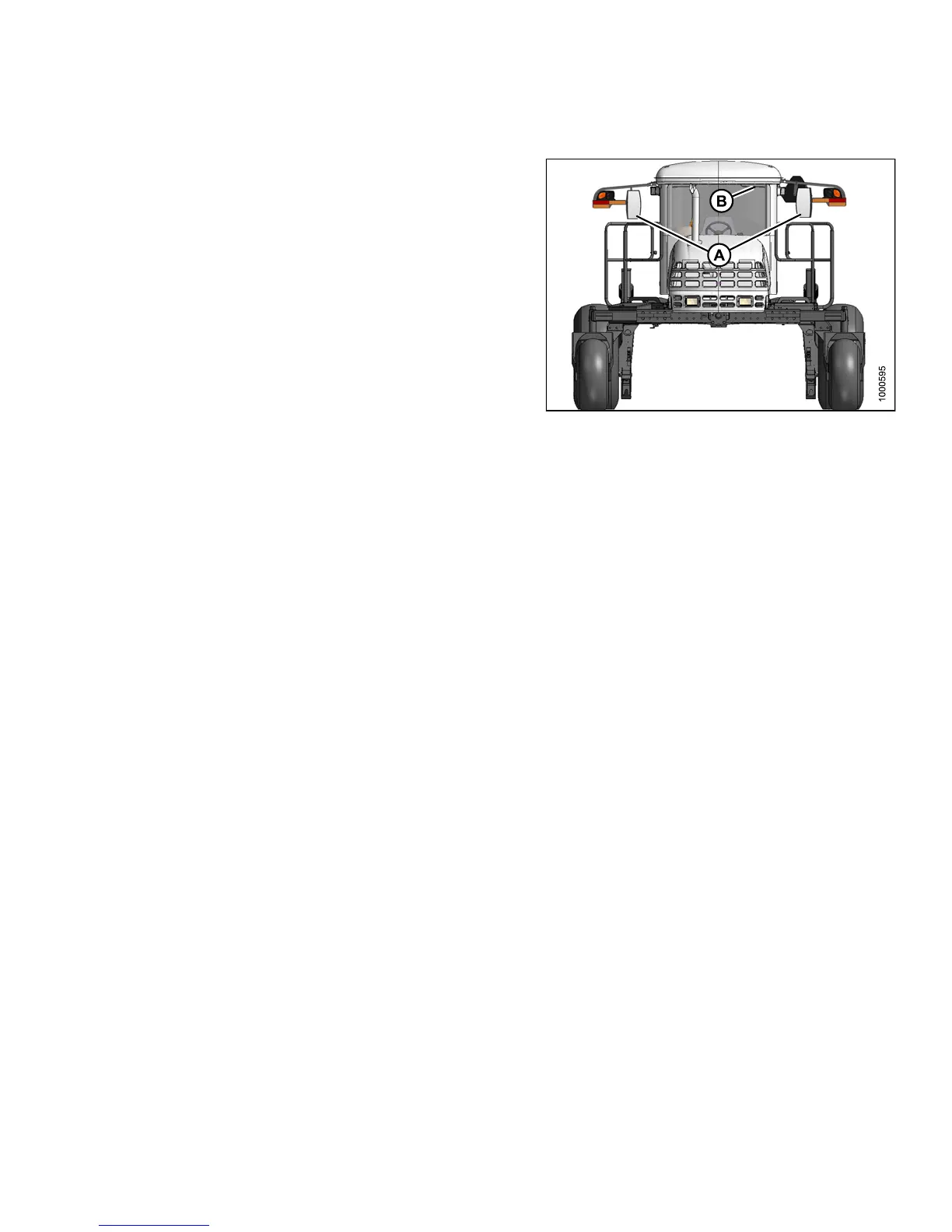

Figure 3.31
: Mirrors
147649 55 Revision A
