OPERATOR’S STATION
The two field lights (A) at the rear of the cab are adjustable.
Refer to Adjusting Rear Flood Lights, page 386.
The two swath lights (B) in the hood are adjustable but,
because they are used as road lights in engine-forward
mode and adjusted accordingly, they should NOT be
adjusted for field o pe ration.

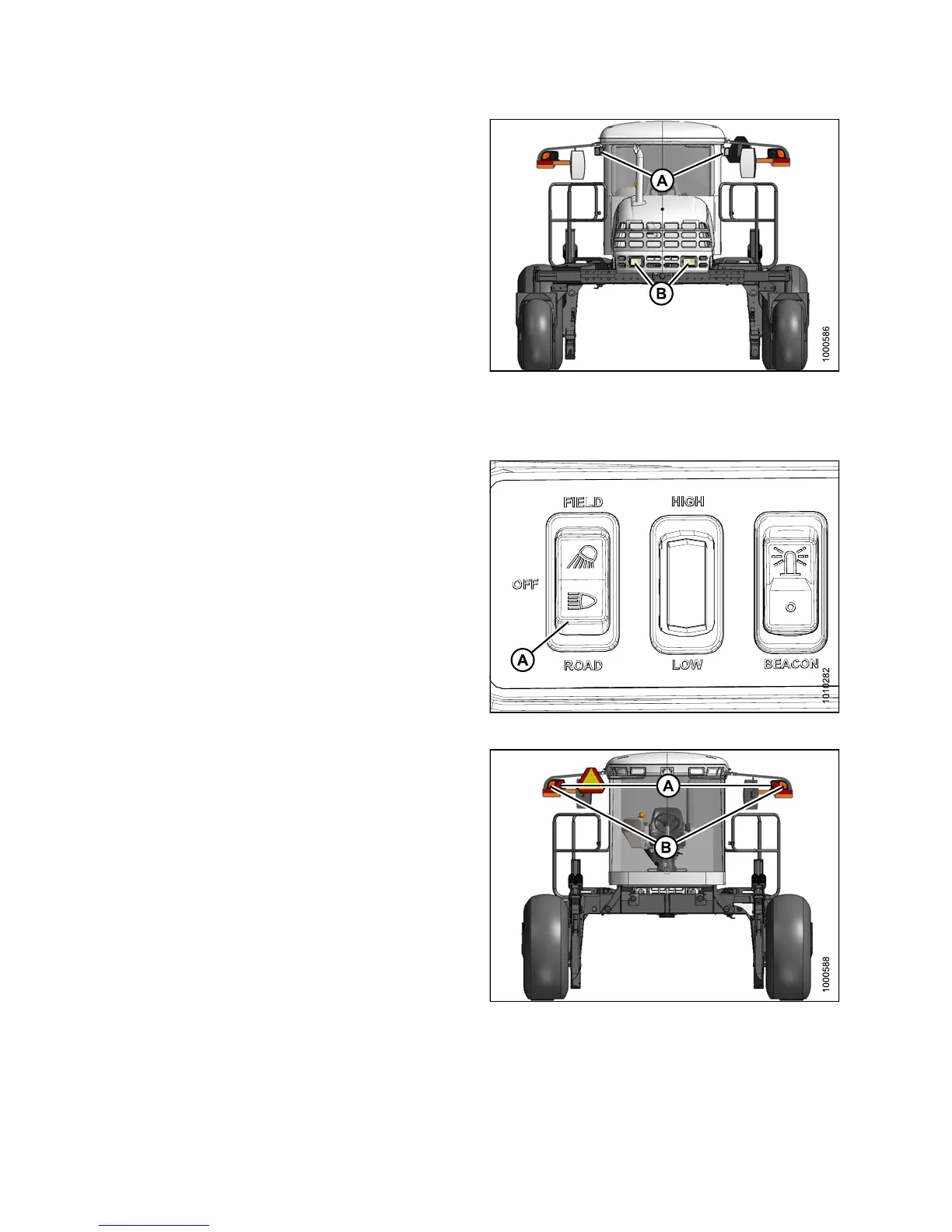

Figure 3.19: Cab-Forward: Rear View
3.7.2 E ngine-Forward Lighting: Road
The following lights are ON when the light switch (A) is in
ROAD position with the windrower in engine-forward mode:
Figure
3.20: Road Light Switch
• Red tail lights (A) on the mirror supports
• Amber turn signals and hazard lights (B) on mirror
supports rear view
Figu
re 3.21: Engine-Forward: Rear View
147649 50 Revision A
