OPERATOR’S STATION
3.16 Engine Controls and Gauges
The following engine controls and gauges are conveniently
located on the operator’s console.
A – Ignition Switch
• ACC: Fully counterclockwise
• OFF: All electrical systems OFF
• RUN: Clockwise
• START: Fully clockwise to crank engine: Release and
switch returns to RUN
• REMOVE KEY WHEN W INDROWER NOT IN USE.
KEY ALSO LOCKS DOORS
B – Engine Temperature G auge indicates engine coola nt
temperat ure
• Normal Running: 180°–225°F (82°–107°C)
• Warning Tone Over 230°F (110°C)
C – Fuel Gauge indicates fuel level in tank
•E:Empty
•F:Full
D–Throttlecontrols engine speed
• FULL: Push lever forward
• OPERATING: Refer to Driving Forward in Ca b-F orwa rd
Mode, page 168
• CLOSED: Pull leve r back

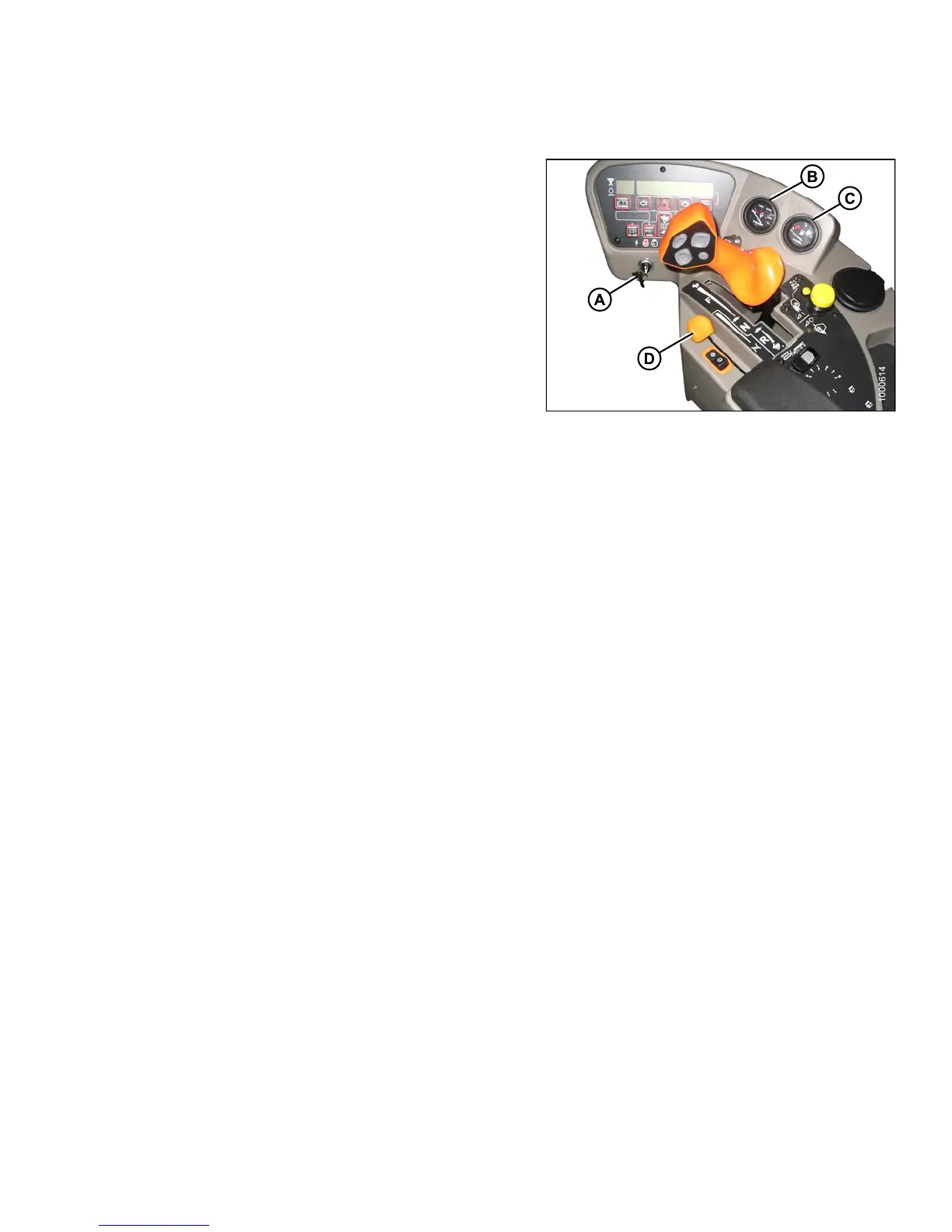

Figure 3.49: Engine Controls and Gauges
A - Igniti on Switch B - Engine Temperature Gauge
C-FuelGau
ge
D - Throttle
147649 65 Revision A
