MacDon M155 - O-Ring Boss (ORB) Hydraulic Fittings (Non-Adjustable)

REFERENCE
O-Ring Boss (ORB) Hydraulic Fittings (Non-Adjustable)
1. Inspect O-ring (A) and seat (B) for dirt o r
obvious defects.
2. Check tha t O-rin g (A) is NOT on the threads and adjust
if necessary.
3. Apply hydraulic system oil to the O-ring.
4. Install fitting (C) into port until fittingishandtight.
5. Torque fitting (C) according t o the value s in
Tab le 8.12 O-Ring Boss (ORB) Hydra ulic Fittings
(Non-Adjustable), page 462.
6. Check the final condition of the fitting.

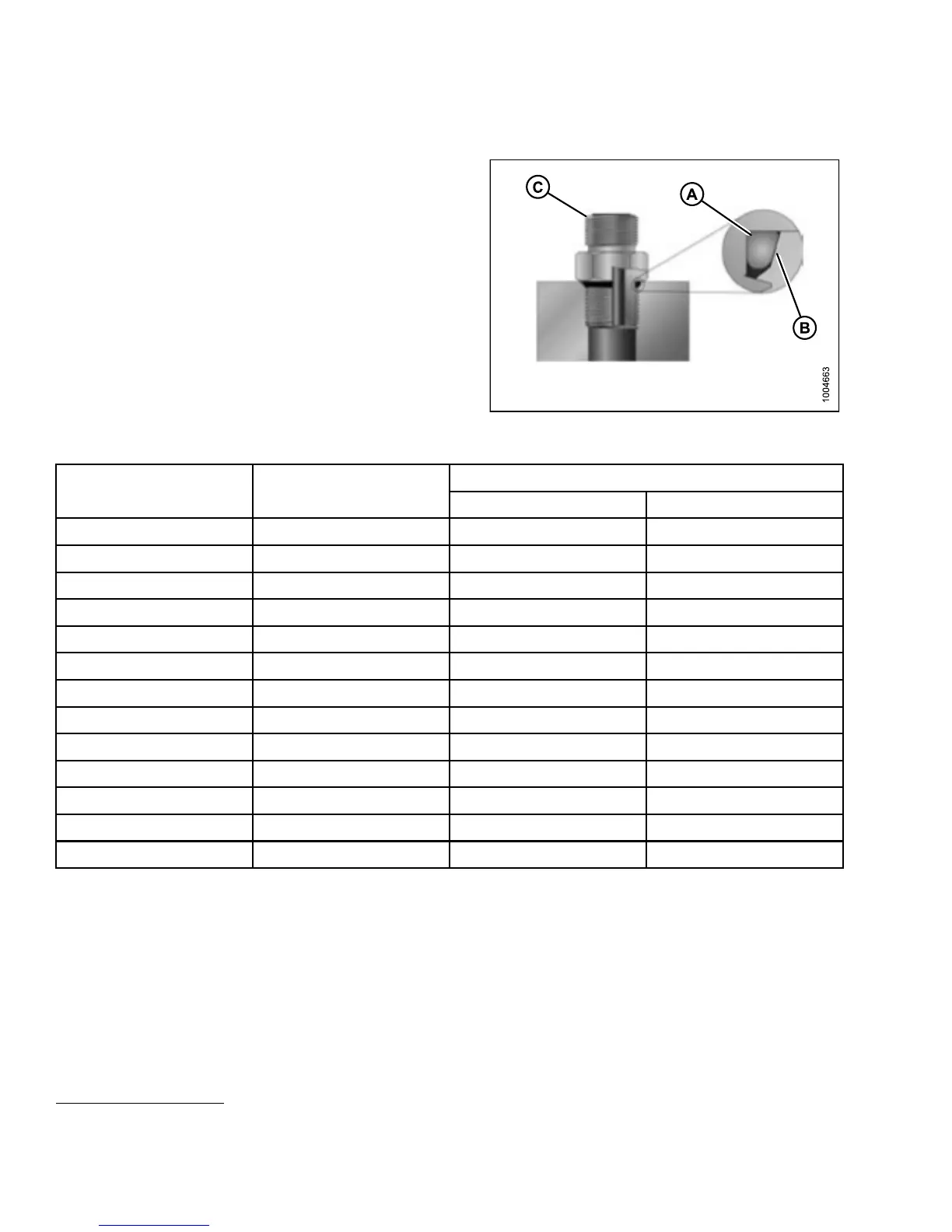

Figure 8.1
3: Hydraulic Fitting
Table 8.12 O-Ring Boss (ORB) Hydraulic Fittings (Non-Adjustable)
Torque Value
36
SAE Dash Size Thread Size (in.)
ft·lbf (*
in·lbf)
N·m
-2 5/16–24 *53–62 6–7
-3 3/8–24 *106–115 12–13
-4 7/16–20 14–15 19–21
-5 1/2–20 15–24 21–33
-6 9/16–18 19–21 26–29
-8 3/4–1
6
34–37 46–50
-10 7/8–14 55–60 75–82
-12 1-1/16–12 88–97 120–132
-14 1-3
/8–12
113
–124
153
–168
-16 1-5/16–12 130–142 176–193
-20 1-5/8–12 163–179 221–243
-
24
1
-7/8–12
1
99–220
2
70–298
-32 2-1/2–12 245–269 332–365
36. Torque values shown are based on lubricated connections as in reassembly.
147649 462 Revision A
