OPERATOR’S STATION
Activating the Drape r Speed Control Lock Out
NOTE:
• This procedure is for draper headers only.
• The header MUST be attached to the windrower to perform this procedure. The cab display module (CDM)
automatically adjusts its programming for each header. For more information, refer to 4.5 Attaching and
Detaching Headers, page 213.
1. Turn ignitio
n key to RUN, or start the engine.
2. Press PROGR
AM (A) and SELECT (C) on cab display
module (CDM
) to enter Programming Mode.
•WINDROWERS
ETUP? is disp lay ed on the
upper line.
• NO/YES is d
isplayed on the lower line.
3. Press righ
t (B) arrow to select YES. Press SELECT (C).
•SETKNIFES
PEED? is displayed on the upper line.

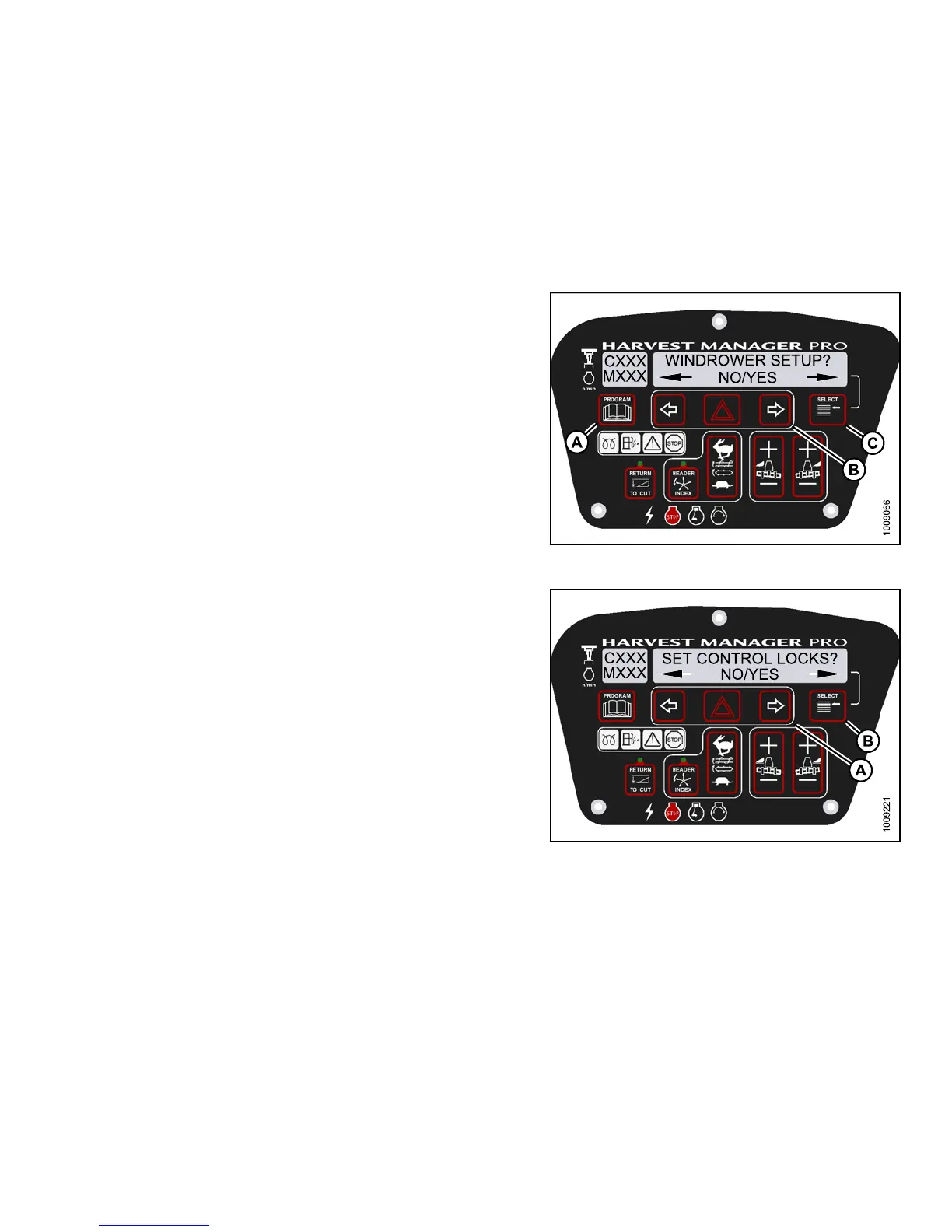

Figure 3.140: M155 CDM Programming Buttons
4. Press SE
LECT (B) until SET CONTROL LOCKS? is
display
ed on the upper line.
• NO/YES i
s displayed on the lower line.
5. Press ri
ght (A) arrow to select YES. Press SELECT (B).
Figure 3.141: M155 Control Locks
147649
1
21
Revision A
