OPERATOR’S STATION
1. Turn ignition key to RUN, or start the engine.
2. Press PROGRAM (A) and SELECT (C) on cab display
module (CDM) to enter Programming Mode.
• WINDROWER SETUP? is displayed on the
upper line.
• NO/YES is displayed on the lower line.
3. Press right (B) arrow to select YES. Press SELECT (C).
• SET KNIFE SPEED? is displayed on the upper line.

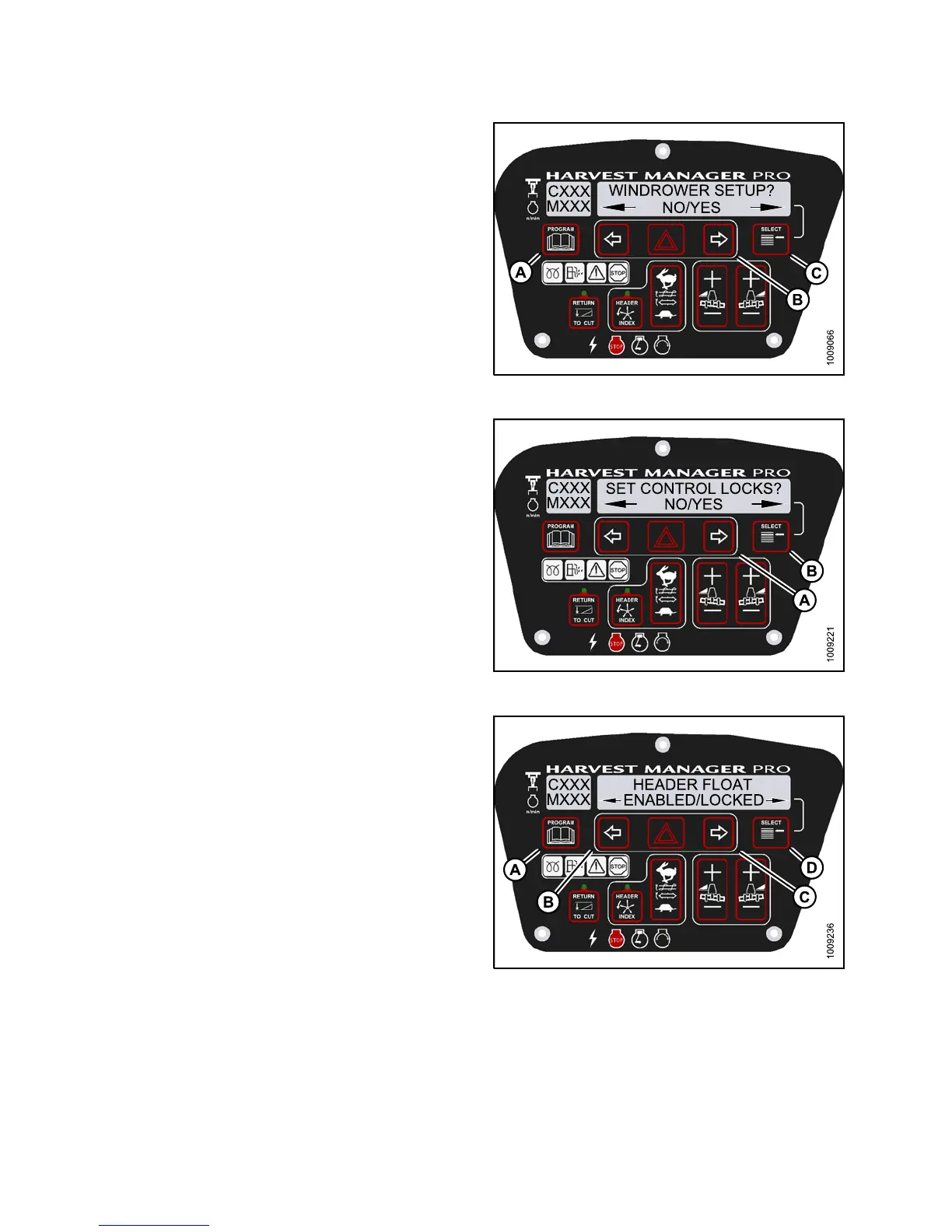

Figure 3.137: M155 CDM Programming Buttons
4. Press SELECT (B) until SET CONTROL LOCKS? is
displayed on the upper line.
• NO/YES is displayed on the lower line.
5. Press right (A) arrow to select YES. Press SELECT (B).
Figure 3
.138: M155 Control Locks
6. Press SELE CT (D) until HEADER FLOAT is displayed
on the upper line.
• ENABLED/L O C KED is displayed on the lower line.
7. Press left arrow (B) to enable HEADER FLOAT control
switch, or press right arrow (C) to lock HEADER FLOAT
control switch.
8. Press PROGRAM (A) to exit Programming Mode or
press SELECT (D ) to proceed to next WINDROWER
SETUP action.
Figure 3.139: M155 Header Float Control Lock
147649 120 Revision A
