OPERATION

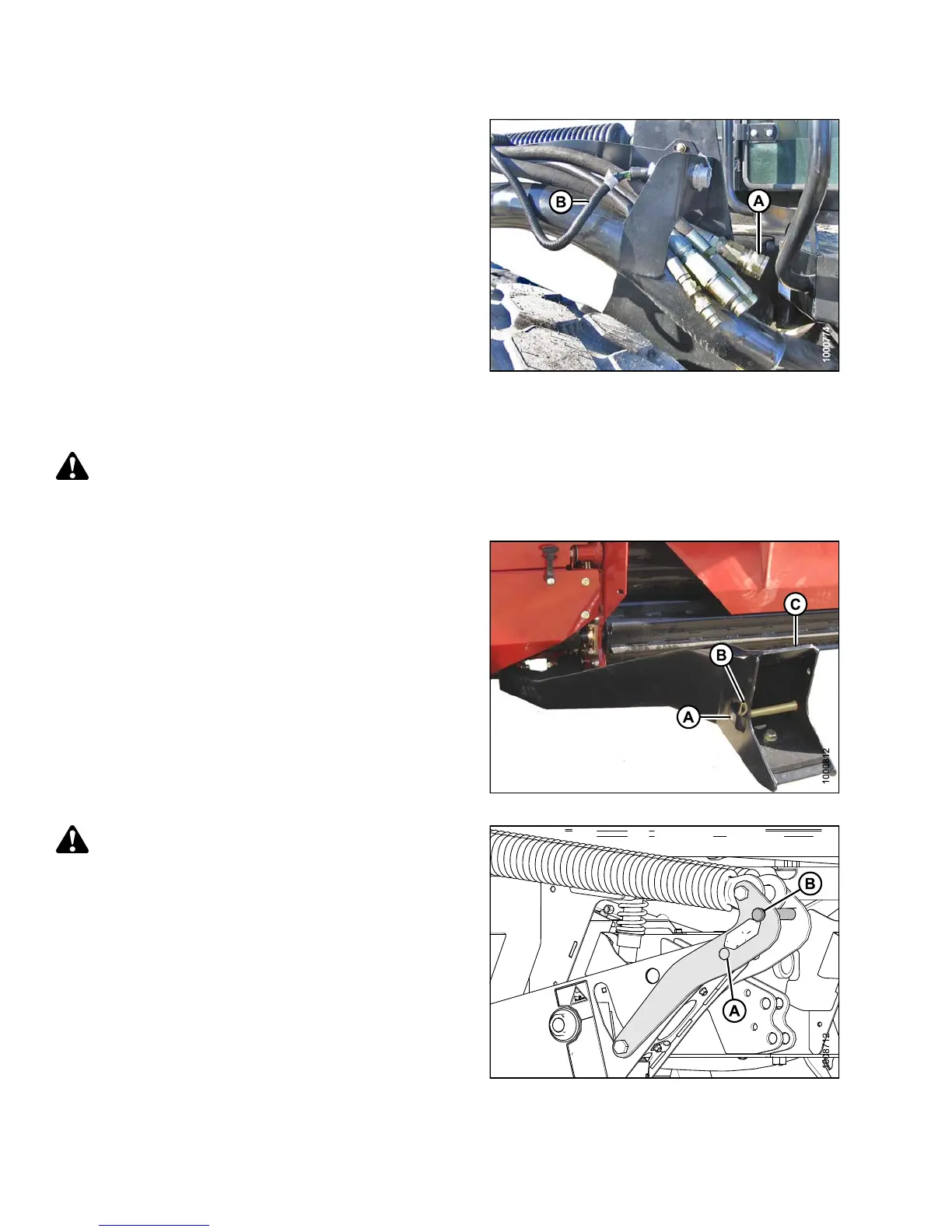

17. Connect header drive hoses (A) and electrical
harness (B) to header. Refer to the rotary d isc header
operator’s manual.
Figure 4.232: Header Drive H oses and Harness
Attaching an R-Series Header: Hydraulic Center-Link without Self-Alignment
DANGER
To avoid bodily injury or death from unexpected startup of the machine, always stop the engine and remove
the key from the ignition before leaving the operator’s seat for any reason.
1. Remove ha irpin (B) from clevis pin (A) an d re m o ve
clevis pin from the header boots (C) on both sides of
the header.
Figure 4.233: Header Boot
CAUTION
To prevent damage to the lift system when lowering
header lift linkages without a header or weight
box attached to the windrower, ensure the fl oat
engagement pin is installed in storage position (B)
and NOT in engaged position (A).
Figure 4.234: Header Float Linkage
147649 262 Revision A
