OPERATION

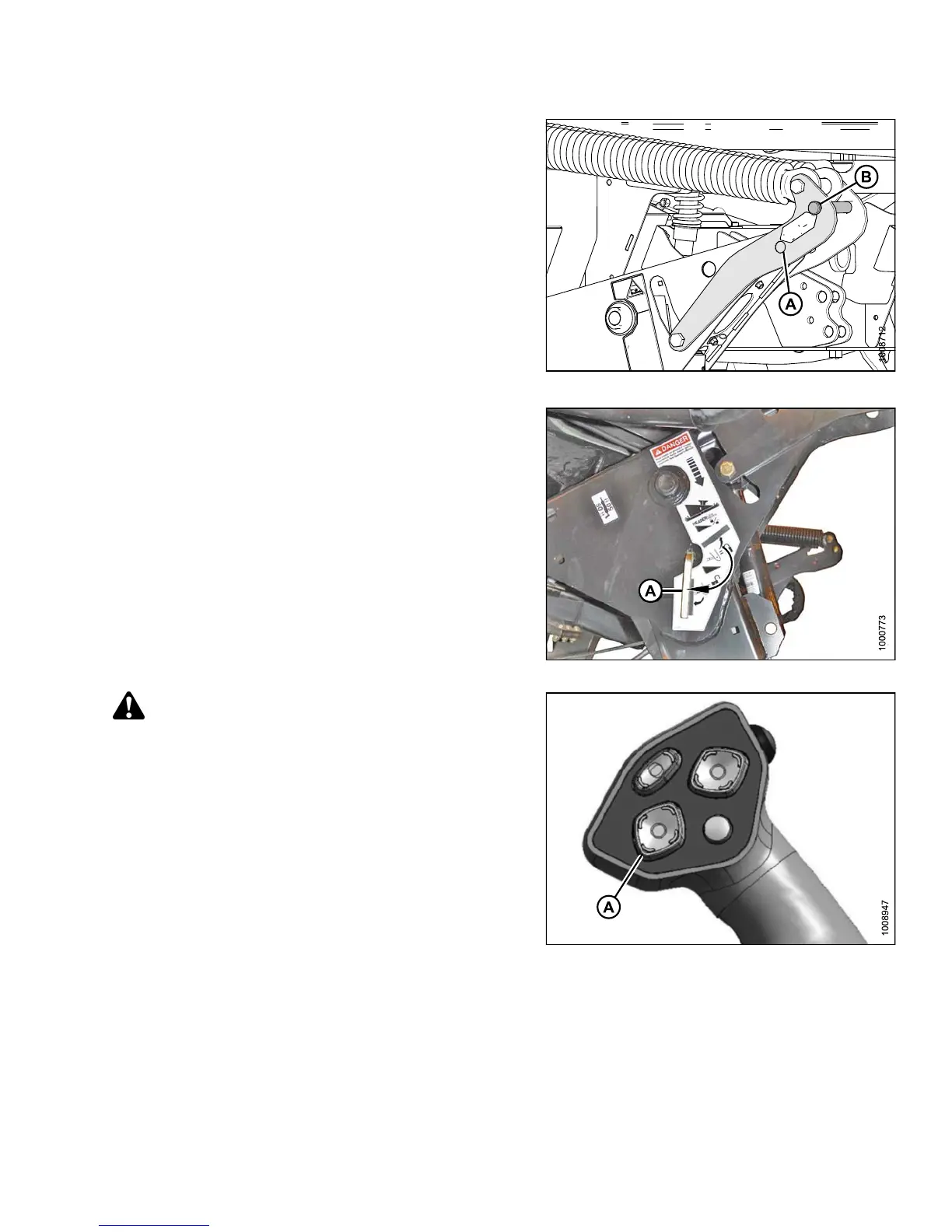

12. Remove clevis pin from storage position (B) in linkage
and insert into hole (A) to engage floa t springs. Secure
with hairpin.
Figure 4.229: Header Float Linkage
13. Disengage safety prop by turning lever (A) downwards
to rele ase and lower s top until lever loc ks into
vertical position.
14. Repeat for opposite safety prop.
Figure 4.230: Safety Prop
CAUTION
Check to be sure all bystanders have cleared the area.
15. Start the engine and activate the header down
switch (A) on the GSL t o f ully lo wer the header.
16. Stop engine and remove key from ignition.
Figure 4.231: GSL
147649 261 Revision A
