OPERATOR’S STATION
• Amber turn signals and hazard lights (A) on mirror
supports front view
• Headlights (B) in hood with low/high
The two headlights in the hood are adjustable. Refer to
Aligning Headlights, page 376.

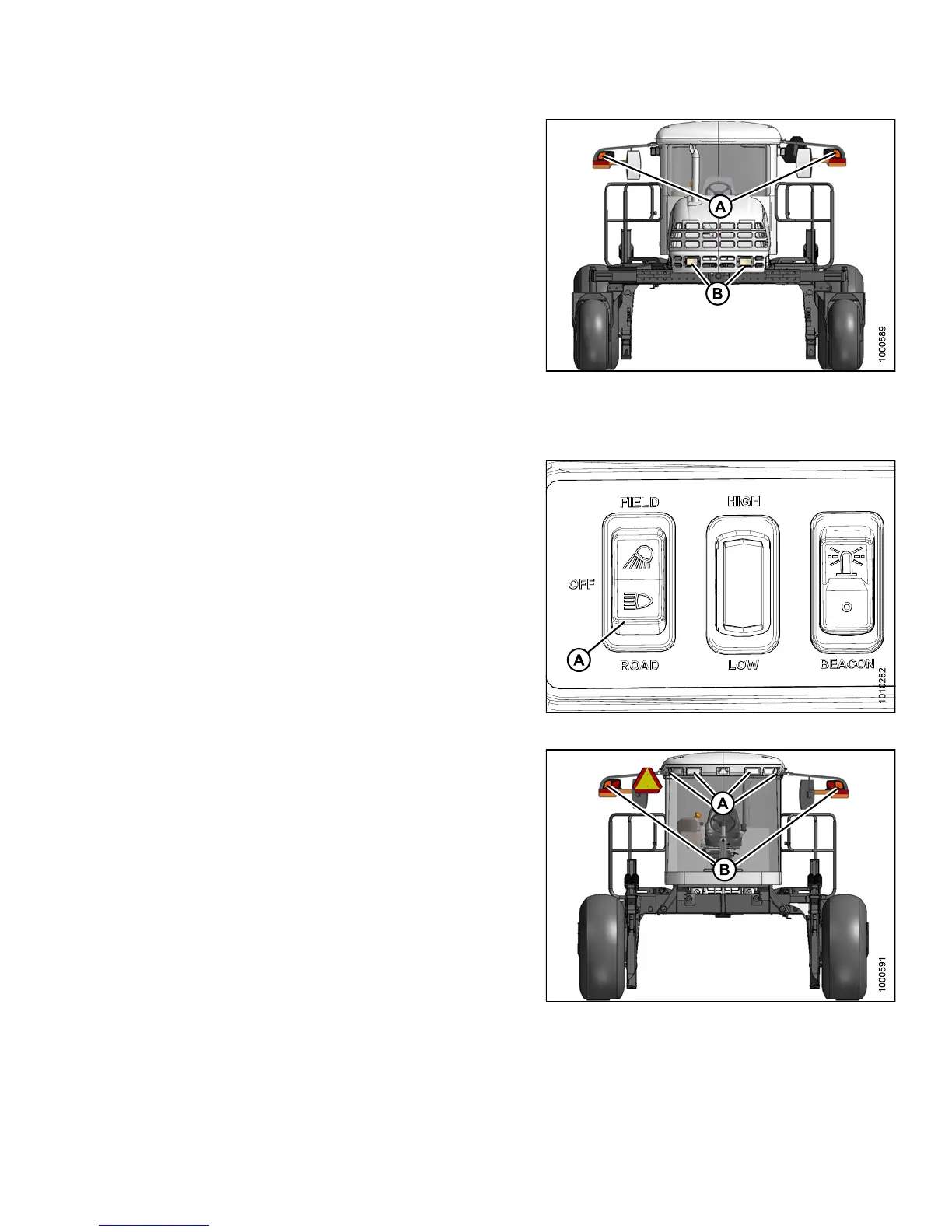

Figure 3.22: Engine-Forward: Front View
3.7.3 Cab-Forward Lighting: Road (Optional)
If equipped, the following lights are functional with
switch (A) in the ROAD position:
Figure
3.23: Road Light Sw itch
• Four lights (A) in cab roof
• Amber turn signals and hazard lights (B) on mirror
supports visible from both front and rear
Figu
re 3.24: Cab Forward: Front View
