3 Operator’s Station
The operator’s station is designed for operating the windrower in a cab-forward mode (working mode) or in an
engine-forward mode (transport mode). The operator’s station, which includes the seat, console, and steering
column, pivots 180 degrees so that the Operator maintains access to the windrower controls and gauges regardless
of the direction of travel.
3.1 Operator Console
The console contains controls to operate the windrower, as
well as amenities fo r the Ope rator. The co ns ole position is
adjustable to suit each particular Operator.

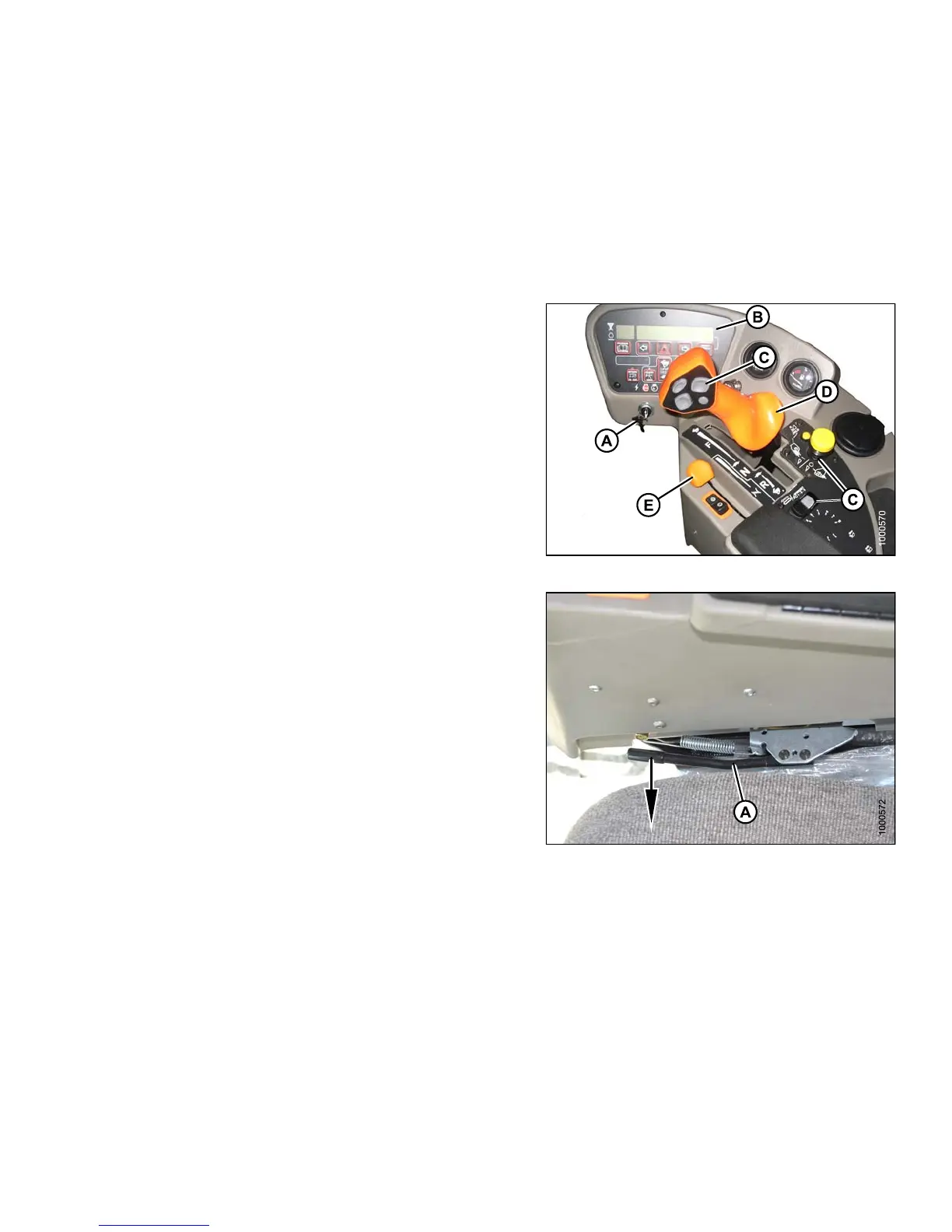

Figure 3.1: Operator Console
1. Adjusting fore-aft and height:
a. Pull lever (A) and slide console fore o r aft to the
desired position.
b. Release lever to lock console.
Figure 3.2: Seat Fore-Aft
147649 39 Revision A
