MAINTENANCE AND SERVICING
Replacing a Console Gauge Light
To replace a light inside one of the console g auges, follow these steps:
1. Shut down engine and remove key. Turn lights OFF.
2. Remove the appropriate gauge access hole decal (A)
behind the operator ’s console.

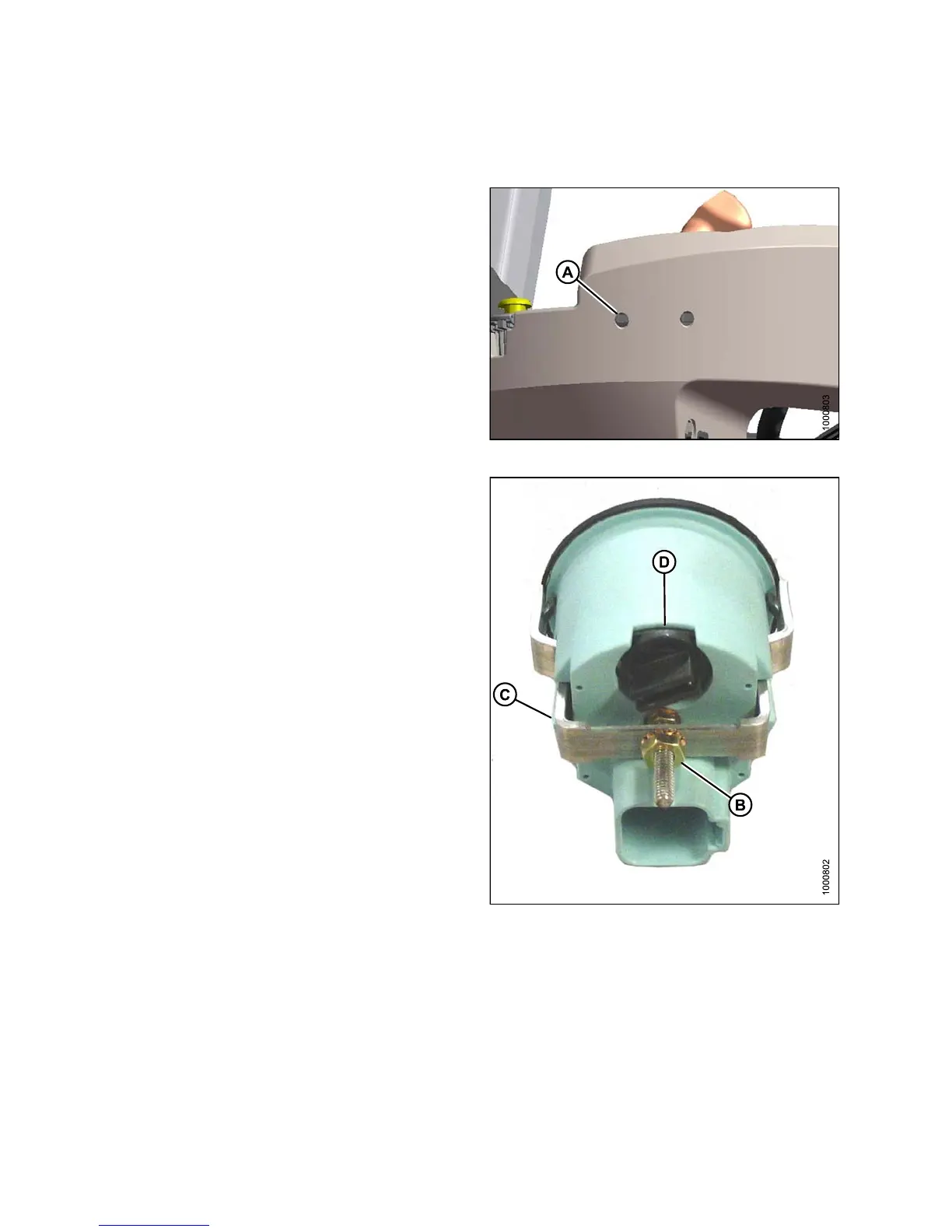

Figure 5.1
70: O perator Console
3. Remove nu t (B) se cu rin g m ounting bracket (C) to
gauge inside the console.
4. Pull gauge out from console. It is NOT necessary to
disconnect the wiring harness from the back of gauge.
5. Twist bulb holder (D) counterclockwise until loose and
pull bulb holder from back of gauge.
6. Insert new bulb into gauge and turn clockwise u ntil
it locks.
7. Push gauge into console.
8. Locate bracket (C) onto back of gauge and secure with
nut (B). Tighten nut.
9. Replace gauge access-hole decal.
Figure 5.171: Back Of Console Gauge
147649 394 Revision A
