MAINTENANCE AND SERVICING
3. At the base of the steering column, check
dimension (C) at spring. It should be 5/8 in. (16 mm).
Adjust dimension as follow s:
a. Loosen nut (A) and turn nut (B) to ac hie ve 5 /8 in.
(16 mm) dimension (C).
b. Tighten nut (A) against nut (B) to secure position.
c. Check that steering chain is taut and steering shaft
is free to rotate .

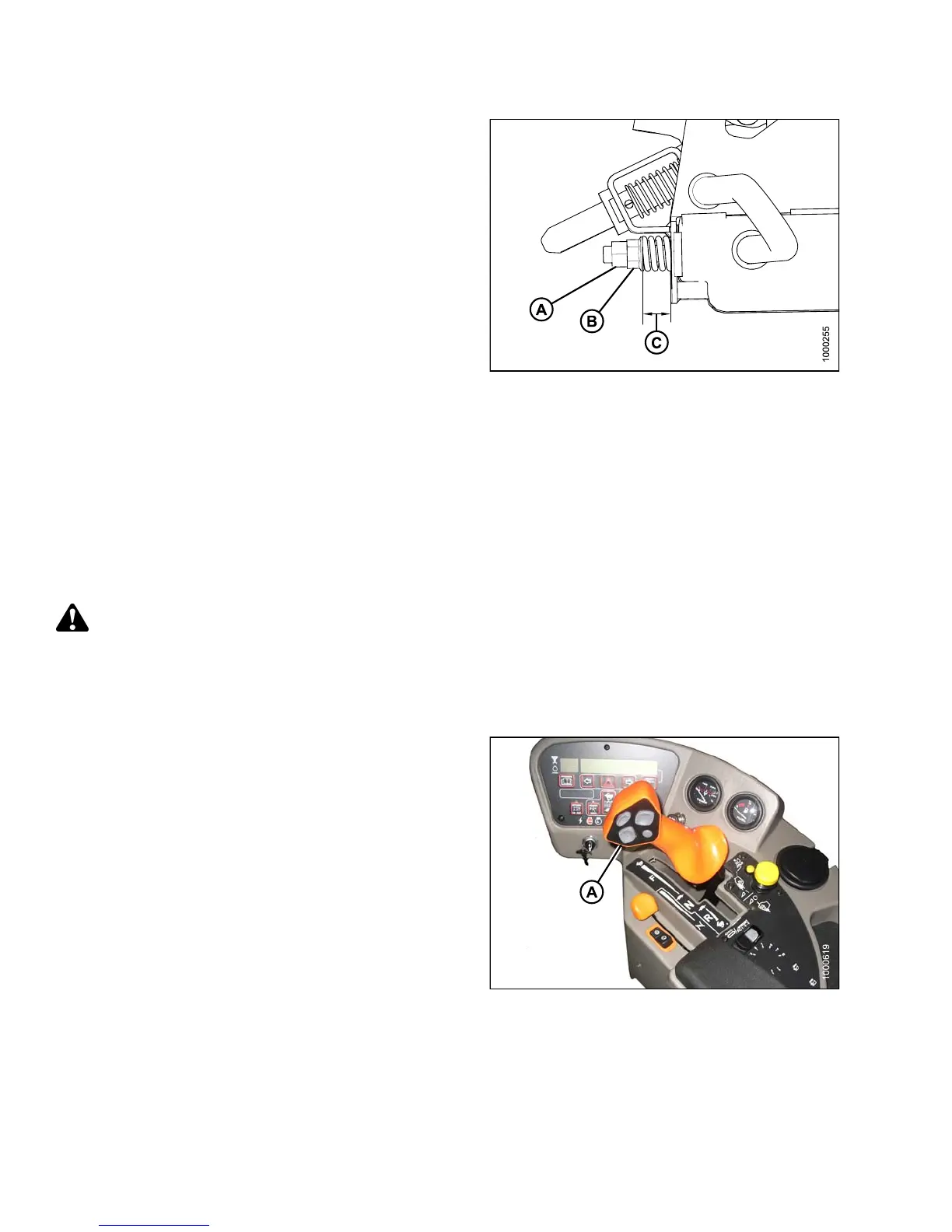

Figure 5.26: Steering Tension Adjuster
5.5.5 P ark Brake
The brake i
s applied when the interlock is fully engaged. To engage the interlock and the brake, the ground speed
lever (GS L
) must be in the N-DETENT position and the steering wheel centered.
Adjustin
g and Replacing Interlock Switch
The ground speed lever (GSL) switch is located inside the console, but can easily be removed for adjustment or
replacement. Check that GSL contacts switch lever and pushes plunger.
DANGER
To avoid bodily injury or death from unexpected startup of the machine, always stop the engine and remove
the key from the ignition before leaving the operator’s seat for any reason.
Adjust or rep lace switch as follows:
1. Place GSL (A) in N-DETENT, shut down engine, and
remove key.
Figure 5.27:
Operator Console
147649 322 Revision A
