MAINTENANCE AND SERVICING
9. Connect lamp plug (A) to main harness connector (B).

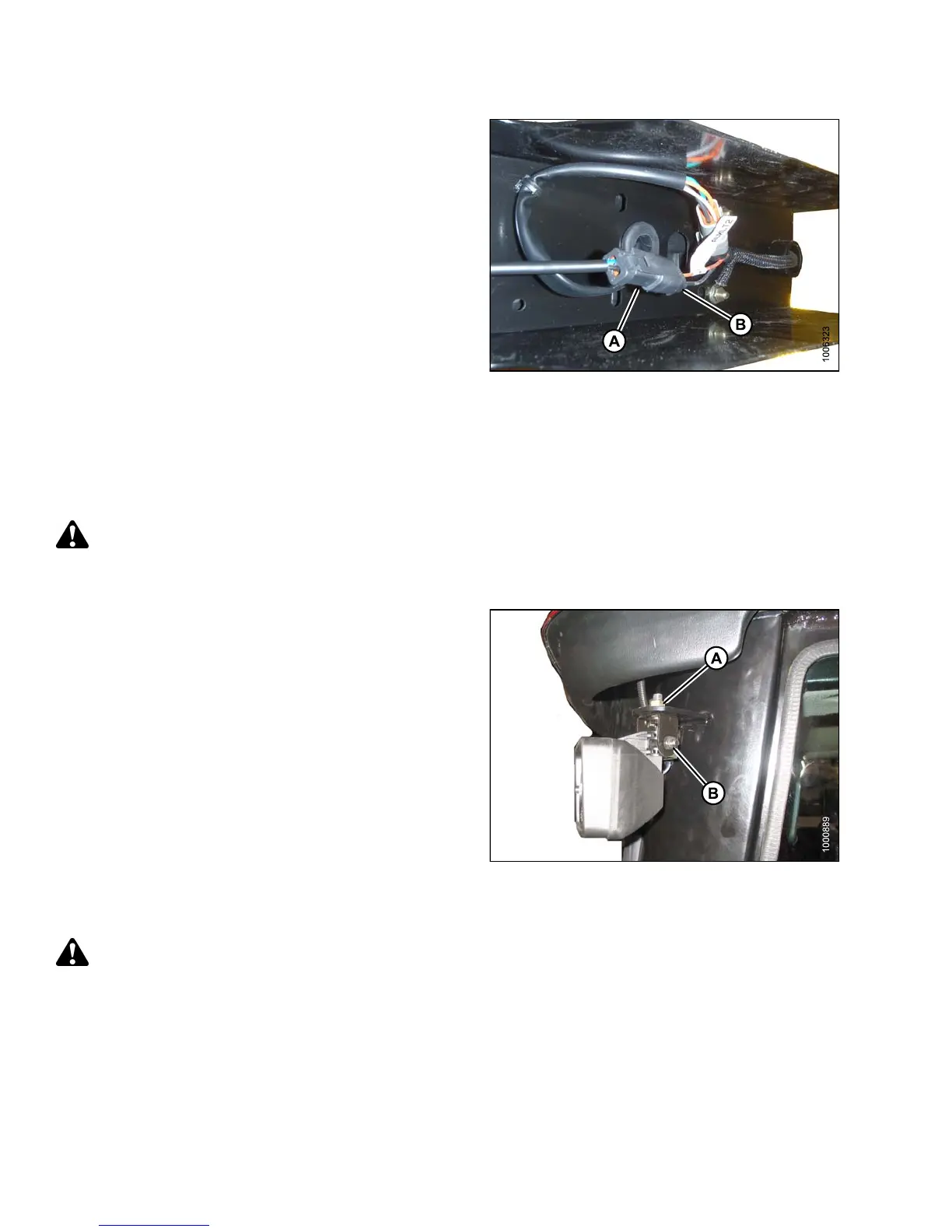

Figure 5.154: HID Auxiliary Light Harness
Flood Lights: Rear
Adjusting
Rear Flood Lights
The rear flood lights are best adjusted with the machine in the field (or equivalent) to suit Operator preference.
DANGER
To avoid bodily injury or death from unexpected startup of the machine, always stop the engine and remove
the key from the ignition before leaving the operator’s seat for any reason.
1. Shut down engine and remove key. Turn lights ON.
2. Loose n bolts ( A) and (B).
3. Position light to desired position.
4. Tighten bolts (A) and (B).
Figure 5.155: Rear Flood Lights
Replacing Bulb in Rear Flood Light
DANGER
To avoid bodily injury or death from unexpected startup of the machine, always stop the engine and remove
the key from the ignition before leaving the operator’s seat for any reason.
