OPERATION
4.2 Symbol Definitions
The following symbols are used to depict functions or reactions at the various instruments and controls.
Learn the m eaning o f these symbols before operating the windrower.
4.2.1 Engine Functions
These are the symbols that are used on the console.

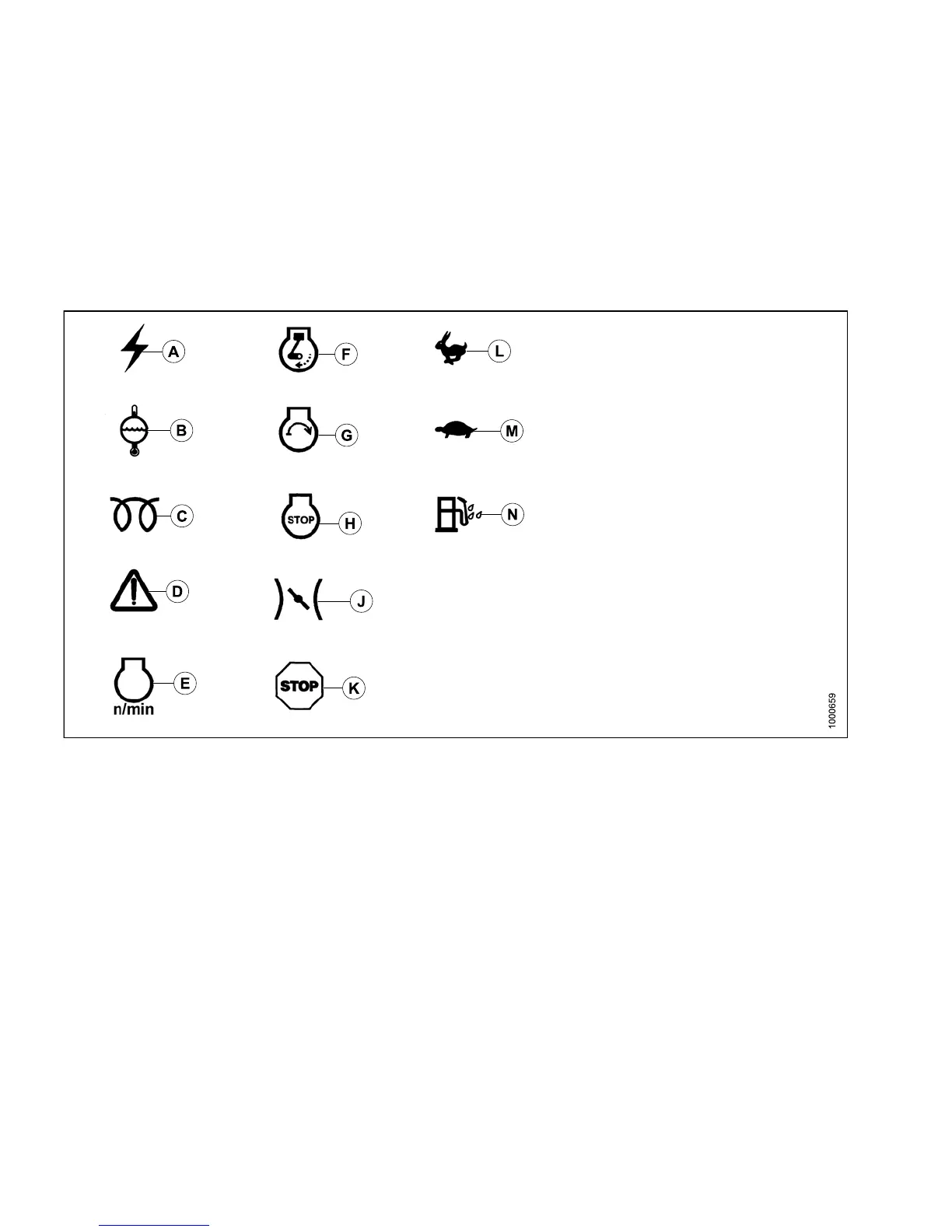

Figure 4.1: Engine Function Symbols
A - Electrical Power – Accessories
B - Engine Coolant Temperature C - Engine Glow Plu gs
D - Engine Malfunction
E - Engine rpm F - Engine Run
G - Engine Start H - Engine Stop
J-En
gine Throttle
K-En
gine Urgent Stop
L-Fast
M-Sl
ow
N-WaterinFuel
147649 154 Revision A
