OPERATION
4.6.9 D eck Sh i
ft Control
When connected to a draper header with the deck shift option, hydraulic deck shift control allows you to select the
deck position and draper rotation of the header from the operator’s station. It selects crop delivery from the left
side, center, or right side of the header.
Deck Shift
CAUTION
Check to be sure all bystanders have cleared the area.
Shift decks as follows:
1. Engage header by pushing down on the yellow
HEADER DRIVE button while pulling up on the blac k
ring at the base of the switch.
2. Push the switch (A) to desired delivery position.
Deck(s) will move and direction of drapers will change
accordingly.
3. Operate windrower.

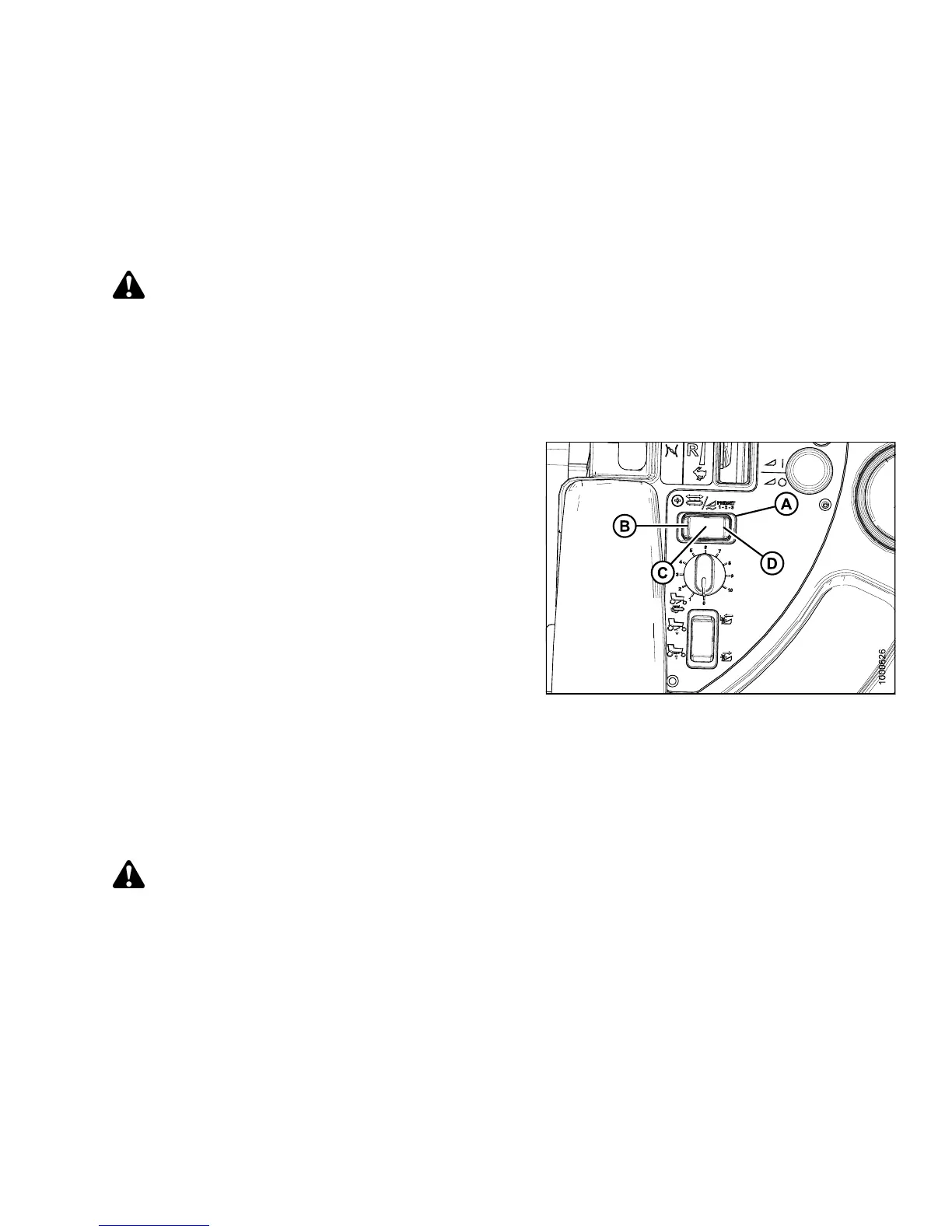

Figure 4.291: Deck Shift Switch
A - Deck Shift Switch B - Left Side Delivery
C - Center Delivery D - Right Side Delivery
Setting Float Options with Deck Shift
For draper headers equipped with the deck shift option, the header float can be set for each deck position. Float is
maintained when the decks are shifted.
CAUTION
Check to be sure all by stan d e rs have cleared the area.
Program the float as foll
ows:
1. Engage header.
147649 291 Revision A
