MacDon M155 - Replacing Bulbs in Red and Amber Lights; Replacing Red Tail Lights (if Installed)

MAINTENANCE AND SERVICING
Replacing Bulbs in Red and Ambe r Lights
To replace bulbs in red and amber lights, follow these steps:
DANGER
To avoid bodily injury or death from unexpected startup of the machine, always stop the engine and remove
the key from the ignition before leaving the operator’s seat for any reason.
1. Shut down engine and remove key. Turn lights OFF.
NOTE:

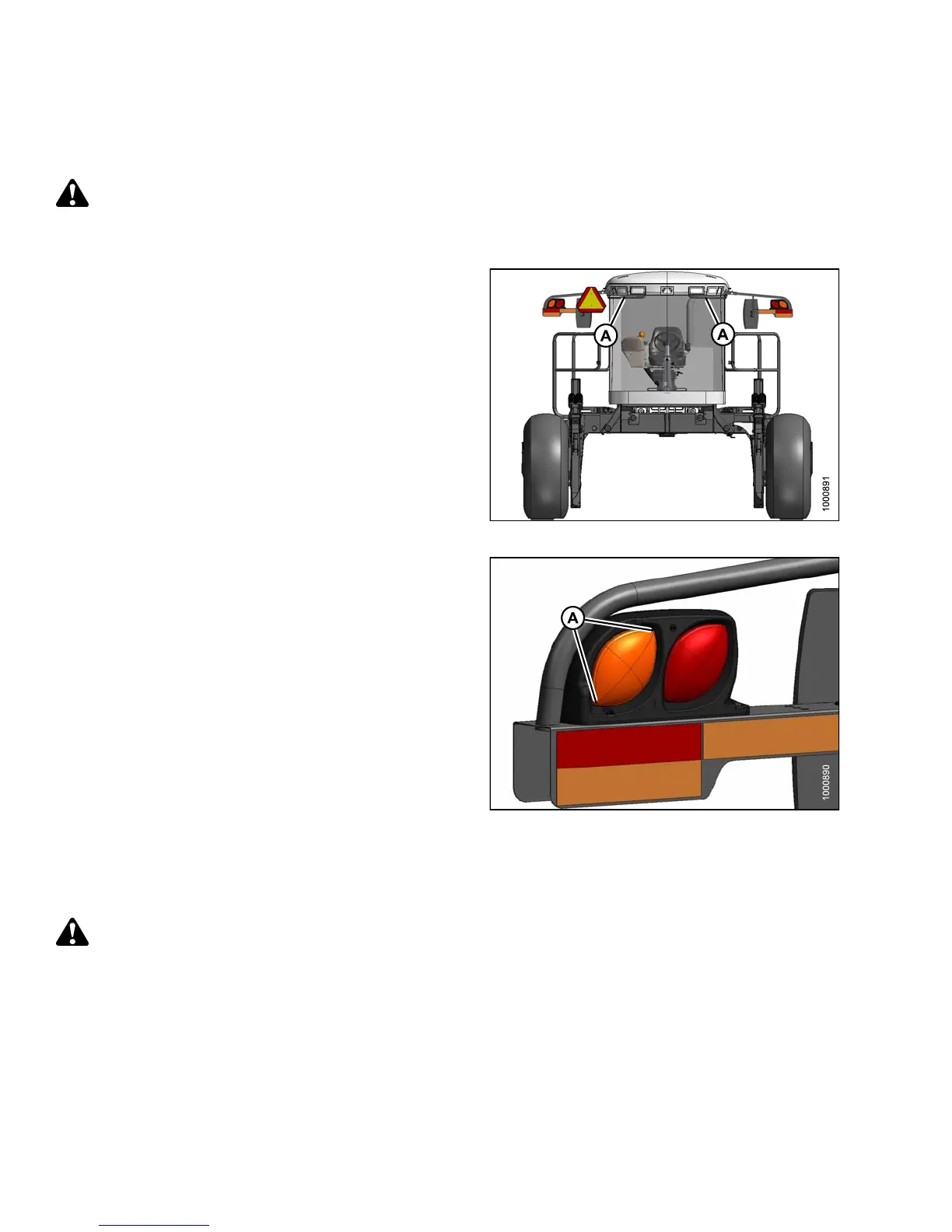

Hold onto the handholds (A) on the cab front
corners and stand on the header anti-slip strips,
or stand on the maintenance platform when
accessing the red and amber lights.
Figure 5.159: Cab Handholds
2. Remove two screws (A) from lens and remove lens.
3. Push and twist light bulb to remove from socket.
4. Install new bulb in socket ensuring that bulb b ase is
properly engaged in socket.
• Use Bulb Trade #1157 for red tail lights
• Use Bulb Trade #1156 for amber lights
5. Reinstall lens with screws (B).
Figure 5.160: Red and Amber Lights
Replacing Red Tail Lights (if ins talled)
To replace the red tail lights, follow these steps:
DANGER
To avoi
d bodily injury or death from unexpected startup of the machine, always stop the engine and remove
the ke
y from the ignition before leaving the operator ’s seat for any reason.
1. Shut down engine and remove key. Turn lights OFF.
147649 388 Revision A
