MacDon M155 - Header Functions

OPERATION
4.2.3 Header Functions

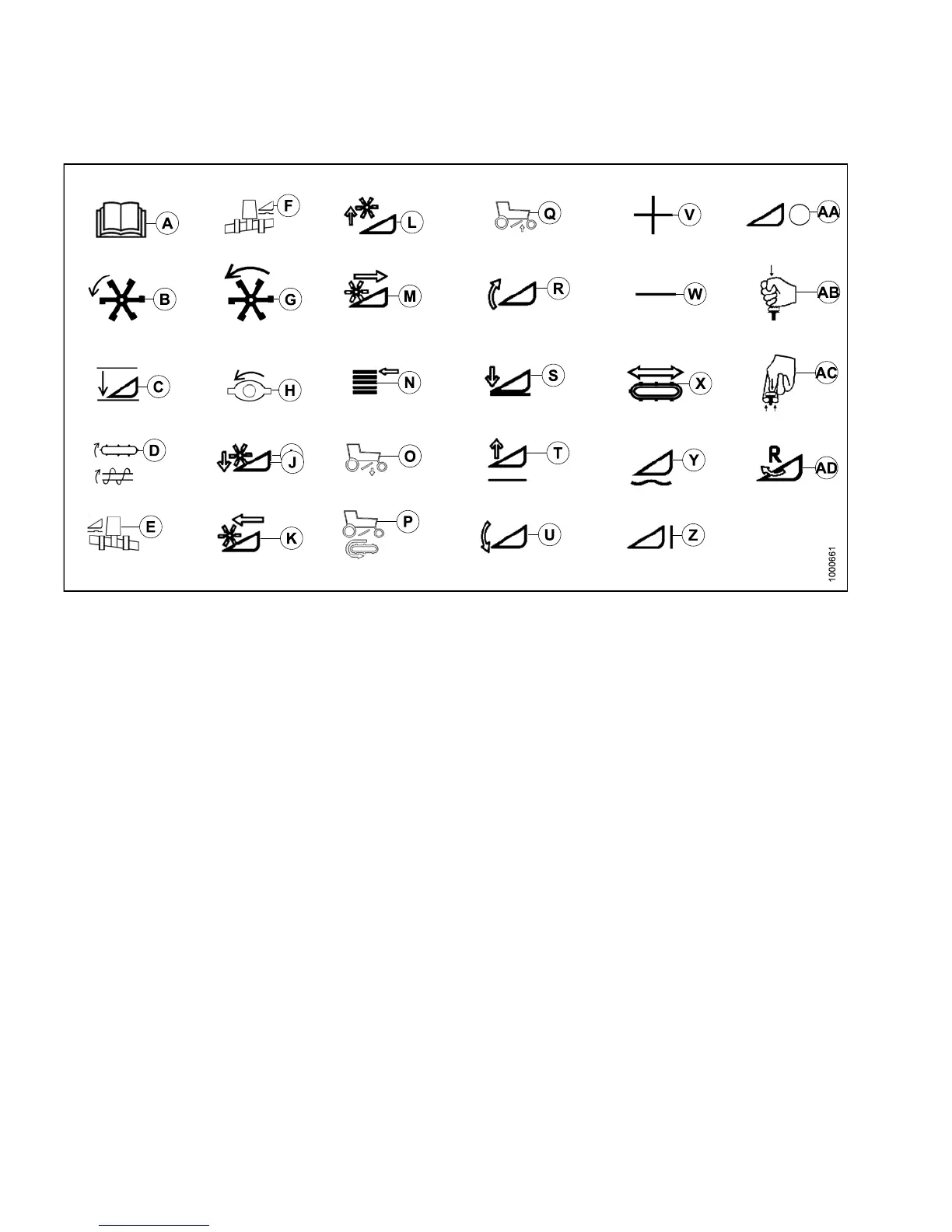

Figure 4
.3: Header Function Symbols
A-Progr
am
B-Heade
rIndex
C - Return to Cut
D - Conve
yor/Auger Speed
E-Float
Left
F - Float Right
G - Reel Speed H - Disc Speed
J - Reel Down
K - R eel Forward L - Reel Up M - Reel Rearward
N - Display Select O - DWA Down P - DWA Draper Speed
Q-DWAUp
R-He
ader Tilt Up
S - Header Down
T - Header U p U - Header Tilt Down V - Increase
W - Decrease
X - Deck Shift
Y-Float
Z - Header Engage AA - Header Disengage A B - Push Down Header Disengage
AC - Pull Up Header Engage
AD
- H eader Reverse
147649 156 Revision A
