OPERATOR’S STATION
CAUTION
Check to be sure all bystanders have cleared the area.
7. Press SELECT (D) until AC T IVATE HEADER HT is
displayed on the upper line.
• DOWN/U P is displayed on the lower line.
8. Press and hold left (B) arrow to lower header or, press
and hold right (C) arrow to raise header. Verify header
is functioning properly.
9. Press PROGRAM (A) to exit Programming
Mode or press SELECT (D) to proceed to next
ACTIVATE FUNCTION.

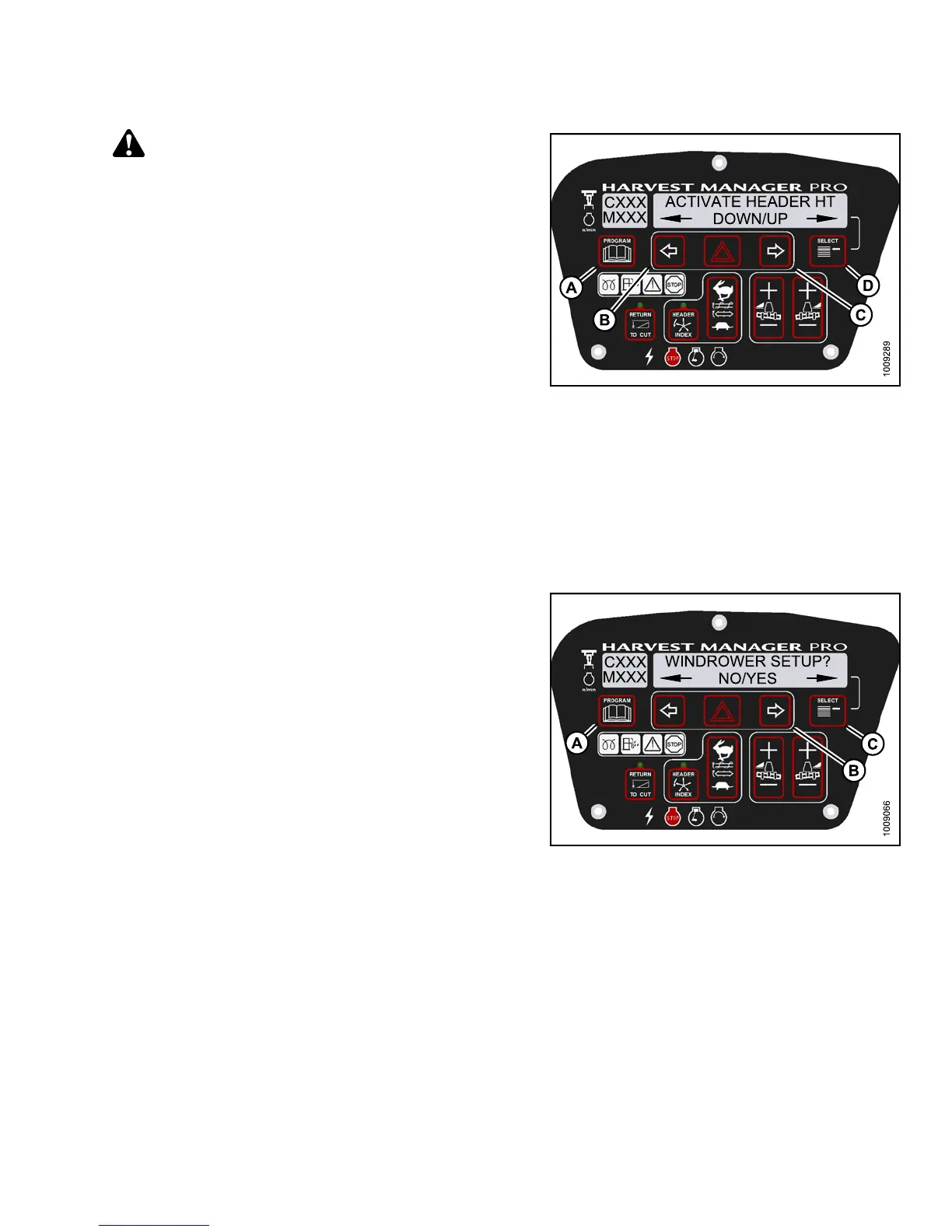

Figure 3.175: M155 Header Height
Testing the Reel Up/Down Activate Function Using the Cab Display Module (CDM)
NOTE:
•Thisproc
edure is for draper headers only.
• The head
er MUST be attached to the windrower to perform this procedure. The cab display module (CDM)
automat
ically adjusts its programming for each header.4.5 Attaching and Detaching Headers, page 213.
1. Turn ignition key to RUN , or start the eng ine.
2. Press PROGRAM (A) and SELECT (C) on cab display
module (CDM) to enter Programming Mode. Press
SELECT (C).
• WINDROWER SETUP? is displayed on the
upper line.
Figure 3.176: M155 CDM Programming Buttons
147649 137 Revision A
