OPERATOR’S STATION
CAUTION
Check to be sure all bystanders have cleared the area.
7. Press SELECT (E) until REEL DRV SPD XXXX is
displayed on the upper line.
IMPORTAN T:
Do NOT over speed the reel.
8. Press and hold HAZARD (C) button.
• Press left (B) arrow to decrease reel speed.
• Press right (D) arrow to increase reel speed.
Verify the reel drive is functioning properly.
9. Release the HAZARD (C) button. The reel will stop.

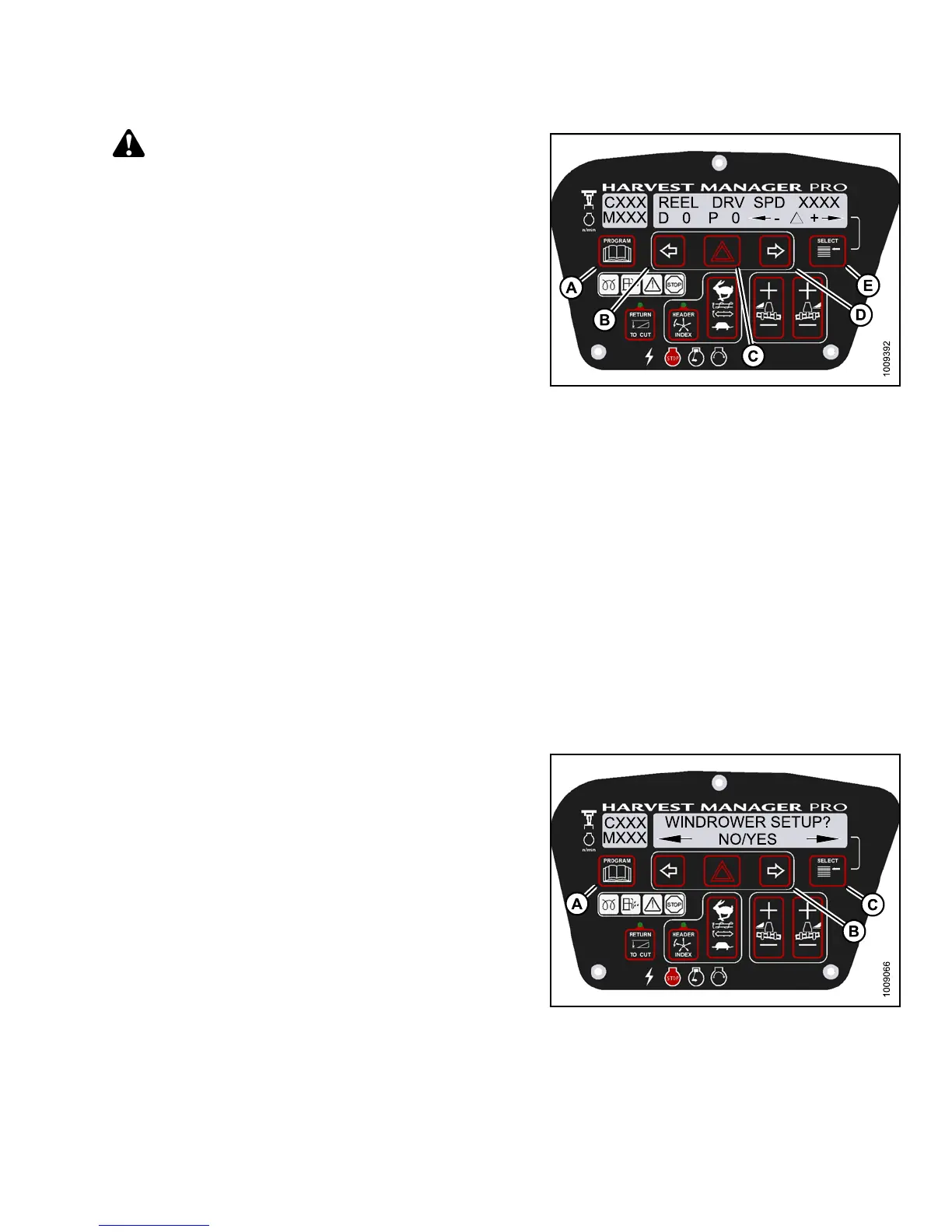

Figure 3.204: M155 Reel Drive
10. Press PROGRAM (A) to exit Programming Mode or
press SELECT (E) to proceed to next ACTIVATE
FUNCTION.
Testing the Rotary Disc Drive Circuit Activate Function Using the Cab Display Module (CDM)
IMPORTAN T:
Do not over-speed a drive for a significant length of time. Doing so can lead to vibration, belt failures, or
other over-speeding related problems.
NOTE:
• A rotary disc header MUST be attached to windrower to follow this procedure.
• The engine MUST be running to perform this procedure.
1. Turn ignition key to RUN , or start the eng ine.
2. Press PROGRAM (A) and SELECT (C) on cab display
module (CDM) to enter Programming Mode.
• WINDROWER SETUP? is displayed on the
upper line.
Figure 3.205: M155 CDM Programming Buttons
147649 149 Revision A
