OPERATOR’S STATION
1. Turn ignition key to RUN, or start the engine.
2. Press PROGRAM (A) and SELECT (C) on cab display
module (CDM) to enter Programming Mode.
• WINDROWER SETUP? is displayed on the
upper line.

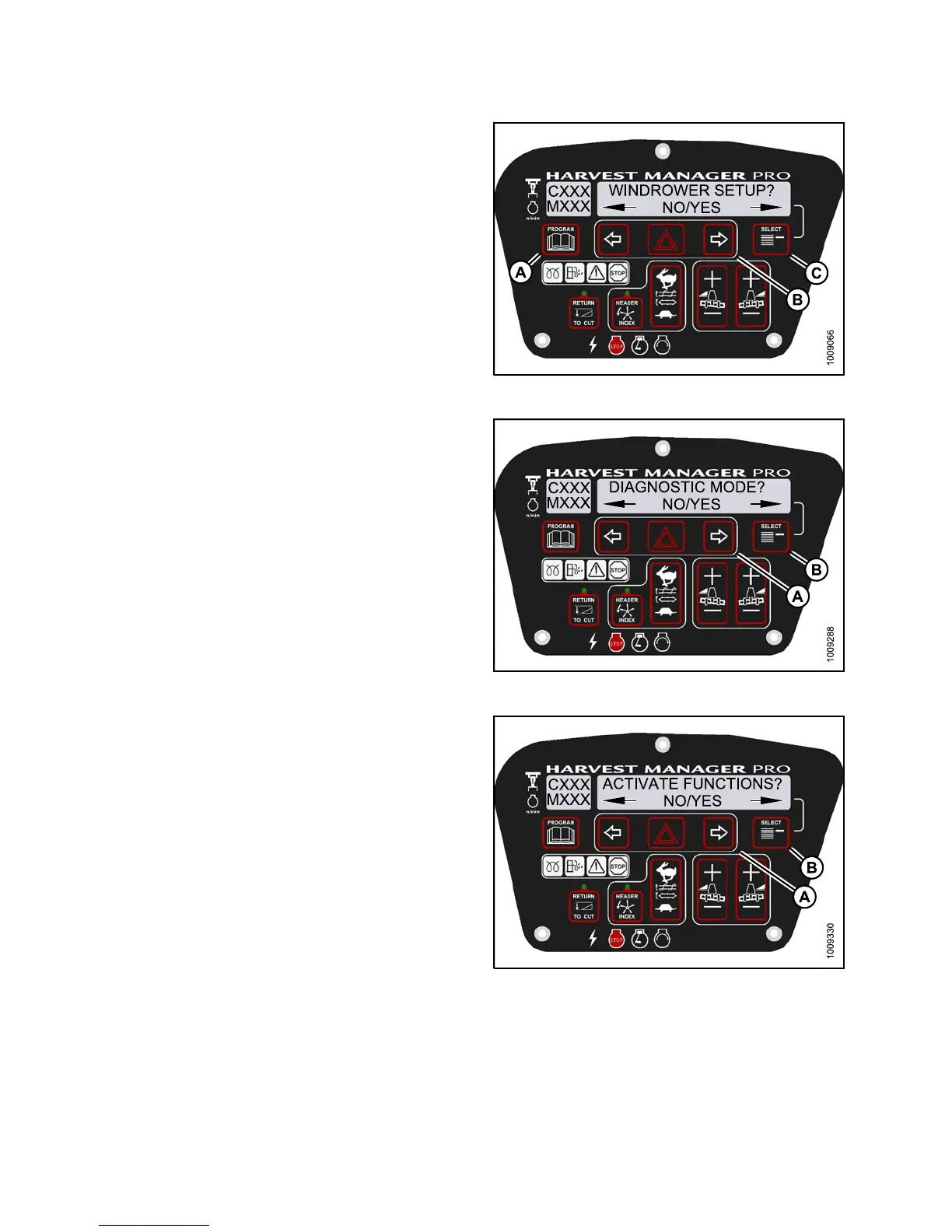

Figure 3.201: M155 CDM Programming Buttons
3. Press SELECT (B) until DIAGNOSTIC MODE? is
displayed in upper line.
• NO/YES is displayed on the lower line.
4. Press right (A) arrow to select Yes. Press SELECT (B).
Figure 3
.202: M155 Diagnostic Functions
5. Press SELEC T (B) until ACTIVATE FUN CTIONS? is
displayed on the upper line.
• NO/YES is displayed on the lower line.
6. Press right (A) arrow to select YES. Press SELECT (B).
• ACTIVATE HEADER HT is displayed on the
upper line.
Figure 3.203: M 155 Functions
147649 148 Revision A
