MAINTENANCE AND SERVICING
7. Replace rubber insulator boot (A).
8. Push connector onto light bulb.

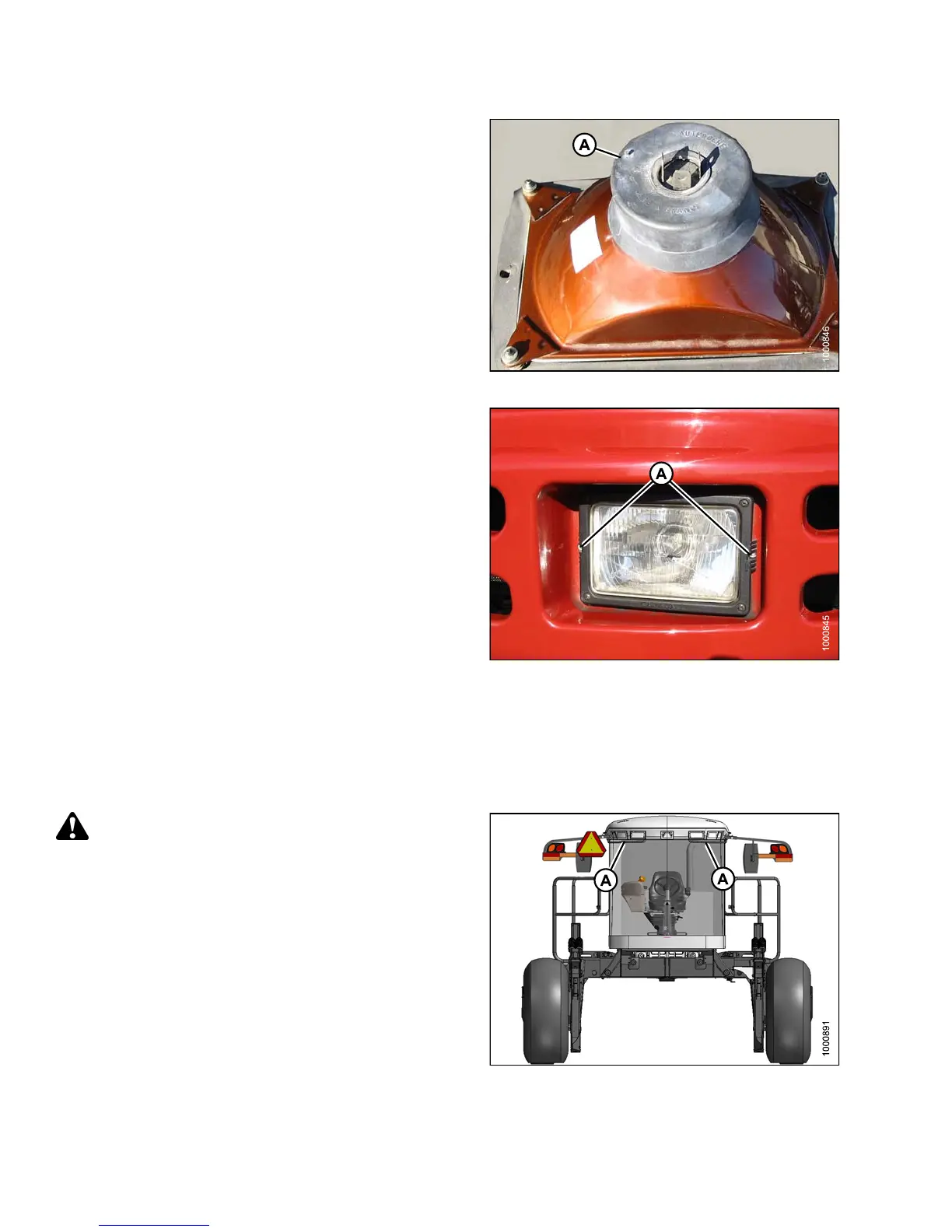

Figure 5.139: Headlight Assembly
9. Position headlight into light receptacle, ensuring top is
up, and secure with screws (A).
NOTE:
Aligning of light should not be necessary.
Figure 5.140: Headlight Assembly
Field Lights: Cab-Forward
Adjusting Field Lights
The fie
ld lights are best adjusted with the machine in the field (or equivalent) to suit Operator preference.
DANGER
To avoid bodily injury or death from unexpected
startup of the machine, always stop the engine and
remove the key from the ignition before leaving the
operator’s seat for any reason.
1. Hold onto handholds (A) on the cab front corners, and
stand on header anti-slip strips.
Fi
gure 5.141: Field Lights
147649 380 Revision A
