MAINTENANCE AND SERVICING
Turn Signal Indicators
If the turn signal indicators on the cab display module (CDM) do not function, contact your MacDon Dealer.
Accessing Circuit Breakers and Fuses
The circuit b
reakers and fuses are located inside a fuse box mounted on the right (cab-forward) side of the
frame under t
he platform.
The circuit b
reakers automatically reset. Fuses are the plastic blade type.
DANGER
To avoid bodily injury or death from unexpected startup of the machine, always stop the engine and remove
the key from the ignition before leaving the operator’s seat for any reason.
Accessthebreakersandfusesasfollows:
1. Stop engine and remove key.
2. Move right (cab-forward) side platform rearward, refer to 5.3.1 Opening Platforms (Standard Position), page
309.
3. Remove wing nut (A) and remove fuse box cover (B).
4. Refer to the decal on inside of cover for identification
of f uses and circuit breakers.
5. A cover may be installed over the circuit breaker.
Remove it to access the breaker.

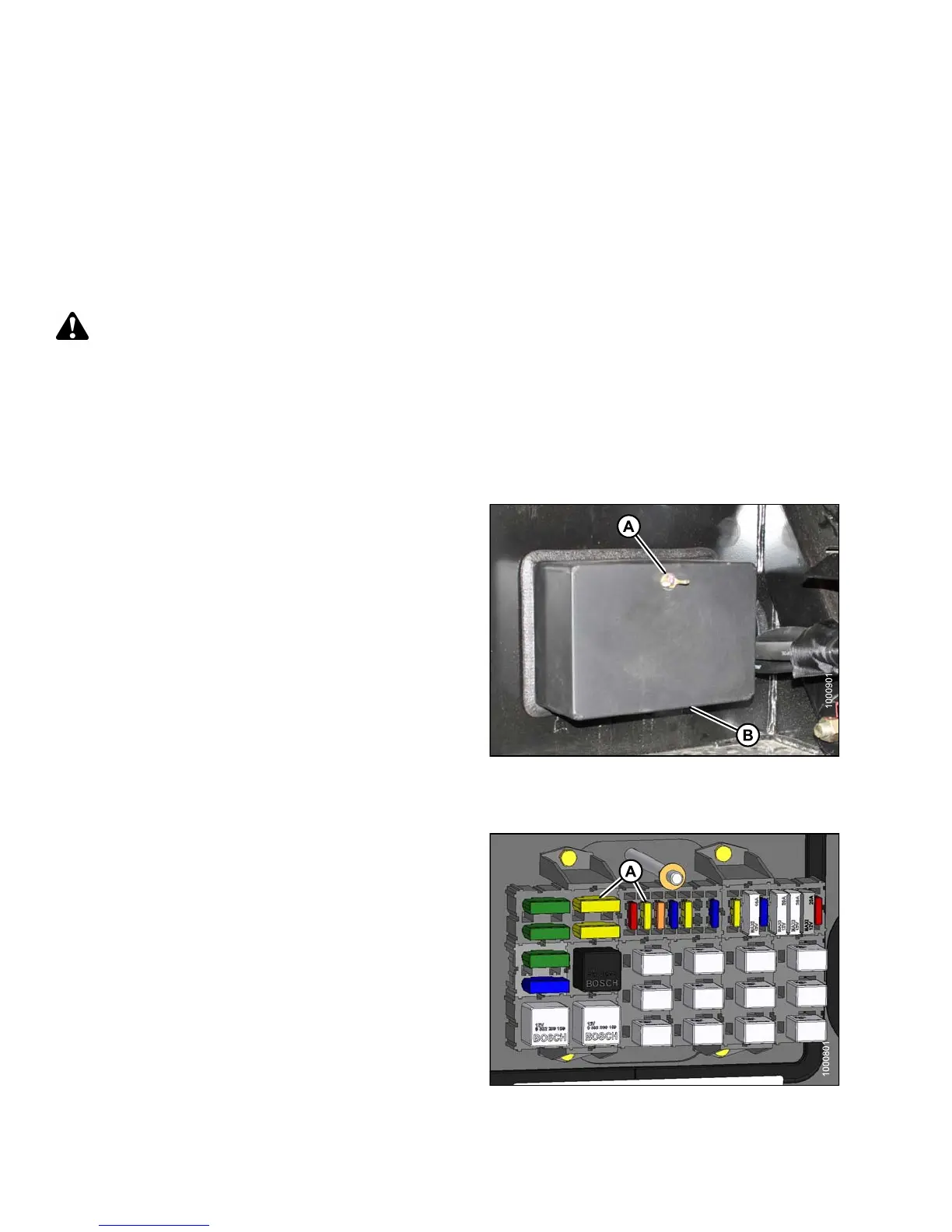

Figure 5.175: Fuse Box
Checking and Replacing Fuses
1. To check fuse, pull fuse (A) out of receptacle and
visually examine.
2. To replace fuse, insert new fuse into receptacle.
IMPORTANT:
Replacement fuses should match rating on decal
shown on Fuse Box Decal, page 398.
Figure 5.176: Fuses
147649 396 Revision A
