MacDon M155 - Header Functions

OPERATOR’S STATION
3.19.2 Header Functions

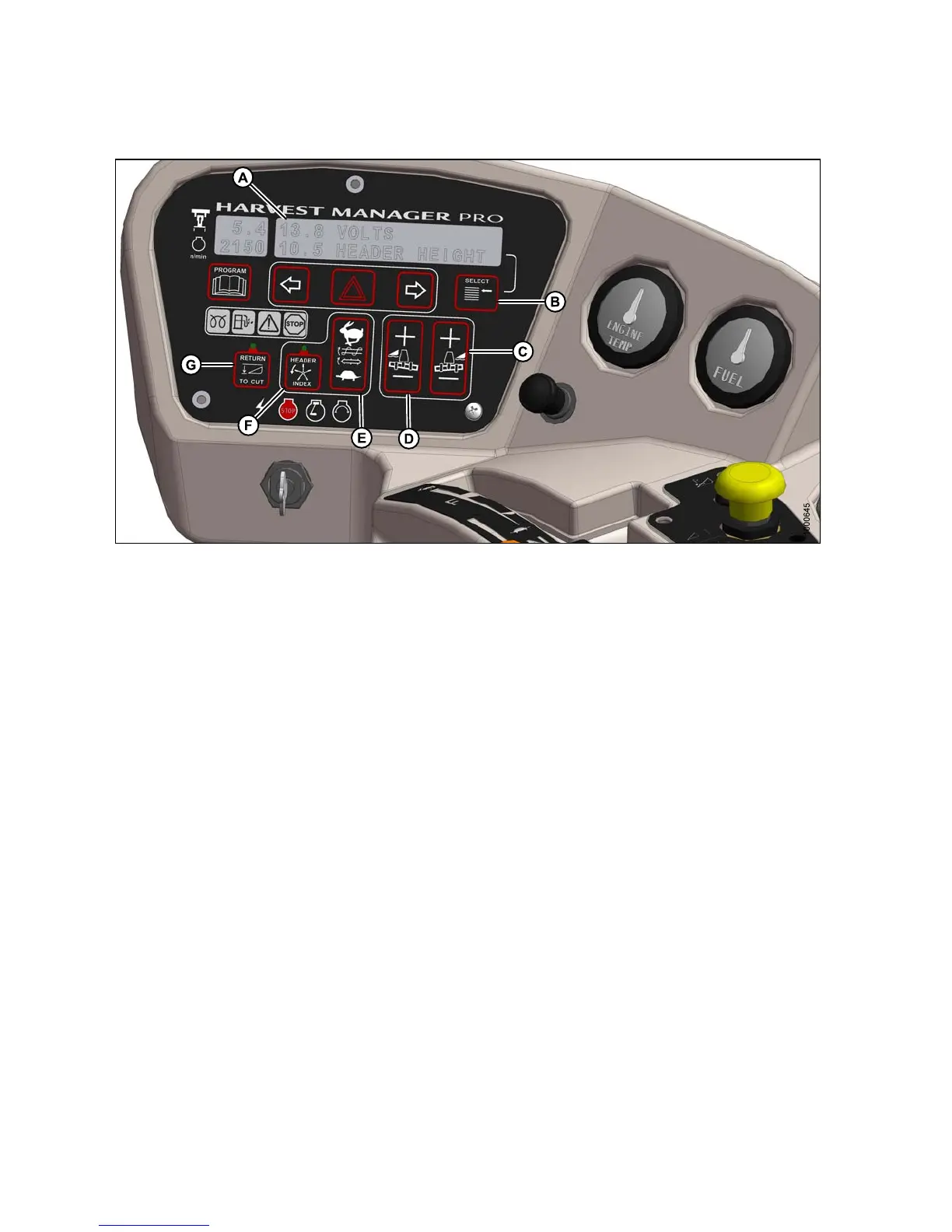

Figure 3.
65: Cab Display Module (CDM)
• (A) DISPLAY: Header functions
• (B) SELECT SW ITC H : Allo ws Operator to select disp la y item o n lower line. Push to SELECT.
• (C) FLOAT SWITCH – Header Right Side: Changes header float. T he system remembers setting with deck shift
option if a ctivated with float setting switch. Push + to Increase. Push – to Decrease.
• (D) FLOAT SWITCH – Header Left Side: Changes header float. The system remembers setting with deck shift
option if a ctivated with float setting switch. Push + to Increase. Push – to Decrease.
• (E) AUGER/DRAPER SPEED ADJUST: Changes auger/draper speed INDEX with INDEX SWITCH ON. Changes
auger/draper SPEED with INDEX SW ITCH OFF. Push upper switch to increase. Push lower switch to decrease.
• (F) HEADER INDEX SWITCH: Links reel and c onveyor speed to ground speed. Push-ON / Push-OFF.
NOTE:
Illuminates in ON position. (Header must be engaged)
• (G) RETURN TO CUT HEIGHT SWITCH: Allows cutting height preset. Push-ON/Push-OFF.
NOTE
:
Illu
minates in ON position. (Header must be engaged)
147649 75 Revision A
