MacDon M155 - Testing the Header Tilt Activate Function Using the Cab Display Module (CDM)

OPERATOR’S STATION
Testing the Header Tilt Activate Function Using the Cab Display Module (CDM)
NOTE:
• The header MUST be attached to the windrower to perform this procedure. The cab display module (CDM)
automatically adjusts its programming for each header. For more information, refer to 4.5 Attaching and
Detaching Headers, page 213.
• This procedure requires installation of the optional Hydraulic Center-Link (MD #B4650) .
• The engine MUST be running to perform this procedure.
1. Turn igniti
on key to RUN, or start the engine.
2. Press PROGR
AM (A) and SELECT (C) on cab display
module (CDM
) to enter Programming Mode.
•WINDROWER
SETUP? is displayed o n the
upper line
.

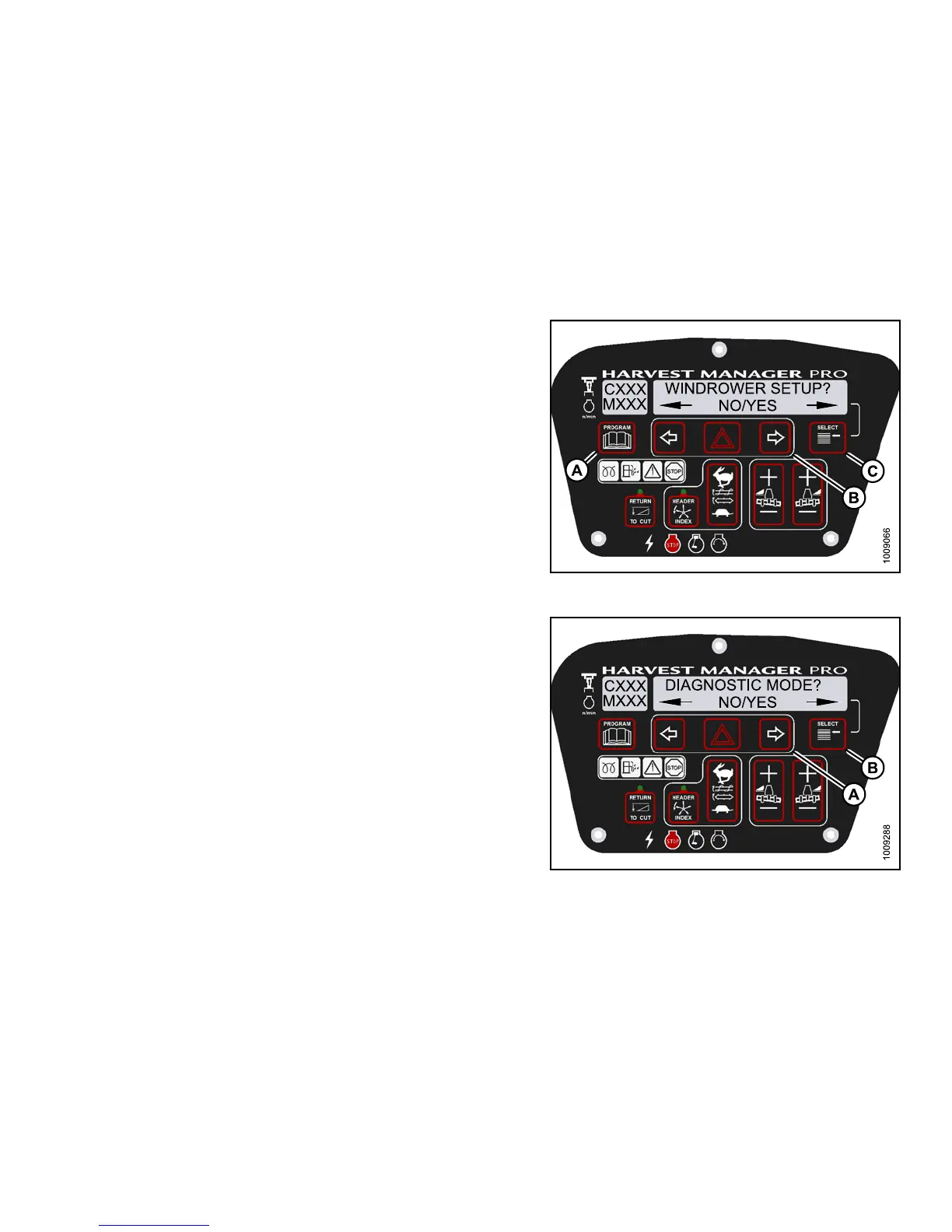

Figure 3.180: M155 CDM Programming Buttons
3. Press SE
LECT (B) until DIAGN OS TIC MODE? is
display
ed in upper line.
• NO/YES i
s displayed on the lower line.
4. Press r
ight (A) arrow to select Ye s. Press SELECT (B).
Figure 3.181: M155 Diagnostic Functions
147649 139 Revision A
