OPERATOR’S STATION
3.19.3 Operat
ing S creens
The cab display module (CDM) and the windrower control module (WCM) provide information on several functions
for the engine, header, and windrower. The information displayed in various operating modes is described in the
following sections.

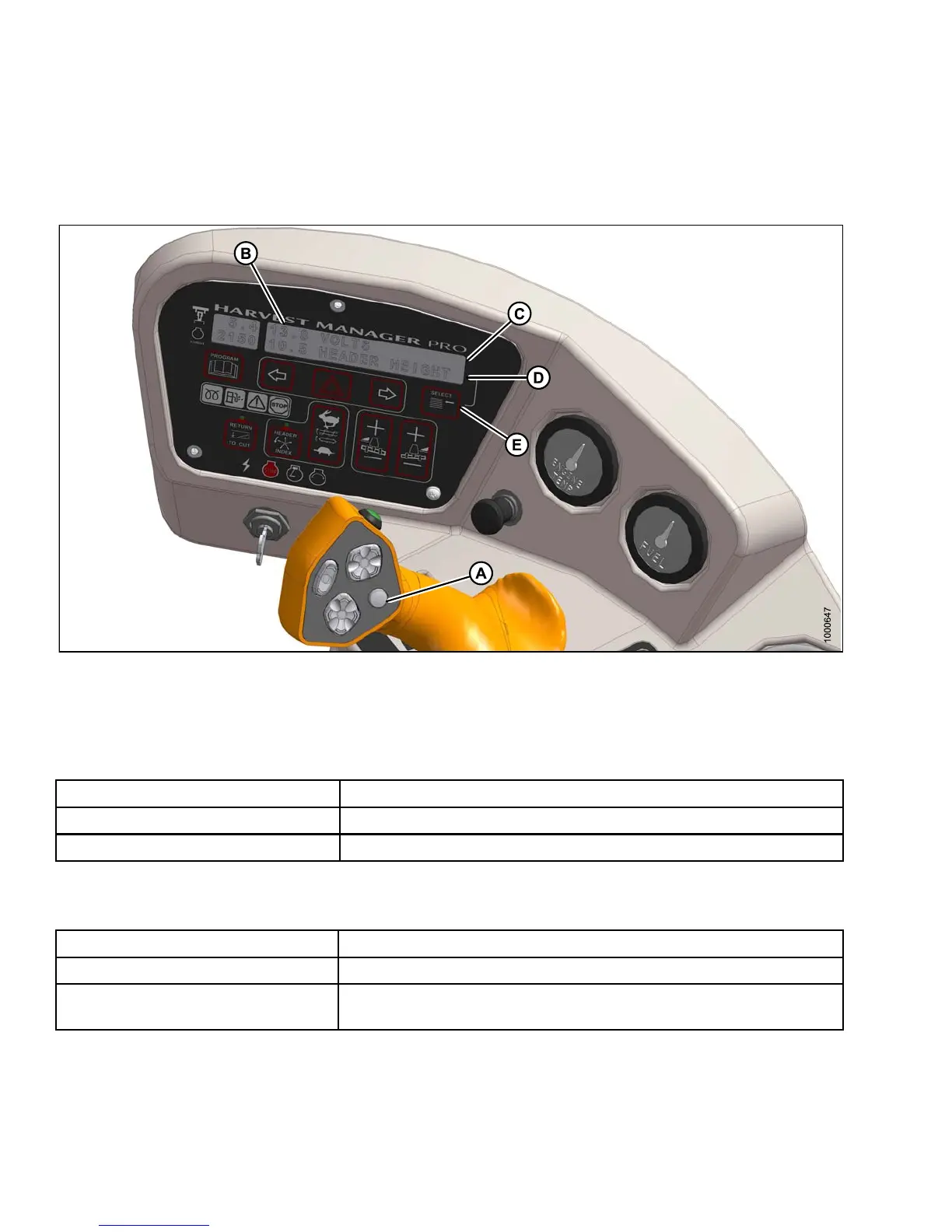

Figure 3.66: CDM Operating Screen
A - Display Selector for Upper Lin e
B-Disp
lay
C - CDM Upper L ine
D - CDM Lower Line E - Display Selector for Lower Line
Ignition ON, Engine Not Running
Display (Upper Line) (2–3 Seconds) Description
HEADER D ISENGA GED Indicates HEADER DRIVE switch is OFF.
IN PA
RK
Indi
cates ground speed lever (GSL) is in N-DETENT.
Engine Running – At Initial S tart Up
Display (upper line) (2–3 seconds)
Description
HEADER TYPE AND SIZE
Ignition start, engine running.
IN PARK
In
dicates ground speed lever (GSL) in N -DETENT.
On
startup.
147649 76 Revision A
