MAINTENANCE AND S ERVICING
1. Pull handle (A) toward the operator’s seat and move
the console fully forward to ease accessibility from the
underside of the console.

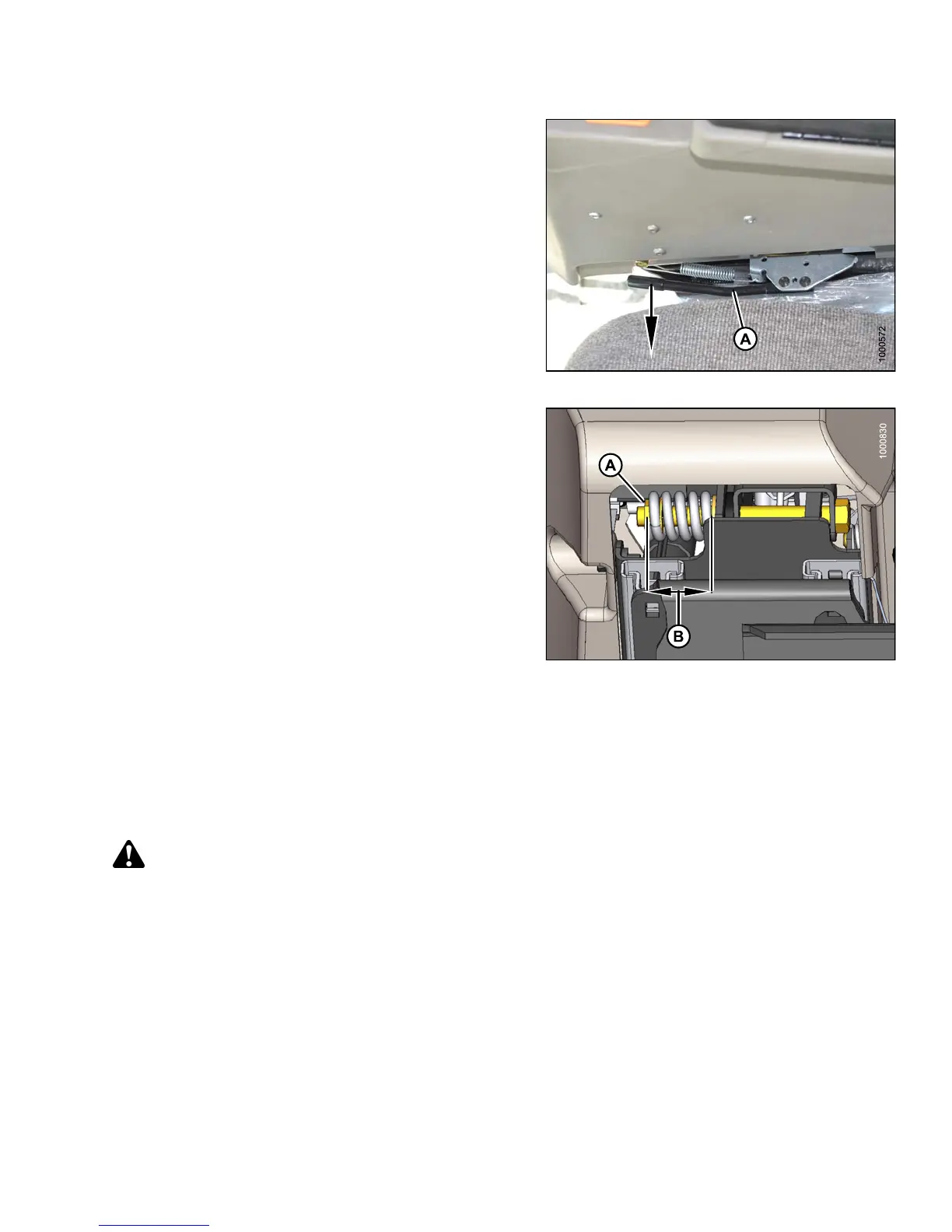

Figure 5.19: Seat Adjustment Handle
2. Set spring dimension (B) to 1-1/4 in. (32 mm).
3. To increase the pivot resistance, turn the nut (A)
clockwise to compress the spring.
4. To decrease the resistance, turn the nut (A)
counterclockwise to release the spring tension.
Figure 5.20: GSL Adjustment Spring
B - Spring Dimension 1-1/4 in. (32 mm)
5.5.4 S teering Adjustments
Checking Steering Link P ivots
The following checks should be performed every year:
DANGER
To avoid bodily injury or death from unexpected startup of the machine, always stop the engine and remove
the key from the ignition before leaving the operator ’s seat for any reason.
