MacDon M155 - Closing Hood (Highest Position)

MAINTENANCE AND SERVICING
2. Locate latch (A) behind grill and lift to release hood.
3. Raise hood until strap (B) (which should be looped
under hooks [C] and [(D]) stops it at approximately a
40° angle.
4. Remove strap from hook (C) and allow hood to rise
slightly further.
5. Removestrapfromhook(D)andallowhoodtorisefully
to approximately 65°.

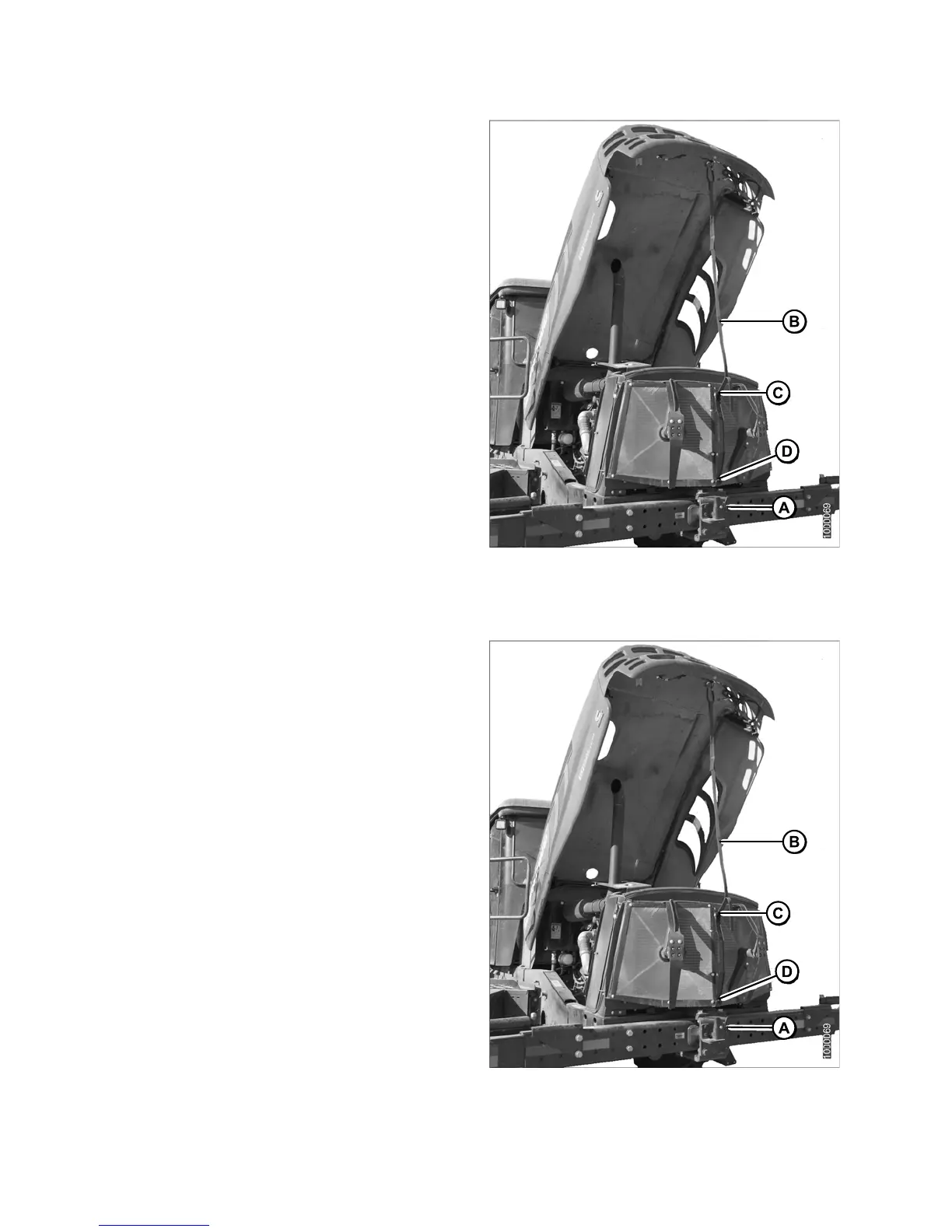

Figure 5.
3: Hood Open (Highest Position)
5.2.4 Cl
osing Hood (Highest Position)
1. Pull down on strap (B) and loop under lower hook (D).
2. Grasp the strap and loop under upper hook (C).
IMPORTANT:
Failure to hook strap may result in it becoming
entangled with the screen clea ners or the latch.
3. Pull down on strap, grasp the hood when within reach,
and lower until hood engages latch (A).
Fig
ure 5.4: Hood Open (Highest Position)
147649 308 Revision A
