MacDon M155 - 2 Product Overview

SAFETY
1.11 Safety Sign Locations

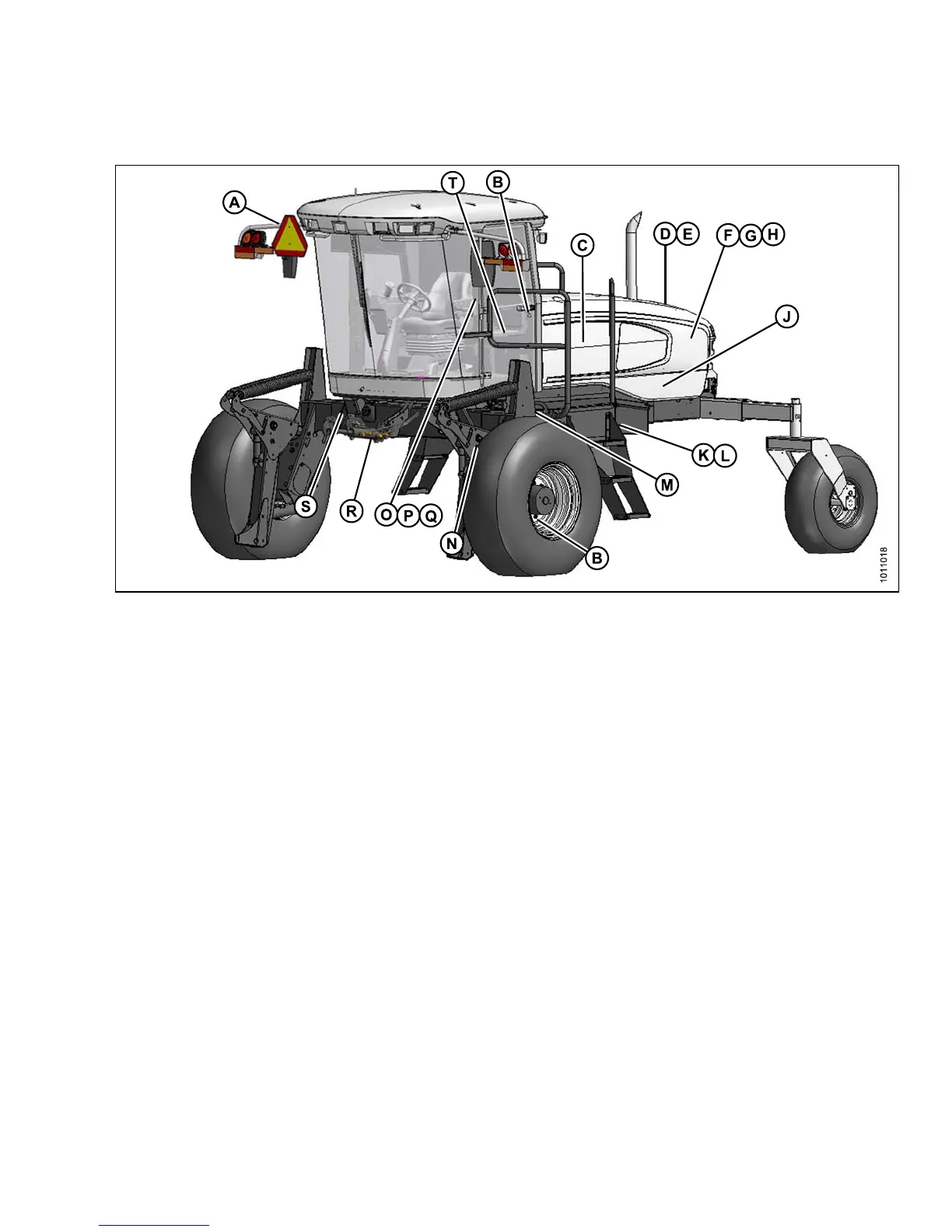

Figure 1
.20: Safety Sign Locations (Left Cab-forward Side)
A - Hazard Sign (MD #135378) B - Cab Door and Rim (MD #166454) C - Oil Reservoir under Hood (MD #166466)
D - Exhaust Cover (MD #166450) E - C lose to Radiator Cap (MD #166461) F - Fan Shroud (Top) (MD #166450)
G-FanSh
roud (Middle) (MD #166451)
H-FanSh
roud (Bottom) (MD #166452)
J-Frame
Opening (MD #166233)
K - Platform (L of Step) (MD #166425) L - Platform (R of Step) (MD #166441) M - Frame at Valve Block (MD #166466)
N - Lift Linkage (MD #166438) O - Inner Post (MD #166457) P - Inner Post (MD #166234)
Q - Inne
r Post (MD #166463)
R-Neut
ral Interlock (MD #166425)
S-Fram
e (MD #166425)
T - Trainers Seat (MD #167502)
147649 13 Revision A
