OPERATION

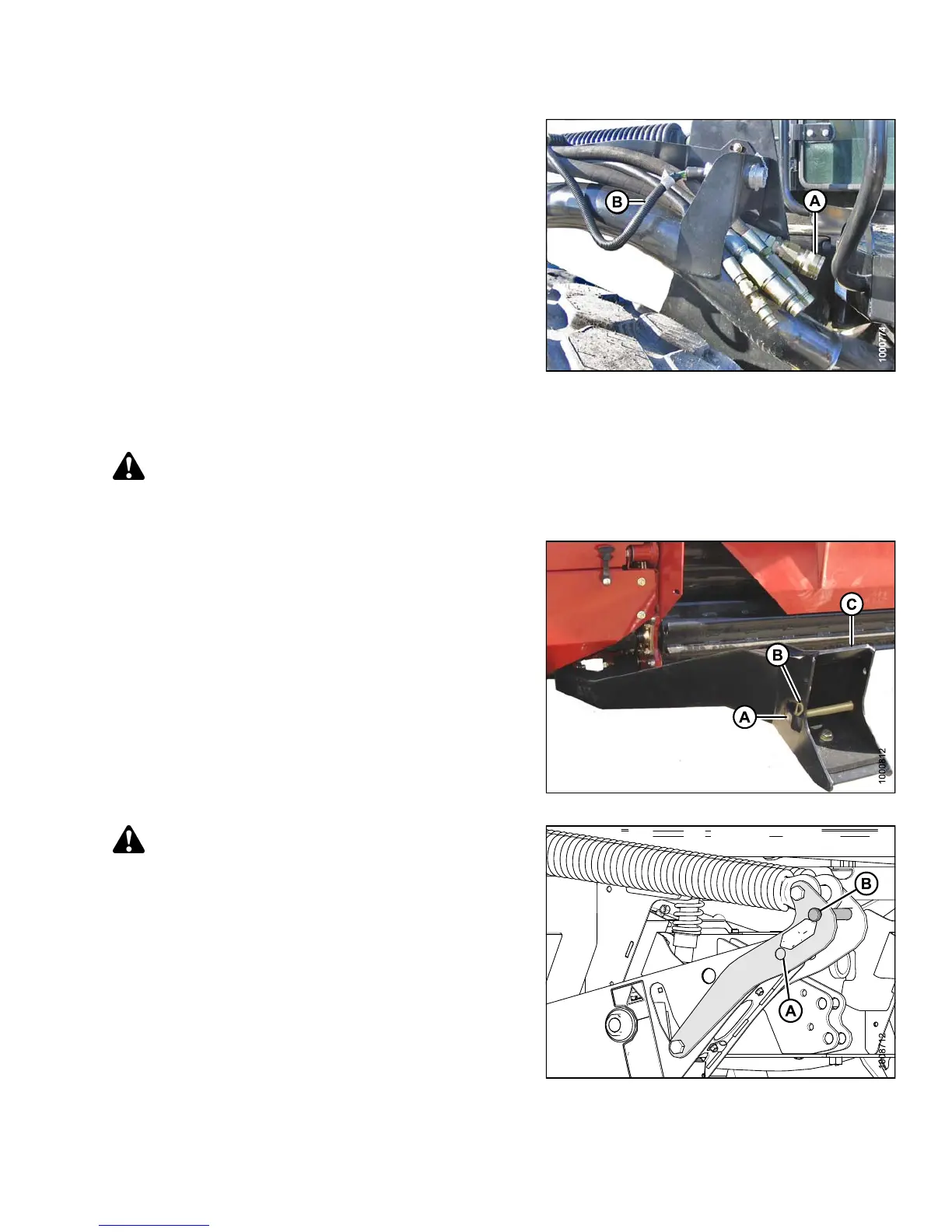

18. Connect header drive hoses (A) and electrical
harness (B) to header. Refer to the rotary disc header
operator’s manual.
Figure 4.246: H e ader Dri ve Ho ses and Harn es s
Attaching an R-Series Header: Mechanical C enter-Link
DANGER
To avoid bodily injury or death from unexpected startup of the machine, always stop the engine and remove
the key from the ignition before leaving the operator ’s seat for any reason.
1. Remove hairpin (B) from clevis pin (A) and remove
clevis pin from the header boots (C) on both sides of
the header.
Figure 4.247: Header Boot
CAUTION
To prevent damage to the lift system when lowering
header lift linkages without a header or weight
box attached to the windrower, ensure the float
engagement pin is installed in storage position (B)
and NOT in engaged position (A).
Figure 4.248: Header Float Linkage
147649 267 Revision A
