OPERATION
13. Remove clevis pin fro m storage position (B) in linkage
and insert into hole (A) to engage float springs. Secure
with hairpin.

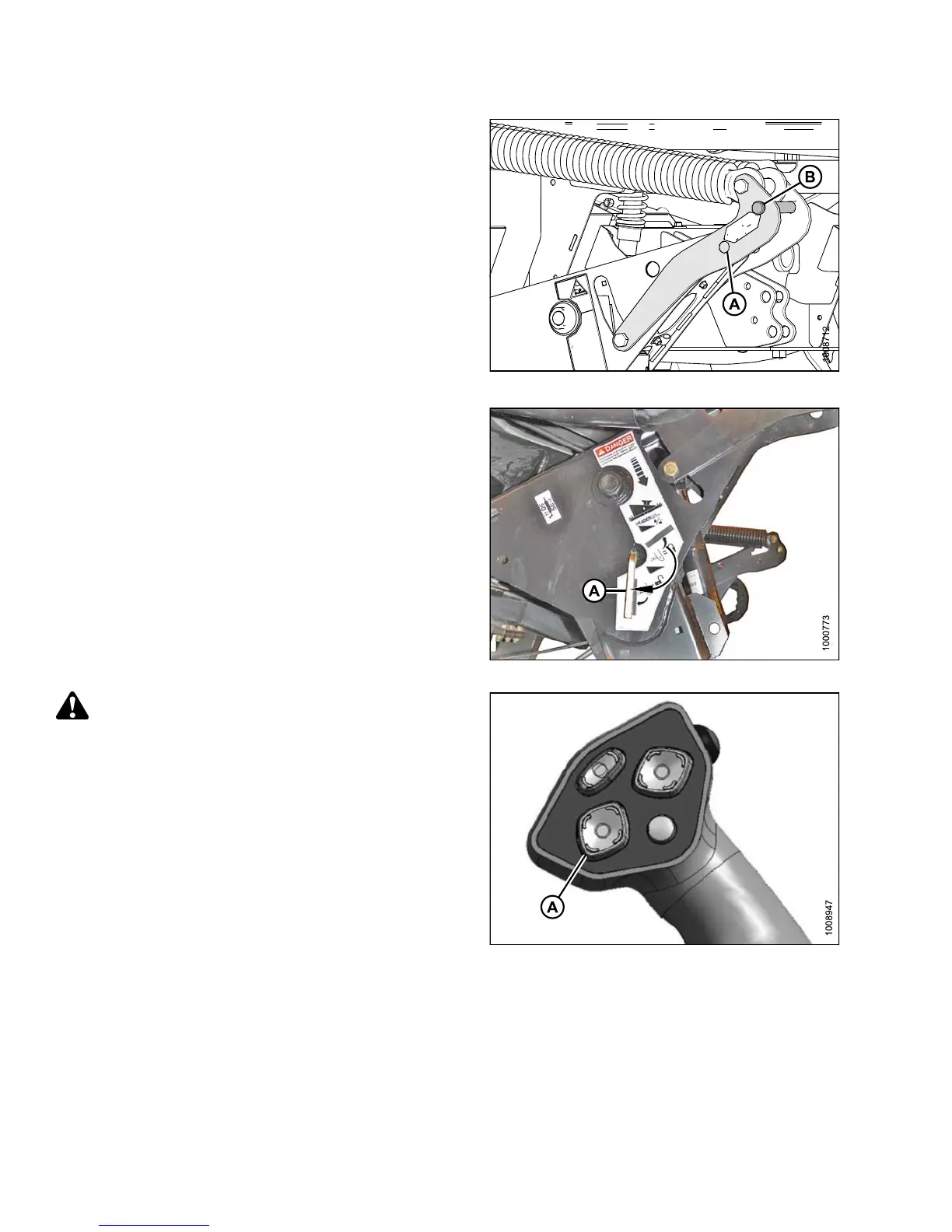

Figure 4.243: Header Float Linkage
14. Disengage safety prop by turning lever (A) downwards
to re lease an d lower s top until lever locks into
vertical position.
15. Repeat for opposite safety prop.
Figure 4.244: Safety Prop
CAUTION
Check to be sure a ll bystanders have cleared the area.
16. Start the engine and activate the header down
switch (A) on the GSL to fully lower the header.
17. Stop engine and remove key from ignition.
Figure 4.245: GSL
