OPERATOR’S STATION
6. Press SELECT (D) until KNIFE SPEED is displayed on
the upper line.
• ENABLED/L O C KED is displayed on the lower line.
7. Press left arrow (B) to enable KNIFE SPEED control
switch, or press right arrow (C) to lock KNIFE SPEED
control switch.
8. Press PROGRAM (A) to exit Programming Mode or
press SELECT (D ) to proceed to next WINDROWER
SETUP action.

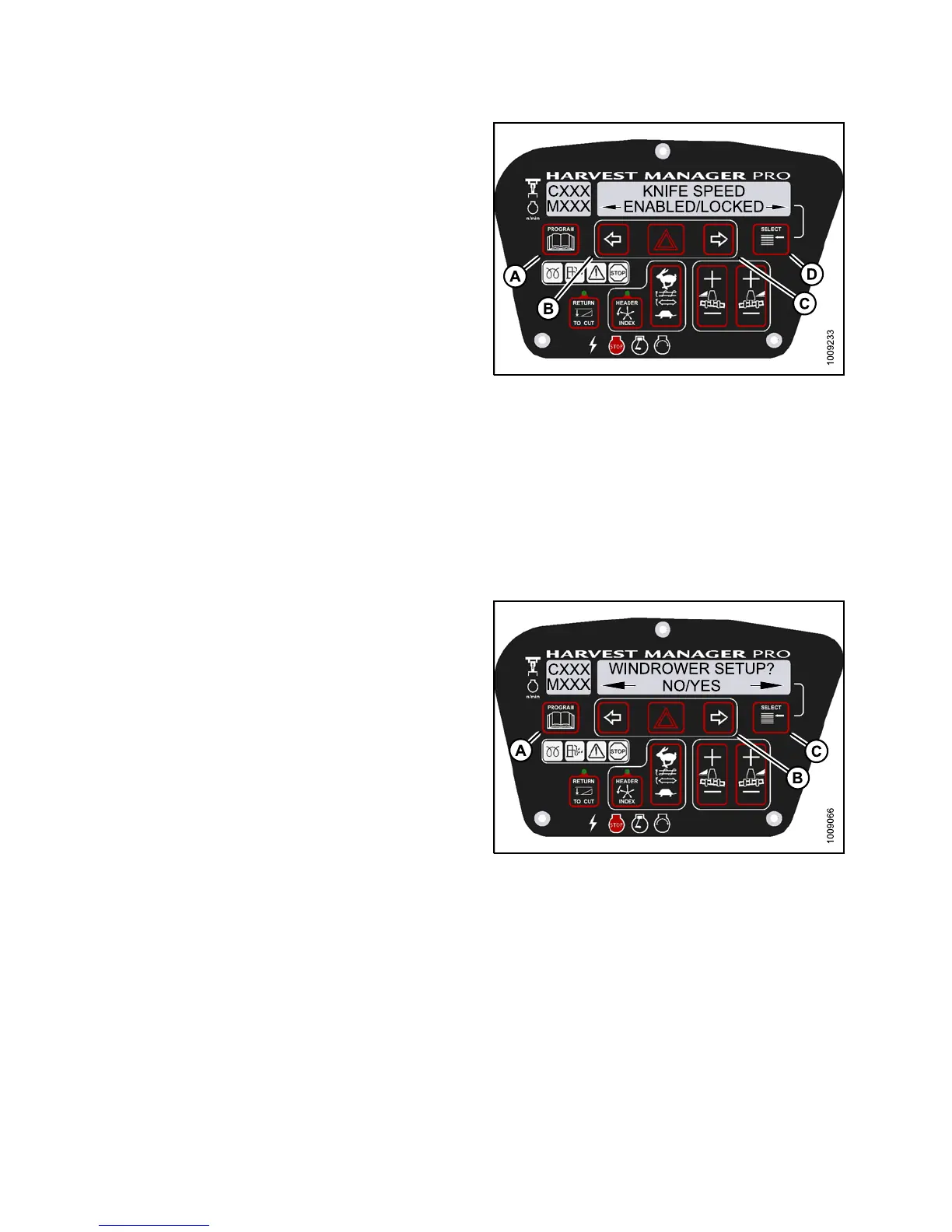

Figure 3.13
3: M155 Knife Speed Control Lock
Activatin
g Rotary Disc Speed Co ntrol Lock Out
NOTE:
• This proce du re is for rotary disc headers only.
• The header MUST be attach ed to the windrower to perform this proce du re. The cab display module (CDM)
automatically adjusts its programming for each header. For more information, refer to 4.5 Attaching and
Detaching Headers, page 213.
1. Turn ignition key to RUN, or start the engine.
2. Press PROGRAM (A) and SELECT (C) on cab display
module (CDM) to enter Programming Mode.
• WINDROWER SETUP? is displayed on the
upper line.
• NO/YES is displayed on the lower line.
3. Press right (B) arrow to select YES. Press SELECT (C).
• SET KNIFE SPEED? is displayed on the upper line.
Figu
re 3.134: M155 CDM Programming Buttons
147649 118 Revision A
