14. Reinstall clevis pin (A) through boot (C) and secure with
hairpin (B). Repeat for opposite side.

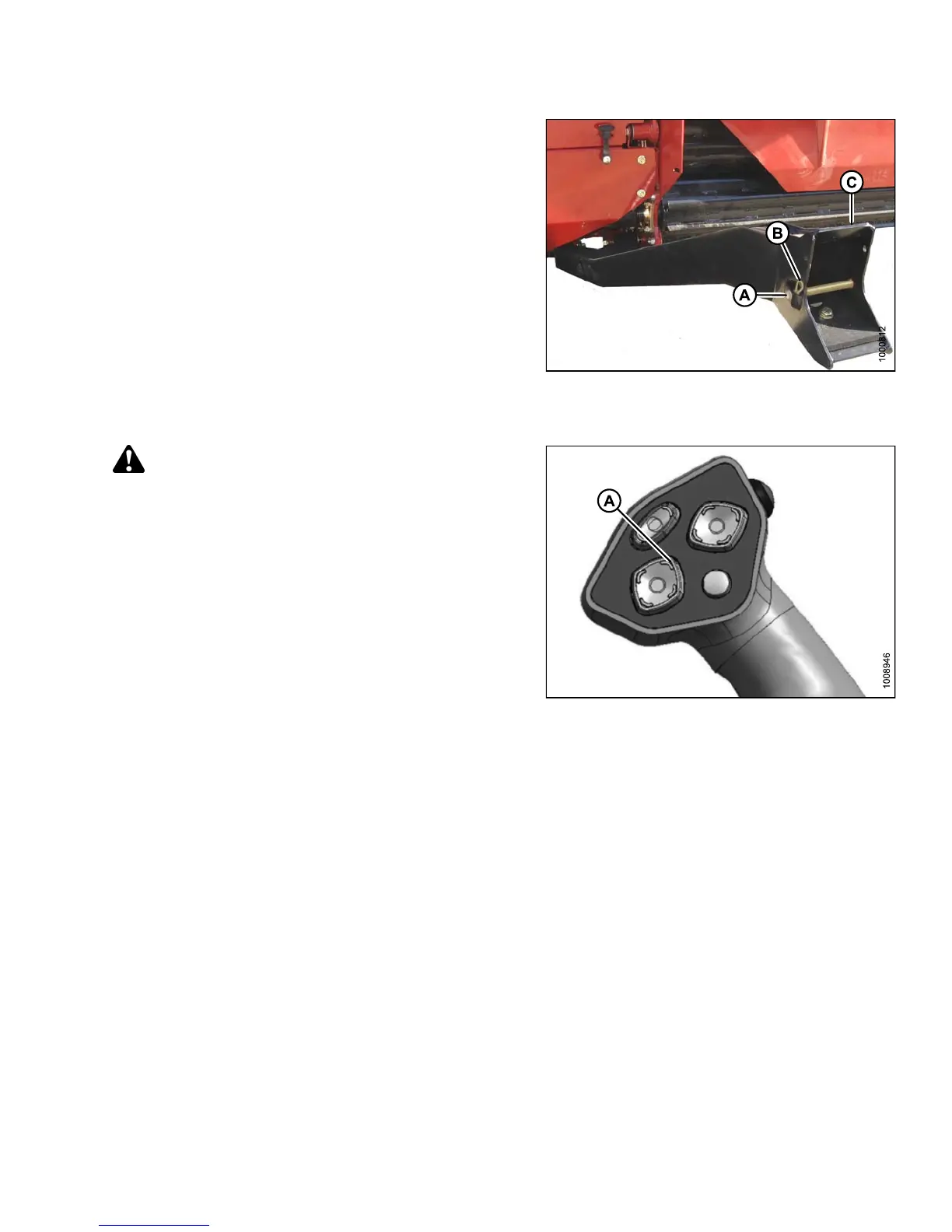

Figure 4.267: Header Boot
Detaching an R-Series Header: Mechan ical Center-Link
DANGER
To avoid bodily injury or death from unexpected
startup of the machine, always stop the engine and
remove the key from the ignition before leaving the
operator’s seat for any reason.
1. Start engine and press header up (A) switch to raise
header to maximum height.
2. Rephase cylinders if one end of the header does not
raise fully. If rephasing is required, proceed as follows:
a. Press and hold the header up (A) switch until both
cylinders stop moving.
b. Continue to hold the switch for 3–4 seconds.
Cylinders are now phased.
Figure 4.268: Ground Speed Lever (GSL)
