OPERATION
9. Activate header tilt up (A) and header tilt down (B)
cylinder switches on GSL to release load on
center-link cylinder.

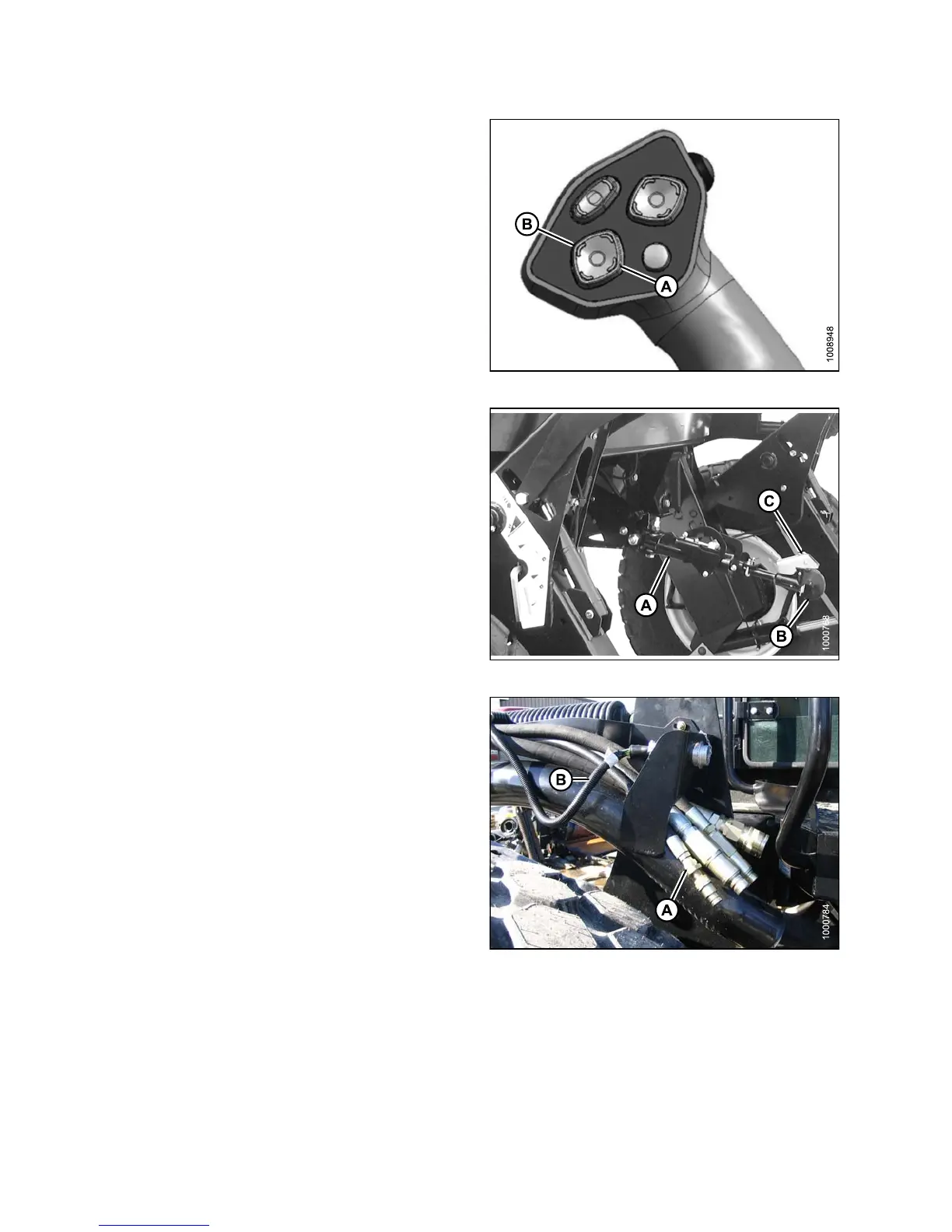

Figure 4.264: GSL
10. Stop engine and remove key from ignition.
11. Lift hook release (C) and lift hook (B) off header pin.
NOTE:
If option al center-link lift cylinder is installed, lift
release (C) and then operate the link lift cylinder
from the cab to disengage the center-link from
the header.
Figure 4.265: Hydraulic Center-Link
12. Disconnect header drive hydraulics (A) and
electrical harness (B). Refer to the R-Series Header
Operator’s Manual.
13. Back windrower slowly away from header.
Figure 4.266: Header Drive Hydraulics
