OPERATION

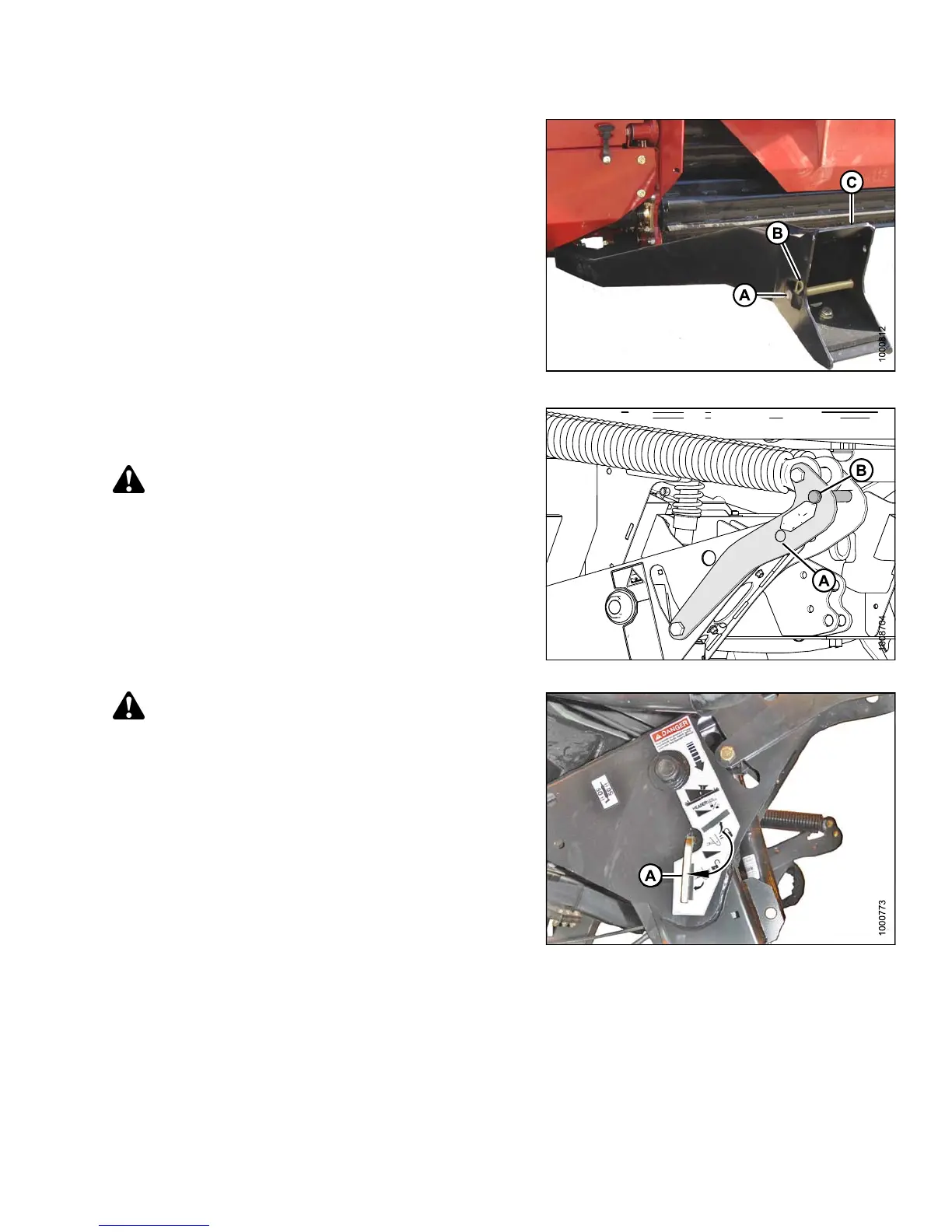

5. Remove hairpin from clevis pin (A) a nd remove clevis
pin from header boot (B) on both sides of header.
Figure 4.261: Header Boots
6. Remove clevis pin from location (A) to disengage
float spring s and insert into stora ge hole (B). Secure
with hairpin.
CAUTION
To prevent damage to the lift system when lowering
header lift linkages without a header or weight
box attached to the windrower, ensure the float
engagement pin is installed in storage position (B)
and NOT in engaged position (A).
Figure 4.262: Header Float Linkage
CAUTION
Check to be sure all bystanders have cleared the area.
7. Disengage safety props by turning lever (A) away from
header to raise safety prop until lever locks into vertical
position. Repeat for opposite cylinder.
8. Start engine, choose a level area, and lower header to
the ground.
Figure 4.263: Safety Props
147649 273 Revision A
