OPERATION
Setting the Reel Only Speed

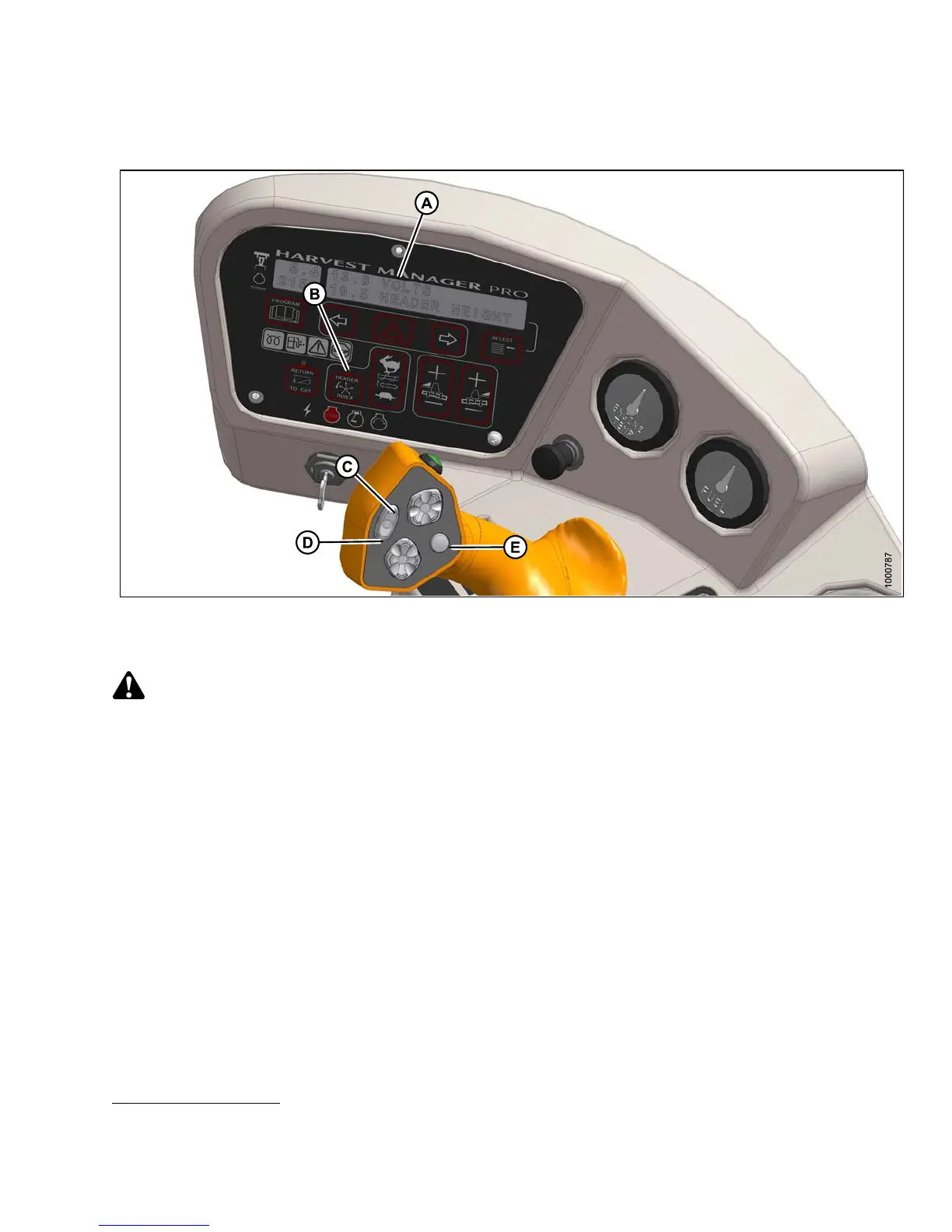

Figure 4 .286: Operator Console
A-Displ
ay
B - Heade
r Index
C - Reel Fast
D - Reel Slow E - D isplay Selector
CAUTION
Check to be sure all by stan d e rs have cleared the area.
Set the speed of the reel independently of ground speed as follows while operating the windrower:
NOTE:
This procedure is similar to changing the draper speed “on the go” with the draper speed control switch. Refer to
Setting Draper Speed Independent of Ground Speed, page 288. These changes become the new set-points.
1. Set HEADER INDEX (B) to OFF.
2. Press REEL FAST (C) or REEL SLOW (D) on th e ground speed lever (GSL) until display (A) shows
##.## REEL MPH with desired reel speed.
The displayed value (##.##) = reel speed (rpm or mph or km/h
19
)
19. Depending on CDM programming.
147649 285 Revision A
