MacDon M155 - Setting the Hydraulic Overload Pressure

OPERATOR’S STATION
4. Press left (B) or right (C) arrows to select knife speed.
Press SELECT (D).
5. Press PROGRAM (A) to exit Programming Mode or
press SELECT (D ) to proceed to next WINDROWER
SETUP action.

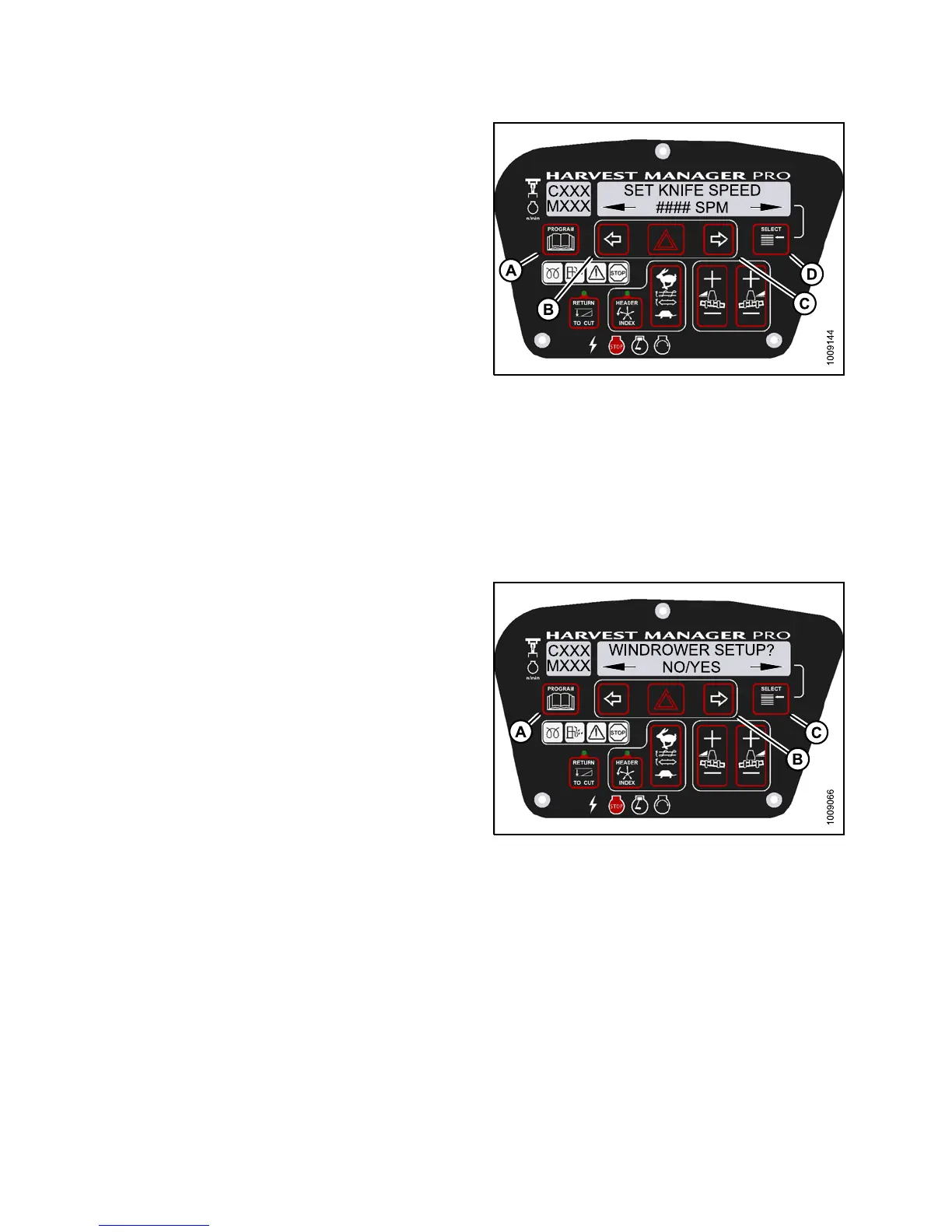

Figure 3.10
6: M155 Knife Speed
Setting th
e Hydraulic Overload Pressure
NOTE:
• This procedure requires installation of the optional pressure sensor (MD #B5574). For overload pressure values,
refer to pressure sensor installation instructions (MD #169031).
• To enable sensor, refer to Switching the Installed Header Sensors On or Off, page 131.
1. Turn ignition key to RUN, or start the engine.
2. Press PROGRAM (A) and SELECT (C) on cab display
module (CDM) to enter Programming Mode.
• WINDROWER SETUP? is displayed on the
upper line.
• NO/YES is displayed on the lower line.
3. Press right (B) arrow to select YES. Press SELECT (C).
• SET KNIFE SPEED? is displayed.
Figur
e 3.107: M155 CDM Programming Buttons
147649 106 Revision A
