MacDon M155 - Double Windrowing; Double Windrow Attachment (DWA) Deck Position

OPERATION
4.4.10 Double Windrowing
The double w in
drow attachment (DWA) deposits two windrows of conditioned material close together to be
picked up by a f
orage chopper.
The system is f
or use w ith the A-Series Auger Header,
R-Series Rot
ary Disc Header, and D65 Draper Header with
HC10 Hay Cond
itioner.
The conditio
ned crop is deposited onto the side delivery
system drape
r and delivered to the side of the windrower
when requir
ed.
Raising the
side delivery system shut s off th e drape r and
allows the c
rop to be deposit ed between t he windrower
wheels as it
would be without the side delivery system.
Refer to M a
cDon M-Series Windrower Double Windrow
Attachmen
t Manual (MD #169216) for complete operating
and m ainte
nance instructions. The manual is shipped with
the D WA kit
.

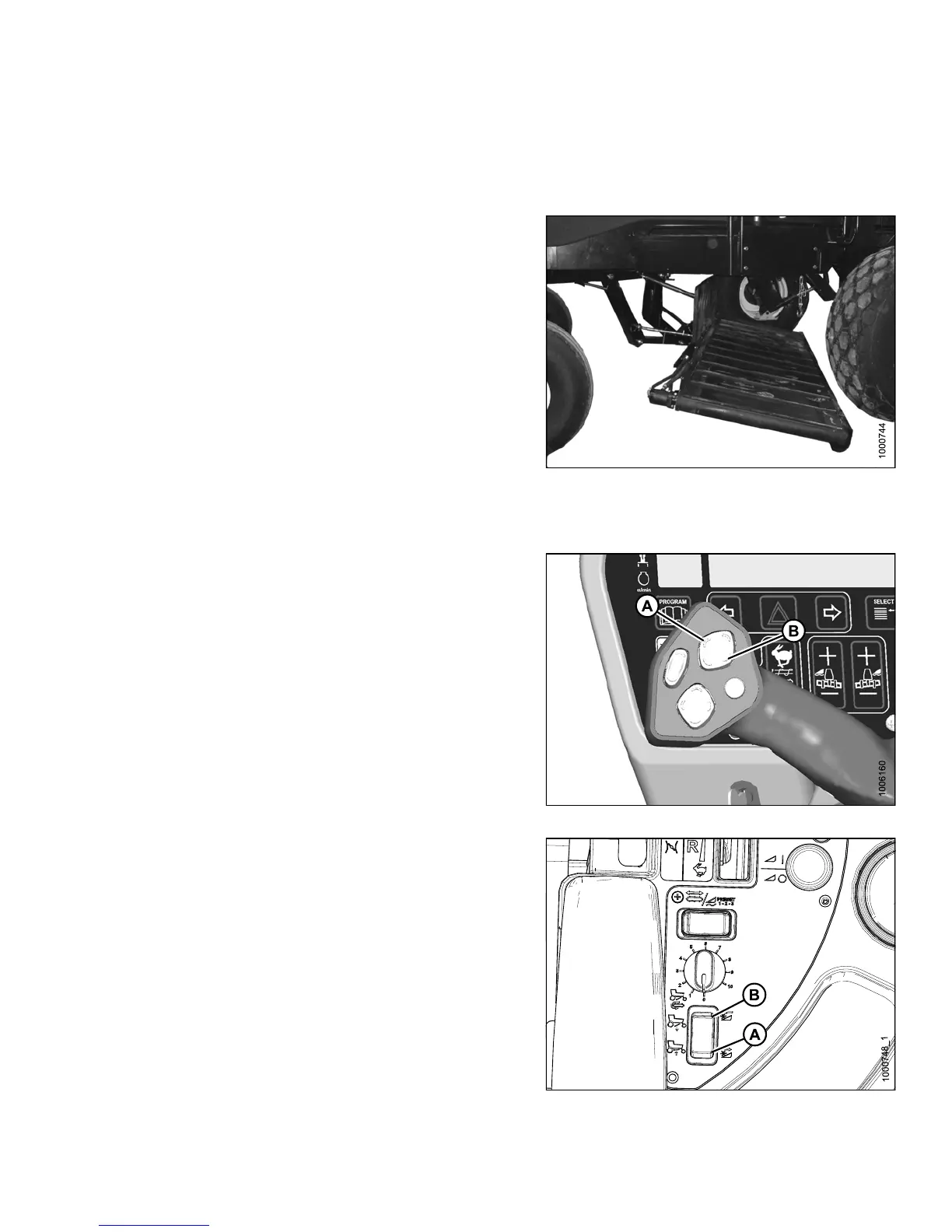

Figure 4.102: DWA
Double Windrow Attachmen t (DWA) Deck Position
ThedeckisraisedandloweredwiththeDWAUP(A)
and DWA DOWN (B) switches on the ground speed
lever (GSL) or with the rocker switch on the operator ’s
console, depending on how the windrower cab display
module (CDM) is programmed during the installation of
the double windrow attachment (DWA).
To swap controls from the console to the G SL, refer to
Activating the Double Windrower Attachment (DWA), page
110.
NOTE:
Thesameswitchisusedforraisingandloweringaswath
roller (if installe d).
Figure 4.103: Ground Speed Lever (GSL)
Figure 4.104: Operator’s Console
147649
2
11
Revision A
