OPERATOR’S STATION
3.19.9 Activa
ting Cab Display Lock Outs
You can lock some of the header functions controlled by the cab display module (CDM) to prevent accidental
changes to header settings. You can use this feature to k eep header settings constant when several different
operators use the windrower.
NOTE:
FUNCTION LOCKED flashes on CDM when locked header function switch is pressed.
Activating
Knife Speed Control Lock Out
NOTE:
The header MUST be attached to the windrower to perform this procedure. The cab display m odule (CDM)
automatically adjusts its programming for each header. For more information, refer to 4.5 Attaching and
Detaching Headers, page 213.
1. Turn ignition key to RUN , or start the eng ine.
2. Press PROGRAM (A) and SELECT (C) on cab display
module (CDM) to enter Programming Mode.
• WINDROWER SETUP? is displayed on the
upper line.
• NO/YES is displayed on the lower line .
3. Press right (B) arrow to select YES. Press SELECT (C).
• SET KNIFE SPEED? is displayed on the upper line.

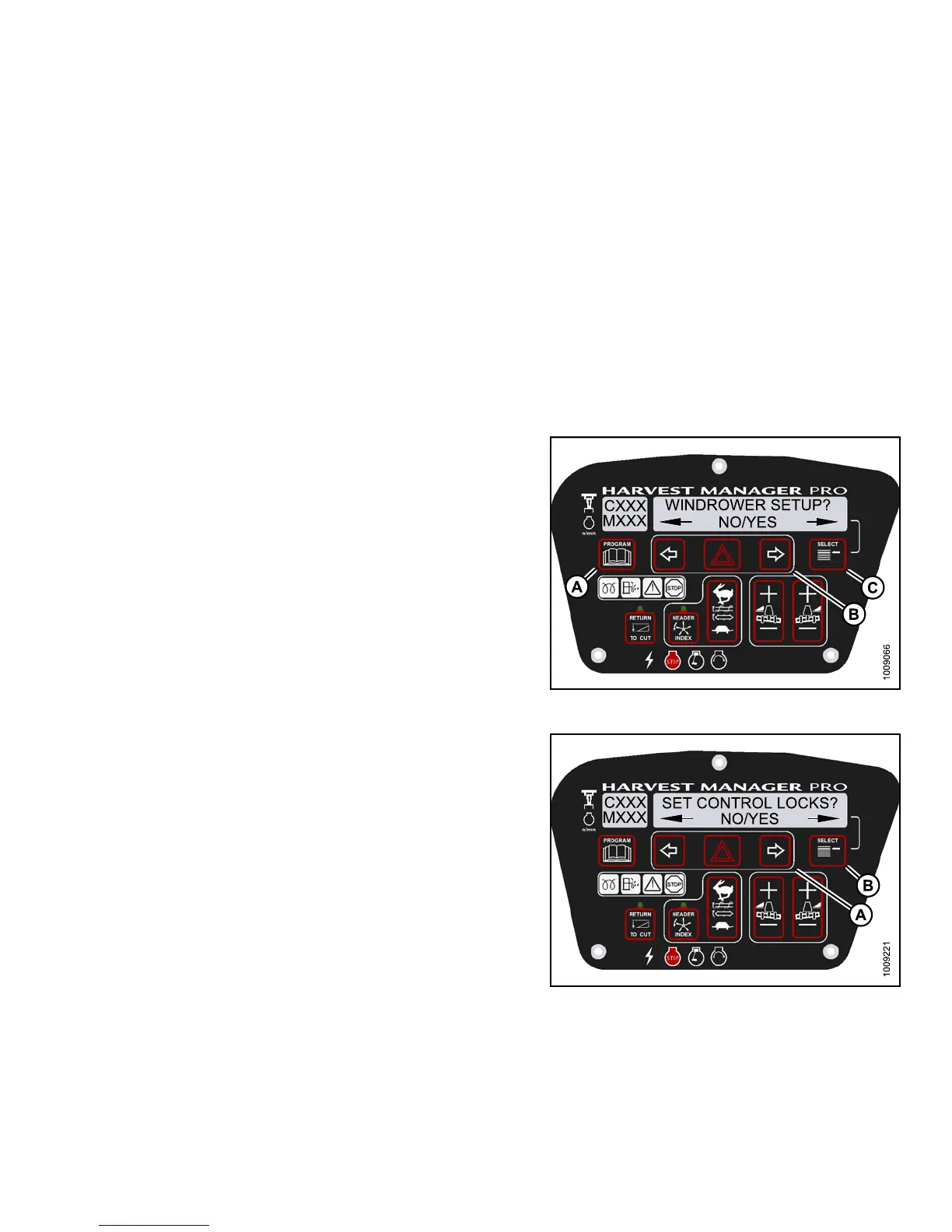

Figure
3.131: M155 CDM Programming Buttons
4. Press SELECT (B) until SET CONTROL LOCK S? is
displayed on the upper line.
• NO/YES is displayed on the lower line .
5. Press right (A) arrow to select YES. Press SELECT (B).
Figure 3.132: M155 Control Locks
