OPERATION
Attaching a D-Series Header: Me chanical Center-Link
NOTE:
Draper header boots must be installed onto the windrower lift linkage before starting this procedure. Refer to
Attaching Header Boots, page 213.
DANGER
To avoid bodily injury or death from unexpected startup of the machine, always stop the engine and remove
the key from the ignition before leaving the operator ’s seat for any reason.
1. Remove hairpin (A) from pins (B), and remove pins
from both header legs.

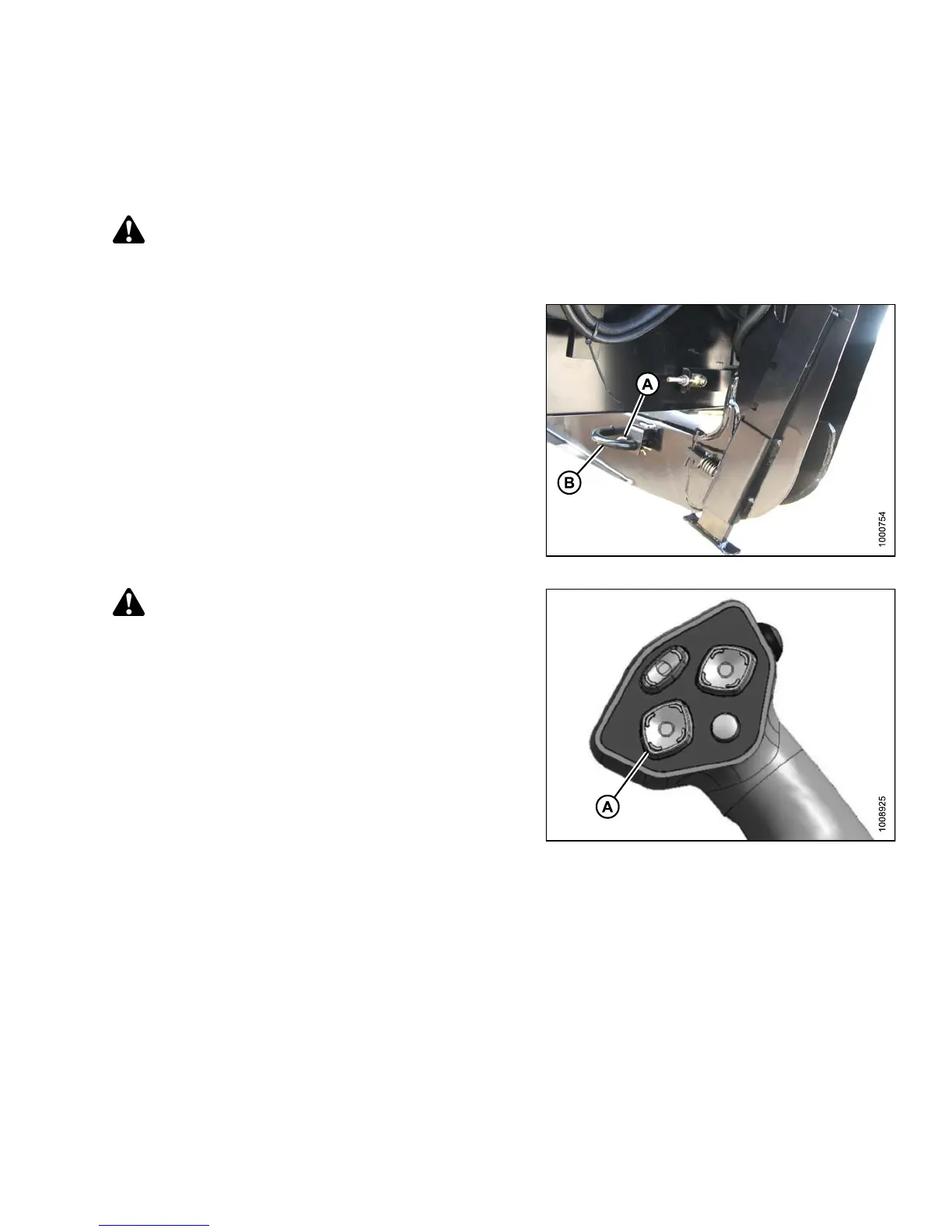

Figure 4.139: Header Leg
CAUTION
Check to be sure all bystanders have cleared the area.
IMPORTAN T:
Remove prot
ective cover from exhaust stack prior to
starting en
gine.
2. Start the engine and activate the header down
button (A) on the ground speed lever (GSL) to fully
retract header lift cylinders.
Figure 4.140: GSL
147649 225 Revision A
