OPERATION
CAUTION
Check to be sure a ll bystanders have cleared the area.

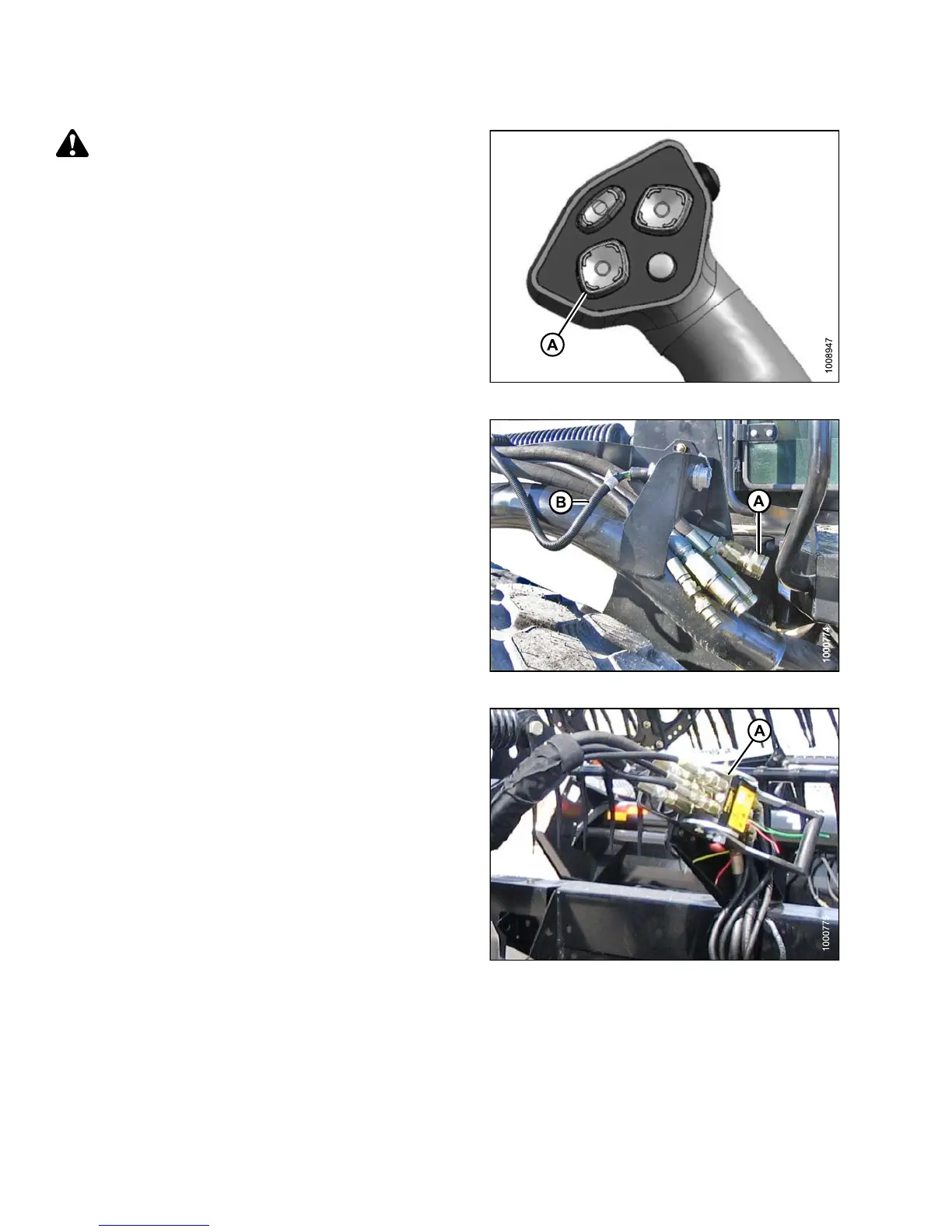

18. Start the engine and activate the header down
switch (A) on the GSL to fully lower the header.
19. Stop engine and remove key from ignition.
Figure 4.136: GSL
20. Connect he
ader drive hoses (A) and electrical
harness (B
) to header. Refer to the draper header
operator
’s manual.
Figure 4.137: Header Drive H oses and Harness
21. Connec
t reel hydraulics (A) at right cab-forward
side of
windrower. Refer to the draper header
opera
tor’s manual.
Figure 4.138: Reel Hydraulics
147649
2
24
Revision A
